Transfer Case Control Component Views

Fig 1: Instrument Carrier Support, Lower Left Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Shift Control Module
2	Instrument Carrier Support, Left Side

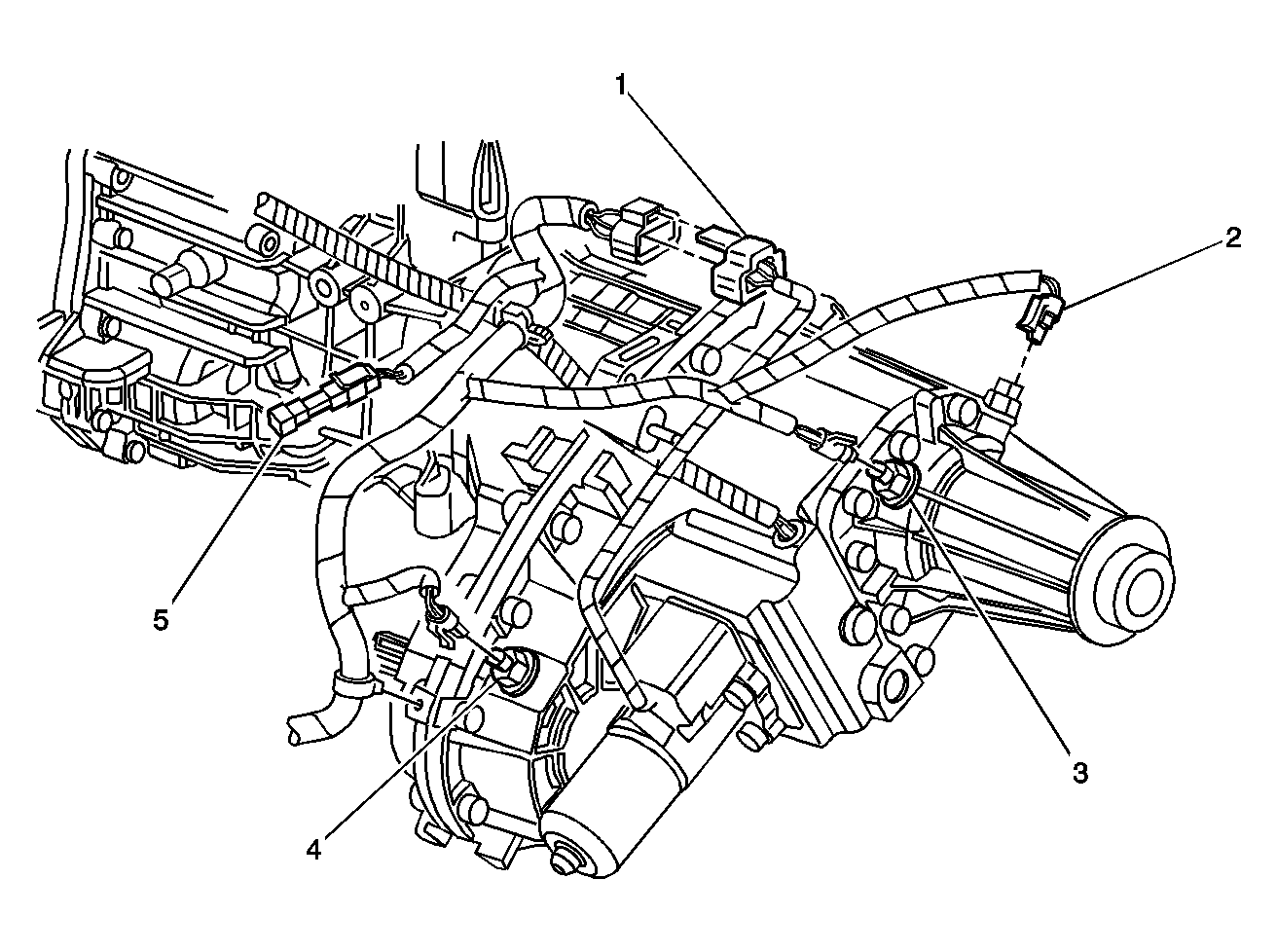

Fig 2: Transfer Case Electrical Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transfer Case Encoder Motor
2	Propshaft Speed Sensor - Rear
3	Vehicle Speed Sensor (VSS)
4	Propshaft Speed Sensor - Front
5	C310
