Power Seat Systems Component Views

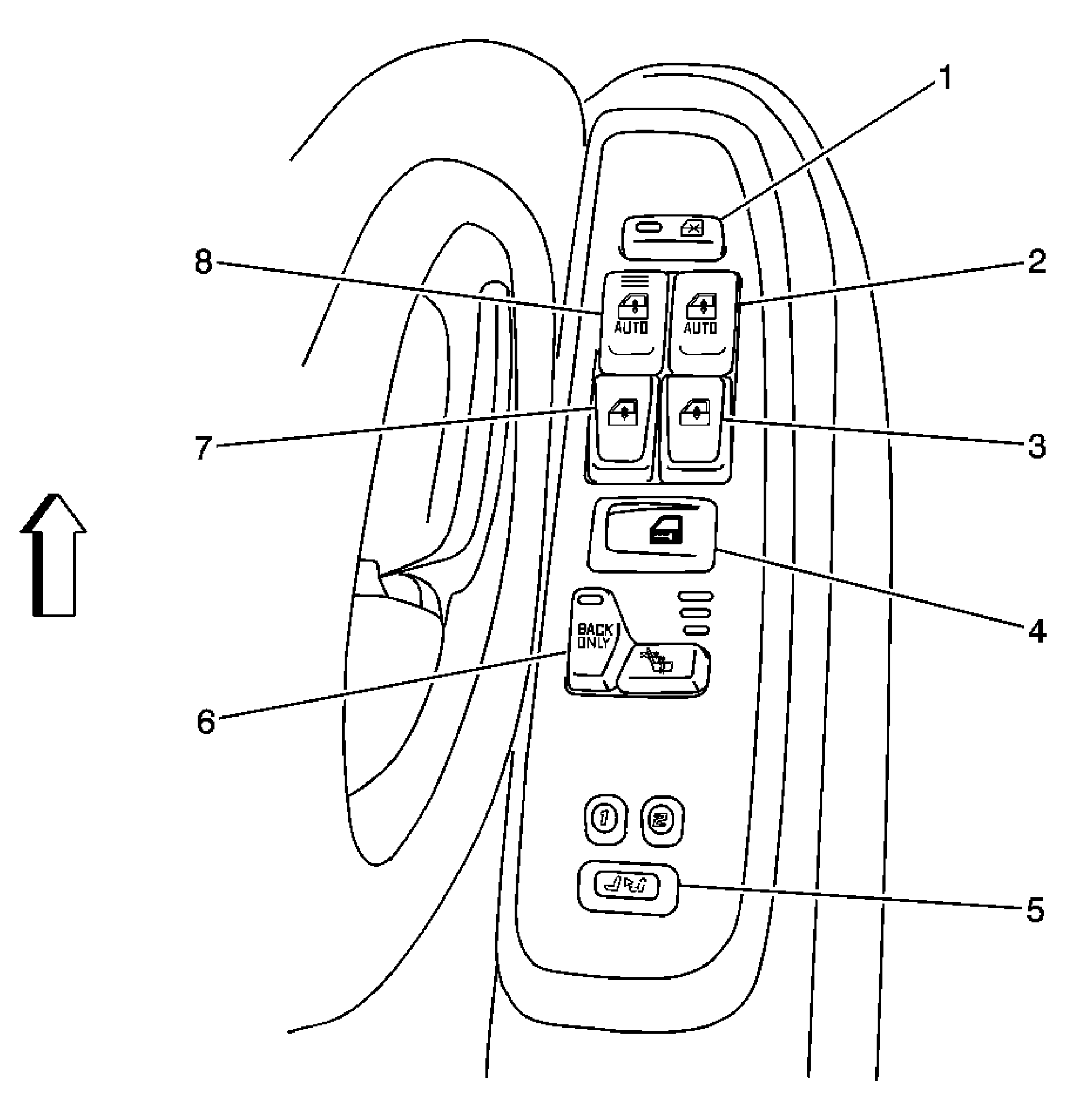

Fig 1: Driver Door Module (DDM)

GM1550864

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Lockout Switch
2	Passenger Window Switch
3	Right Rear Window Switch
4	Door Lock Switch - Driver
5	Memory Seat Switch - Driver
6	Heated Seat Switch - Driver
7	Left Rear Window Switch
8	Driver Window Switch

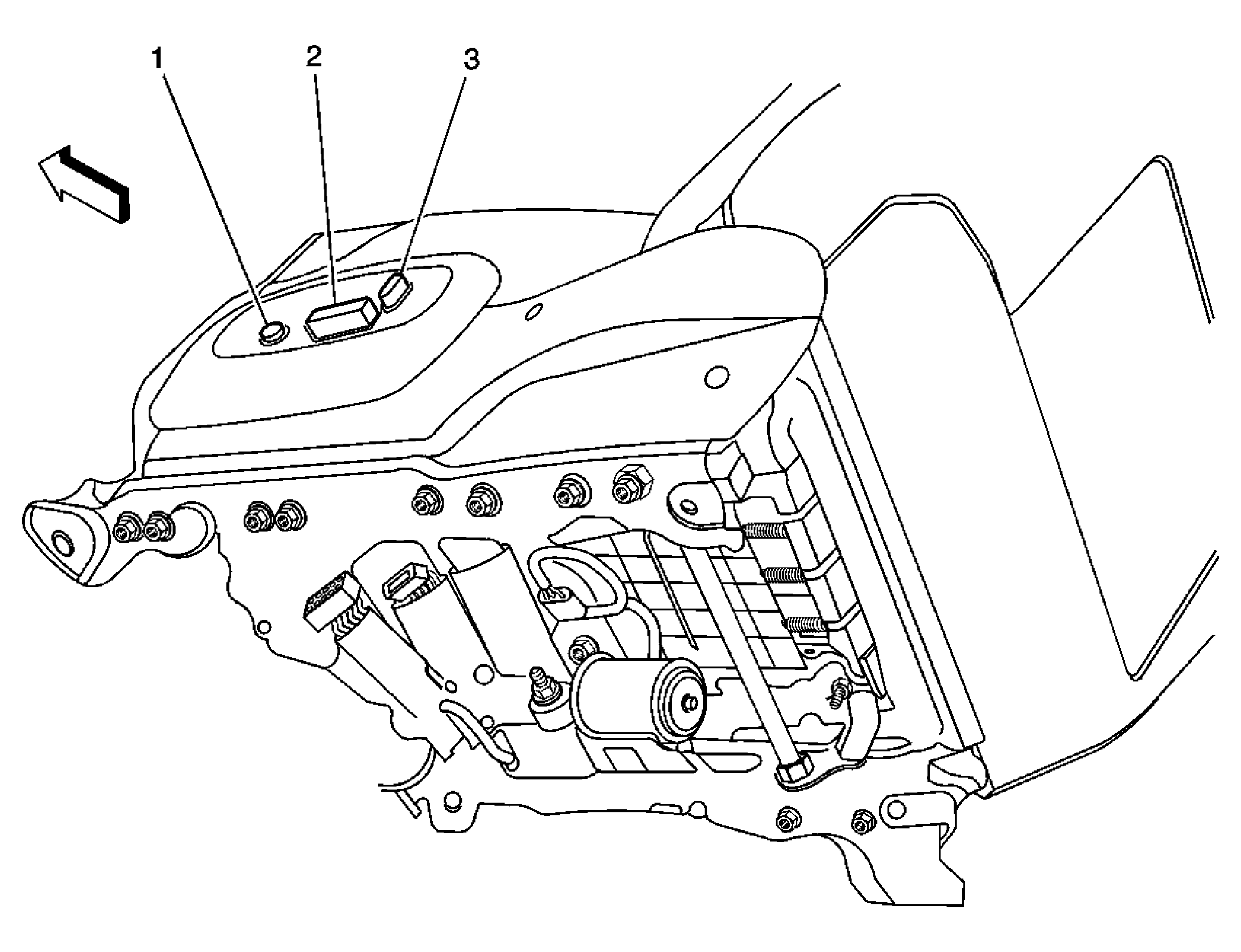

Fig 2: Driver Seat Switches

GM1551565

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Adjuster Switch - Driver
2	Seat Adjuster Switch - Driver
3	Seat Recliner Switch - Driver

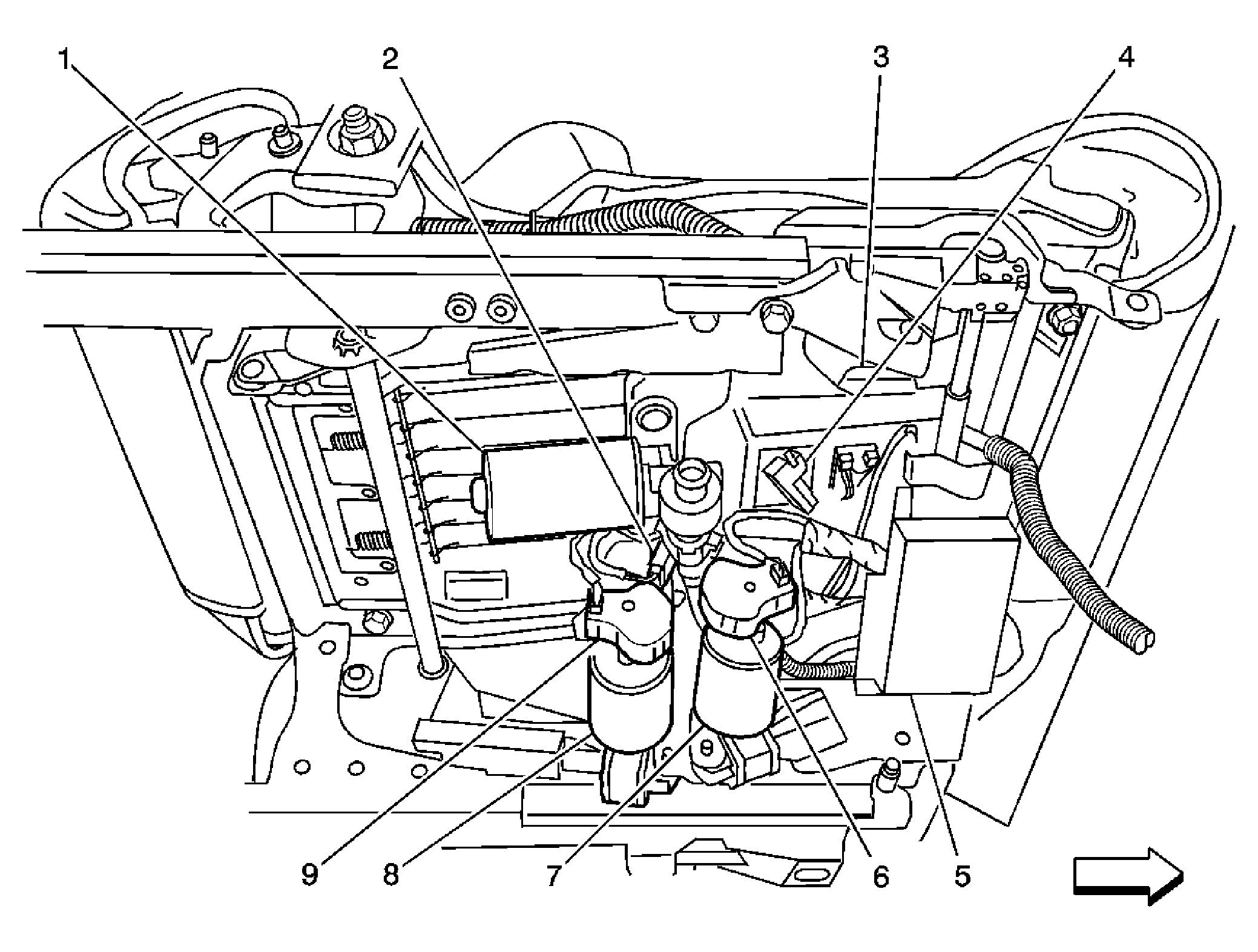

Fig 3: Under Driver Seat

GM1551333

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Recline Motor - Driver
2	Seat Position Sensor - Recline
3	Inflatable Restraint Seat Position Sensor (SPS) - Left
4	Seat Position Sensor - Horizontal
5	Seat Horizontal Motor - Driver
6	Seat Position Sensor - Front
7	Seat Front Vertical Motor - Driver
8	Seat Rear Vertical Motor - Driver
9	Seat Position Sensor - Rear

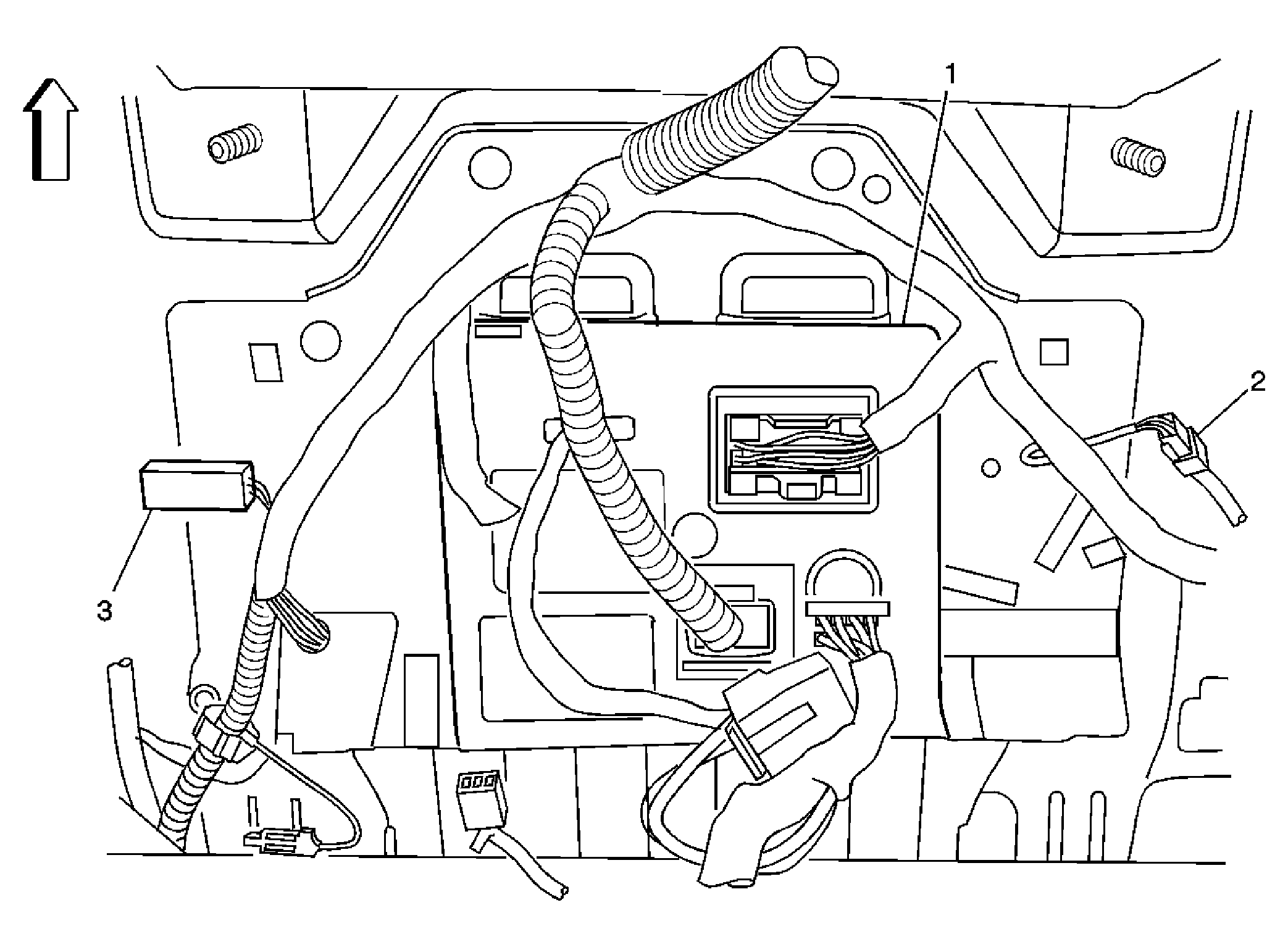

Fig 4: Beneath Driver Seat Cushion

GM1551334

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Memory Seat Module - Driver
2	Heated Seat Element Connector - Driver Cushion
3	Seat Belt Switch Connector - Driver

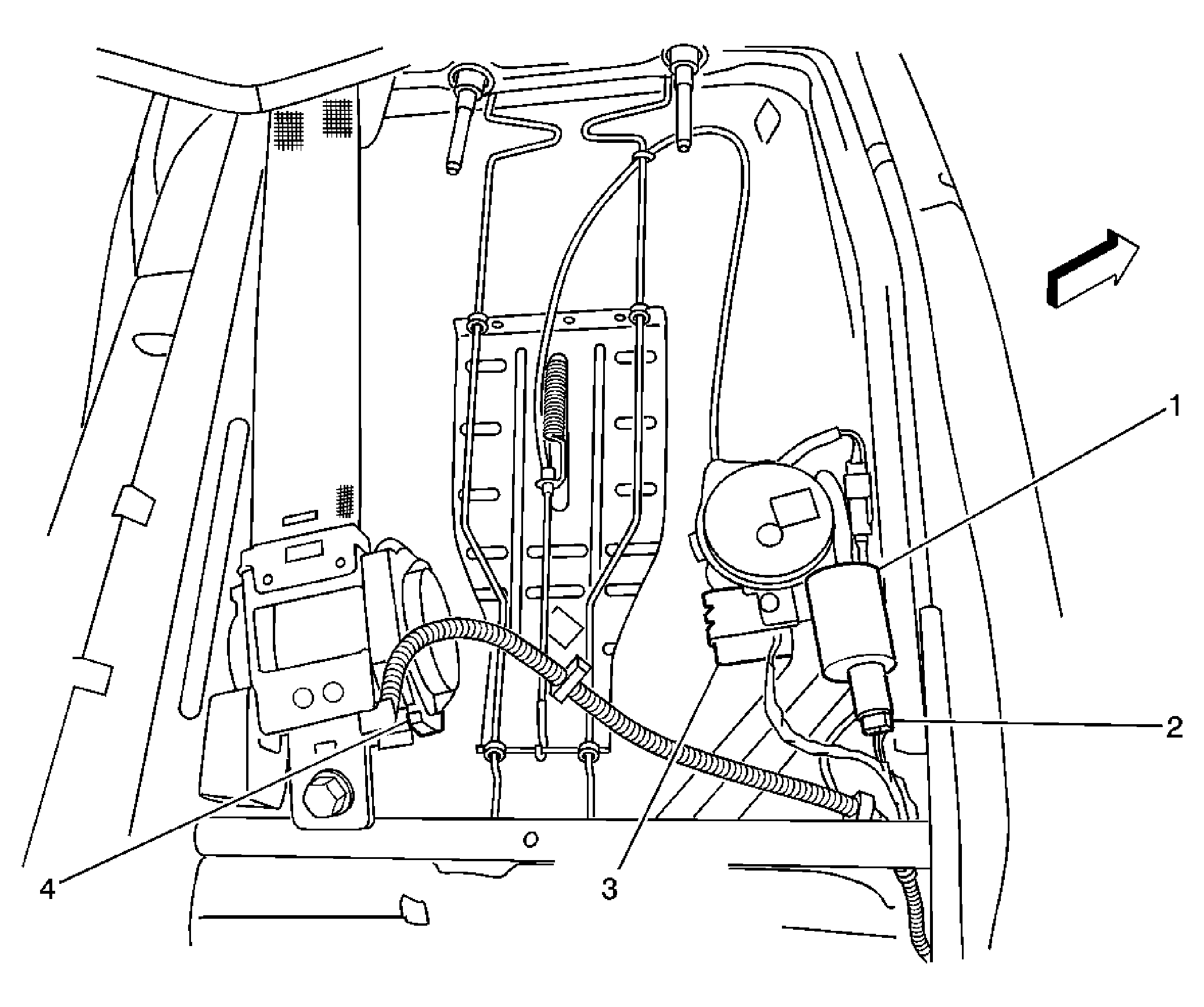

Fig 5: Behind Driver Seat

GM1551335

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Horizontal Motor - Driver
2	Heated Seat Element Connector - Driver Back
3	Lumbar Horizontal Position Sensor - Driver
4	Seat Belt Pretensioner - Left

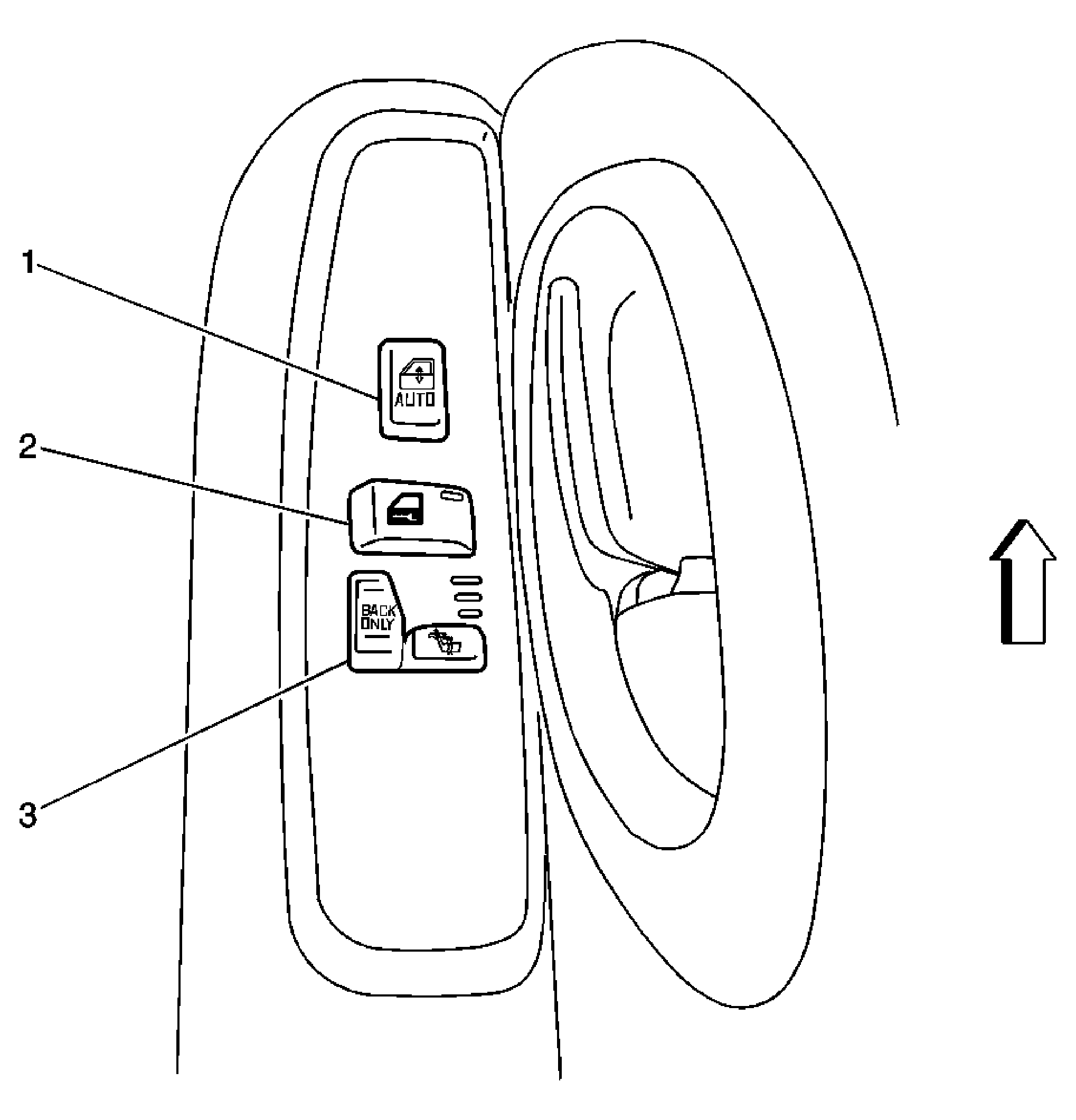

Fig 6: Front Passenger Door Module (FPDM)

GM1551319

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - Passenger
2	Door Lock switch - Passenger
3	Heated Seat Switch - Passenger

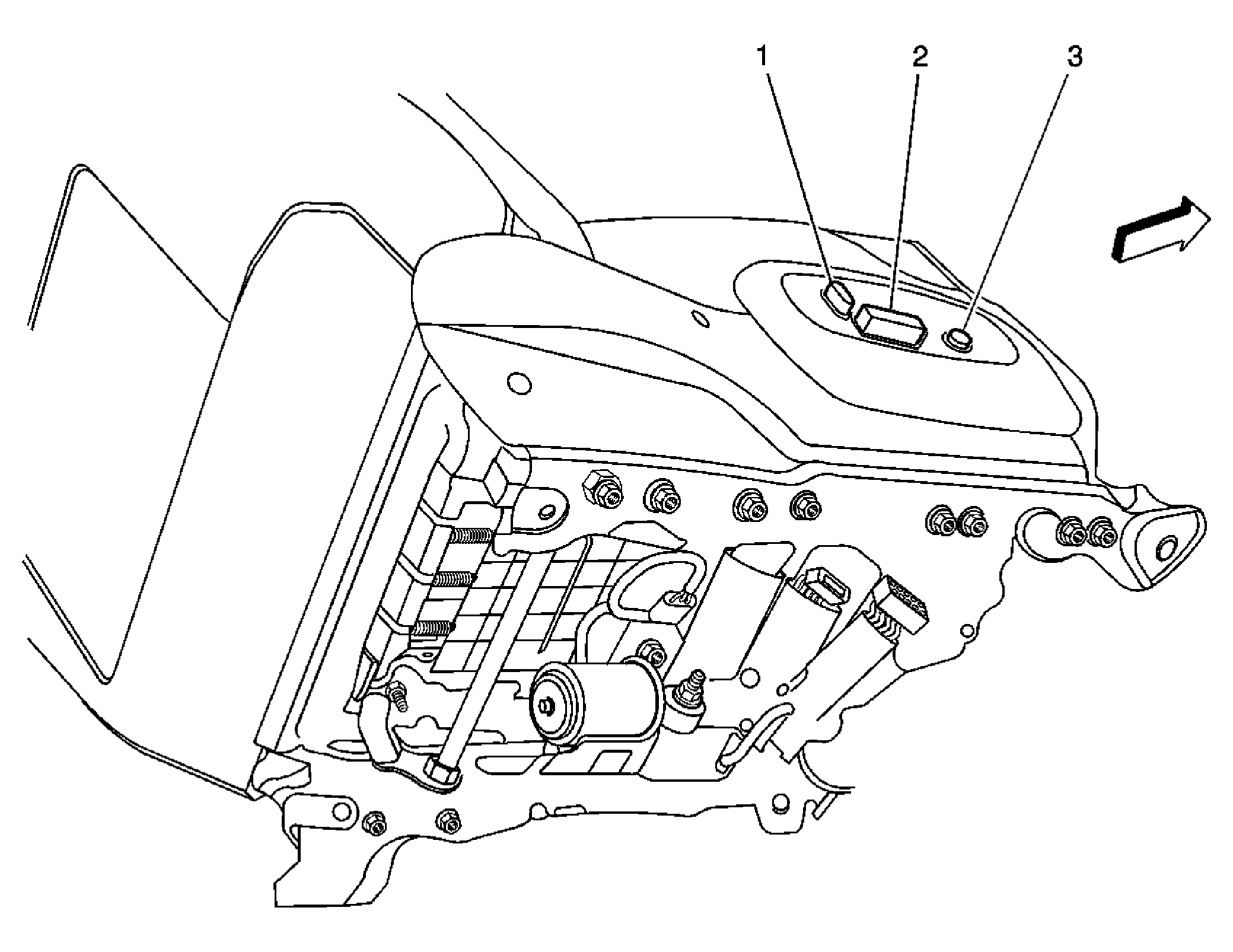

Fig 7: Passenger Seat Switches

GM1551615

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Recliner Switch - Passenger
2	Seat Adjuster Switch - Passenger
3	Lumbar Adjuster Switch - Passenger

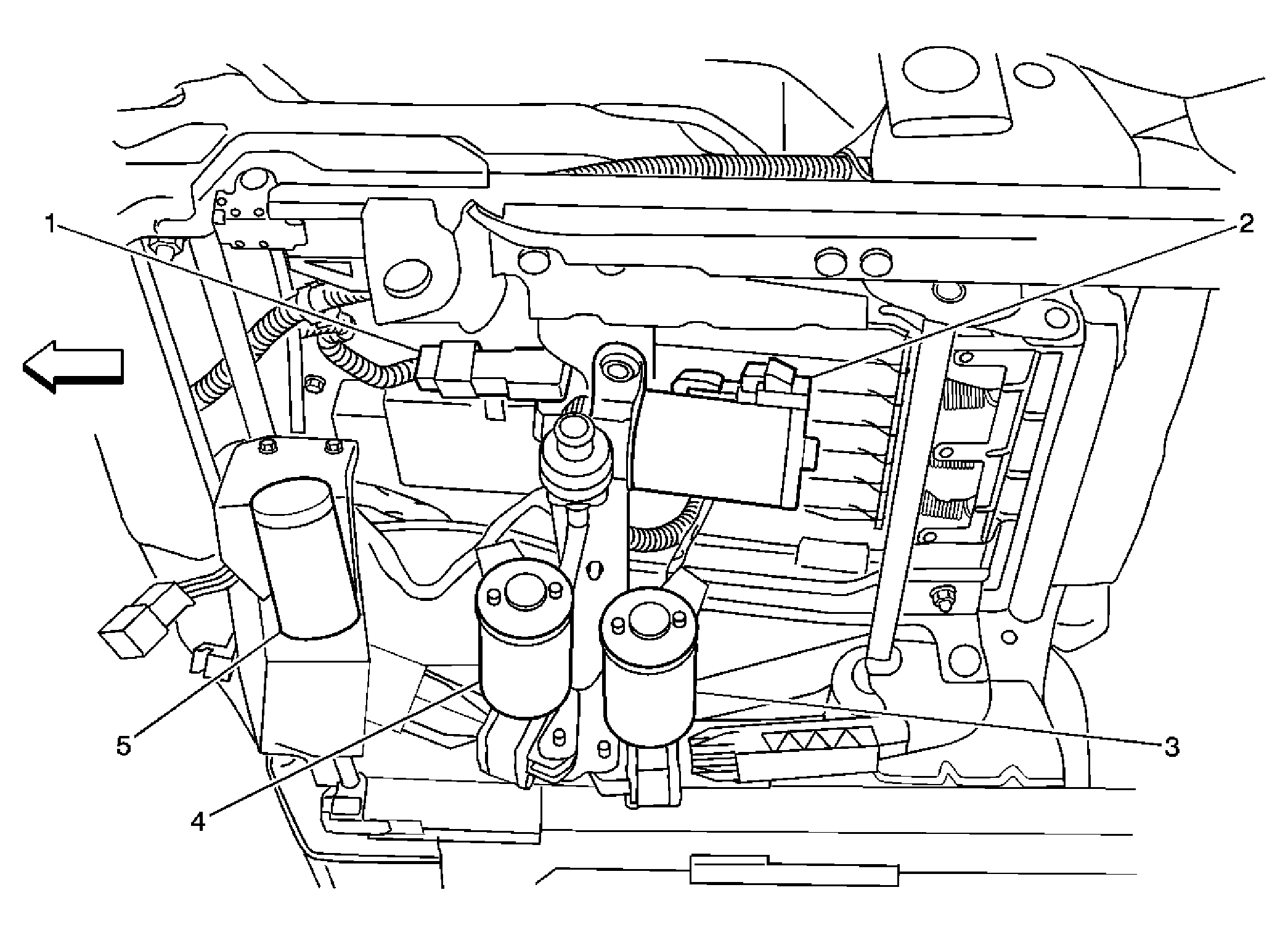

Fig 8: Under Passenger Seat

GM1551336

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Seat Position Sensor (SPS) - Right
2	Seat Recline Motor - Passenger
3	Seat Front Vertical Motor - Passenger
4	Seat Rear Vertical Motor - Passenger
5	Seat Horizontal Motor - Passenger

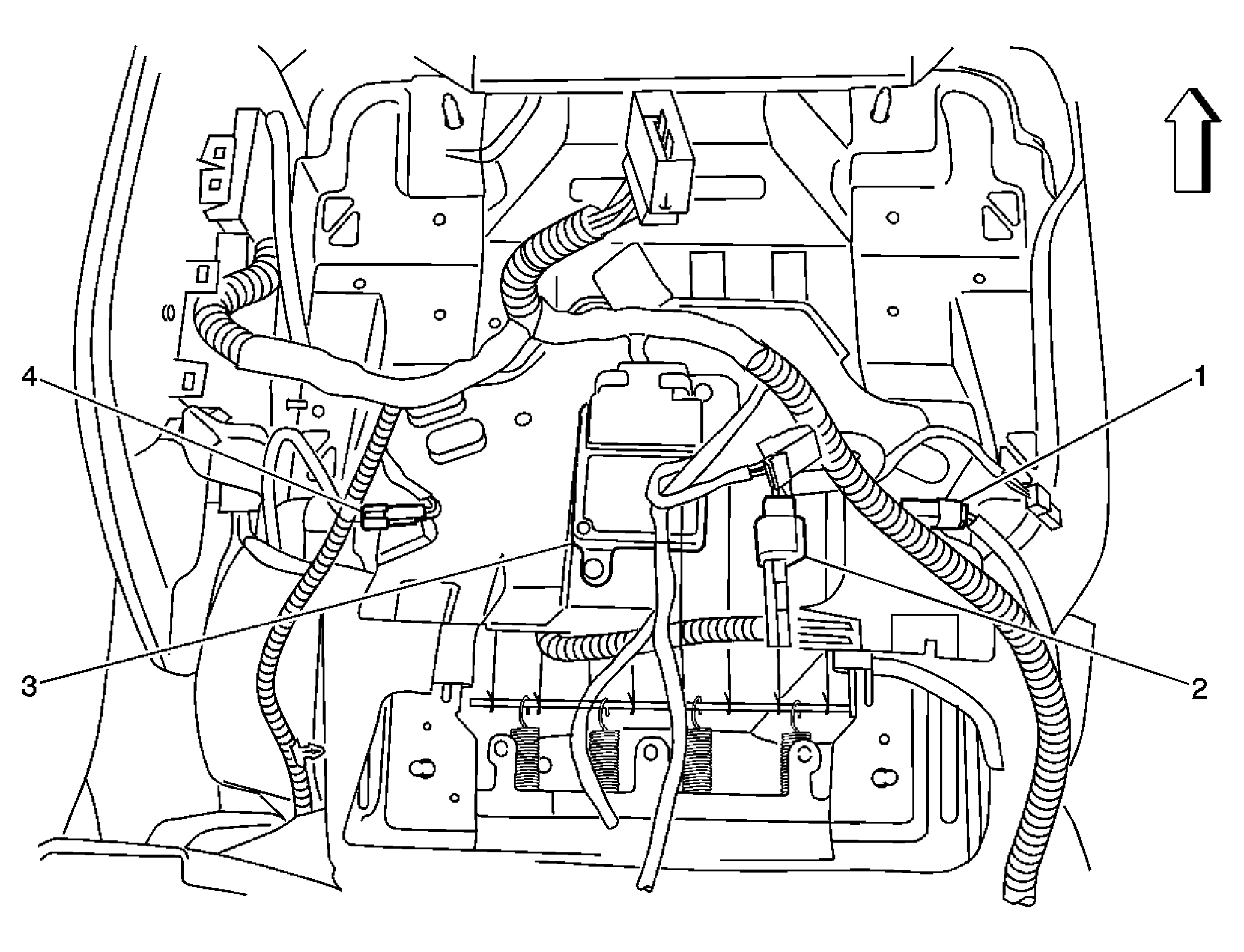

Fig 9: Beneath Passenger Seat Cushion

GM1551338

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Seat Belt Switch Connector - Passenger
2	Inflatable Restraint Front Passenger Presence System (PPS) Sensor
3	Inflatable Restraint Front Passenger Presence System (PPS) Module
4	Heated Seat Element Connector - Passenger Cushion

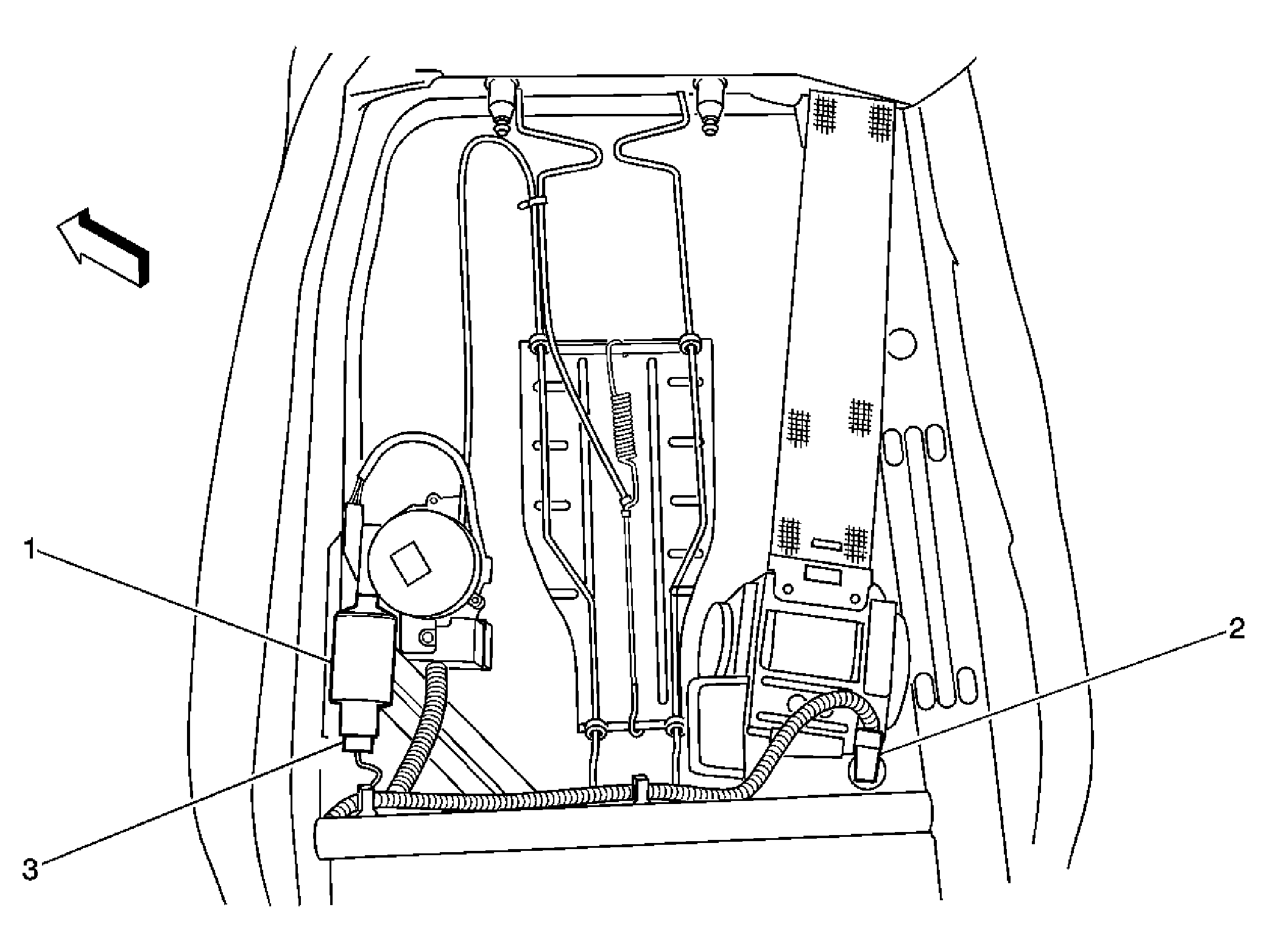

Fig 10: Behind Passenger Seat

GM1551340

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lumbar Horizontal Motor - Passenger
2	Seat Belt Pretensioner - Right
3	Heated Seat Element Connector - Passenger Back
