Installation Procedure

    Fig 1: Removing/Installing Side Window Switch & Electrical Connector
    GM750778Courtesy of GENERAL MOTORS CORP.
  1. Position the memory seat switch to the lock and door lock and side window switch (1).
  2. Connect the electrical connector (2) to the memory seat switch.

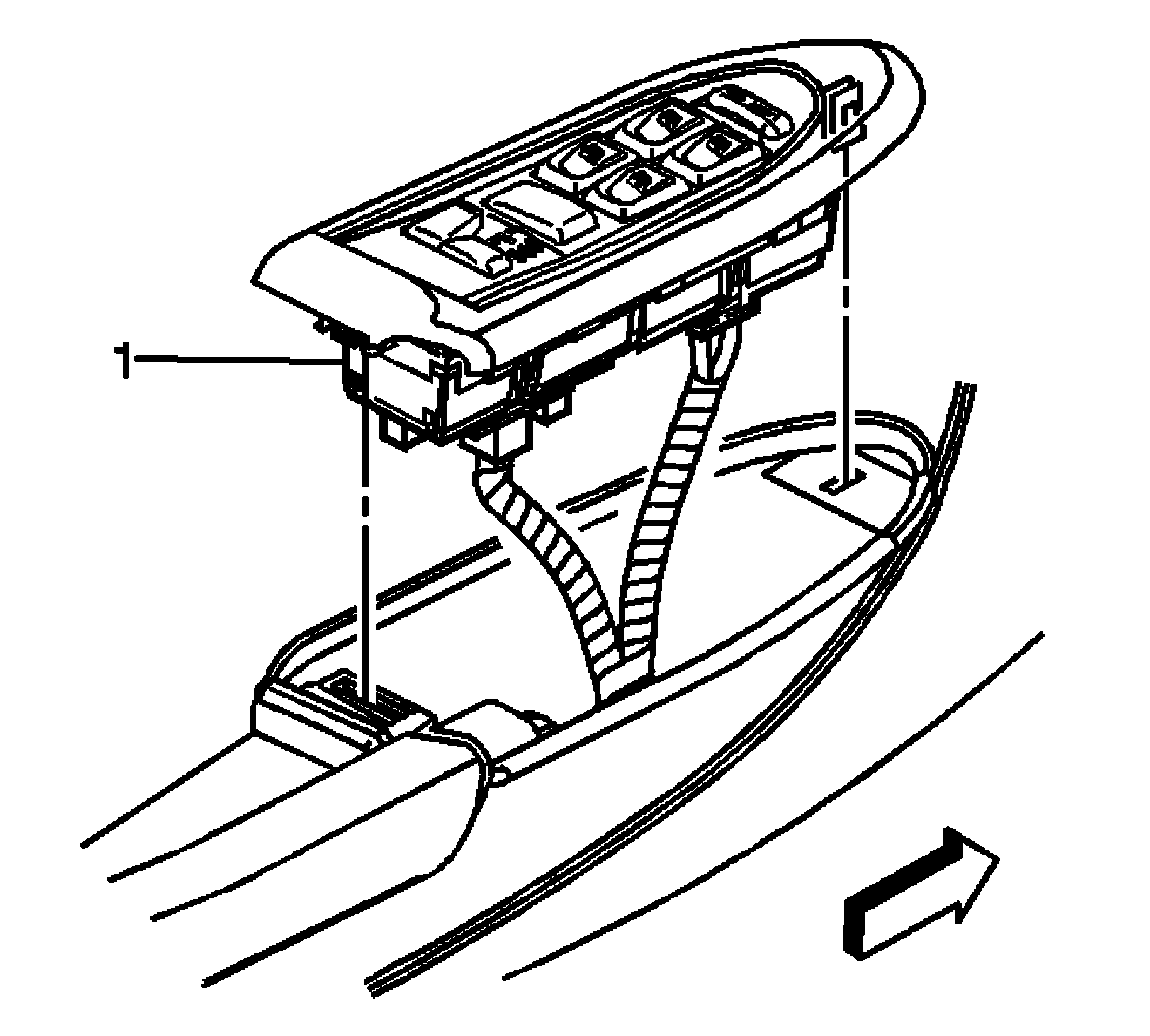

    3. Fig 2: Removing/Installing Door Lock & Side Window Switch - Driver
    GM690976Courtesy of GENERAL MOTORS CORP.
  3. Install the door lock and side window switch (1). Verify that the front retaining clips and the rear retaining clips are fully seated.
