Stationary Windows Component Views

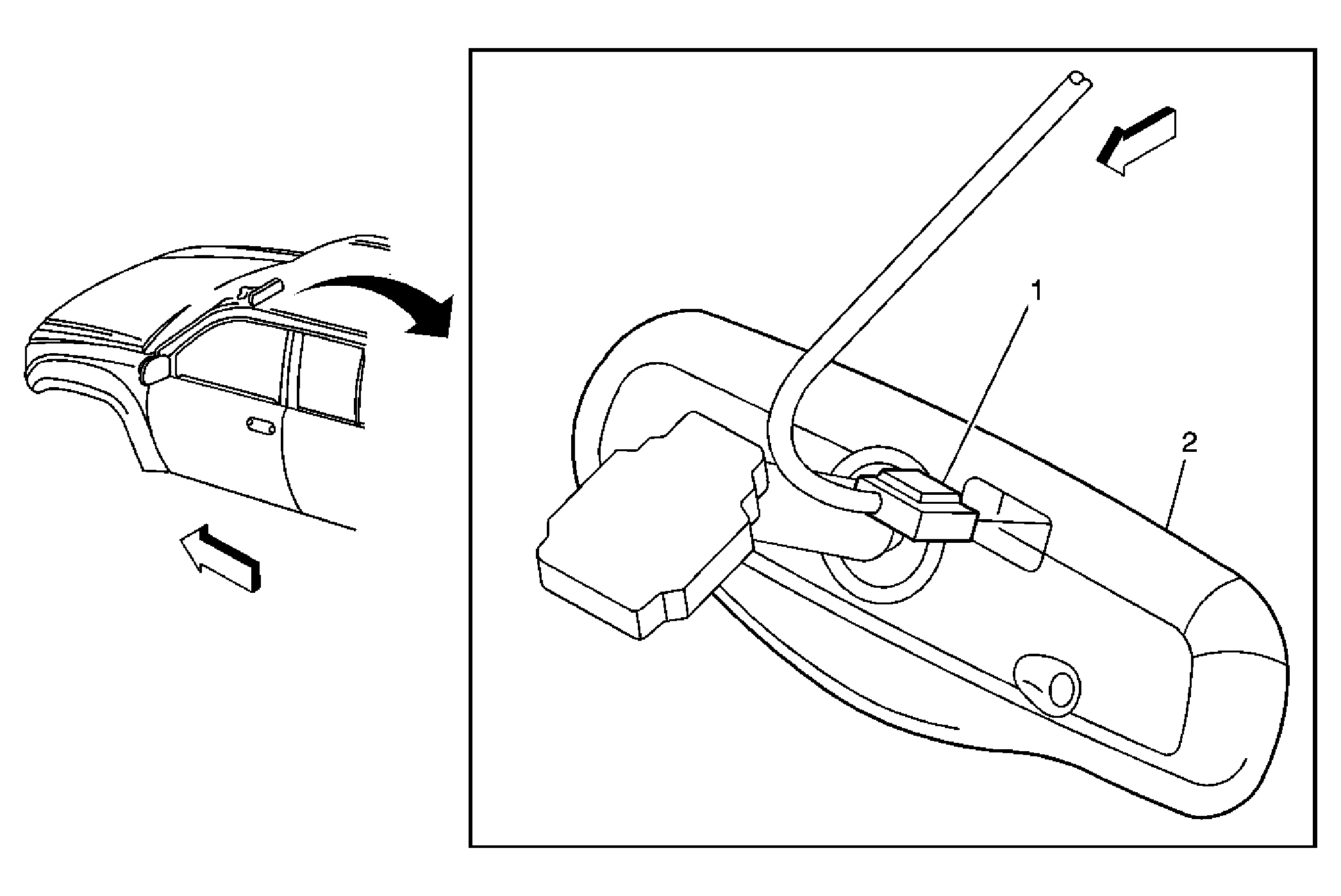

| Callout | Component Name |
|---|---|
| 1 | Connector (Headliner Harness) |
| 2 | Inside Rearview Mirror |

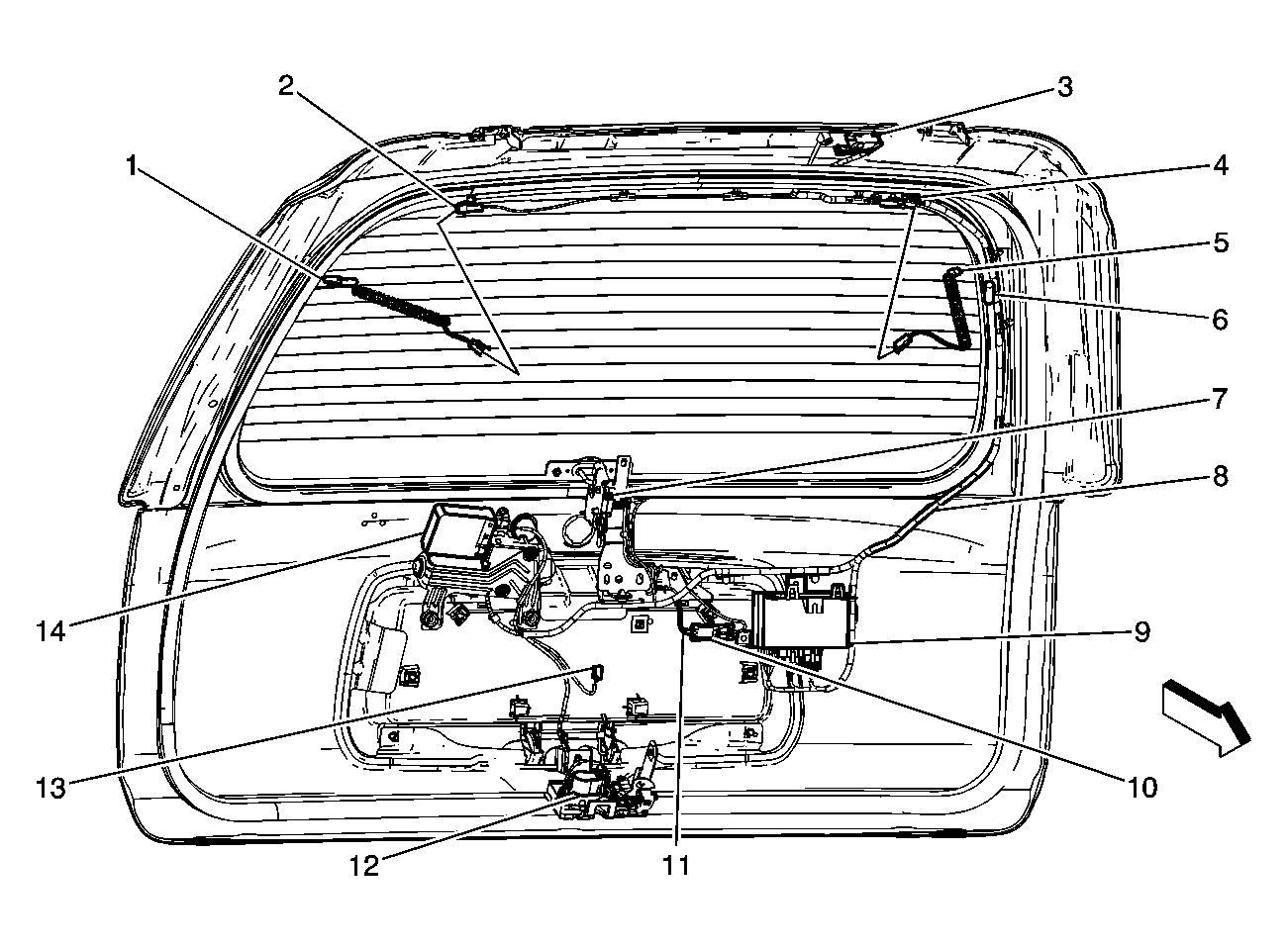

| Callout | Component Name |
|---|---|
| 1 | Rear Window Defogger Grid C2 |
| 2 | C905 |
| 3 | C900 |
| 4 | C904 |
| 5 | Rear Window Defogger Grid C1 |
| 6 | S901 |
| 7 | Liftglass Ajar Switch |
| 8 | Liftgate Harness |
| 9 | Liftgate Module (LGM) |
| 10 | C901 |
| 11 | License Lamp Harness |
| 12 | Liftgate Latch Assembly |
| 13 | Cargo Lamp |
| 14 | Rear Window Wiper Motor |
