Cylinder Head - Top View

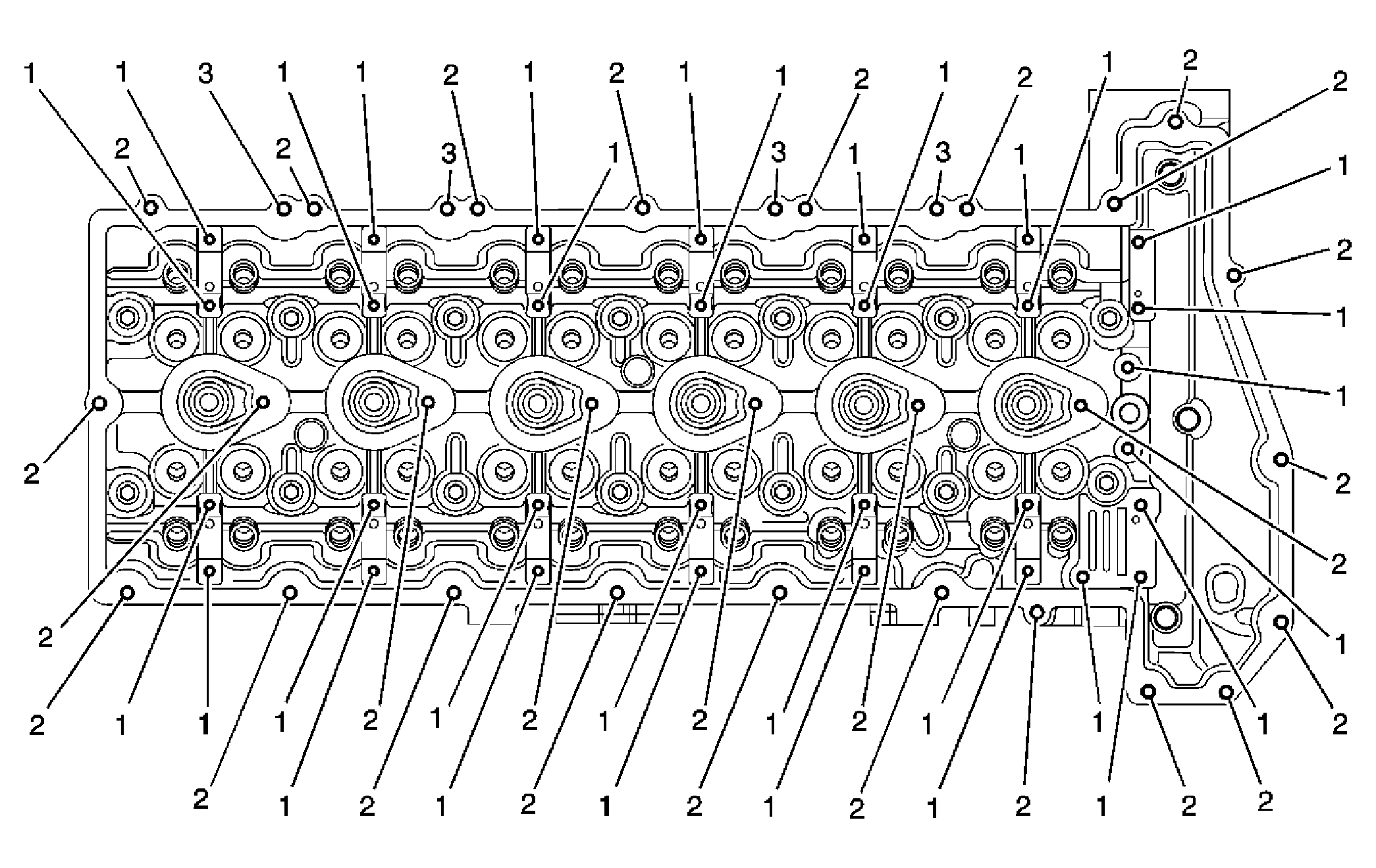

Fig 1: Cylinder Head Thread Repair - Top View
GM698386Courtesy of GENERAL MOTORS CORP.
Cylinder Head - Top View

Service Hole Location Thread Size Drill Counterbore Tool Stop Collar Tap Driver Insert Drill Depth (Max) Tap Depth (Min)
- mm (in) mm (in)
1 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
2 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
3 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
4 M 6 x 1 405 n/a 407 203 204 205 THRU THRU
5 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
6 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
7 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
8 M 6 x 1 405 n/a 407 203 204 205 THRU THRU
9 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
10 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
11 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
12 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
13 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
14 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
15 M 6 x 1 405 n/a 407 203 204 205 THRU THRU
16 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
17 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
18 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
19 M 6 x 1 405 n/a 407 203 204 205 THRU THRU
20 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
21 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
22 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
23 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
24 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
25 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
26 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
27 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
28 M 6 x 1 405 n/a 406 203 204 205 28 1.103 23 0.906
29 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
30 M 6 x 1 201 202 n/a 203 204 205 23 0.906 19 0.748
31 M 6 x 1 405 n/a 406 203 204 205 28 1.103 23 0.906
32 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
33 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
34 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
35 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
36 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
37 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
38 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
39 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
40 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
41 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
42 M 6 x 1 201 202 n/a 203 204 205 23 0.906 19 0.748
43 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
44 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
45 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
46 M 6 x 1 201 202 n/a 203 204 205 23 0.906 19 0.748
47 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
48 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
49 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
50 M 6 x 1 201 202 n/a 203 204 205 23 0.906 19 0.748
51 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
52 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
53 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
54 M 6 x 1 201 202 n/a 203 204 205 23 0.906 19 0.748
55 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
56 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
57 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
58 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
59 M 6 x 1 405 n/a 406 203 204 205 28 1.103 24 0.945
60 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
61 M 6 x 1 201 202 n/a 203 204 205 23 0.906 19 0.748
62 M 6 x 1 201 202 n/a 203 204 205 22 0.866 18 0.709
