Thread Repair Specifications
Thread Repair Specifications

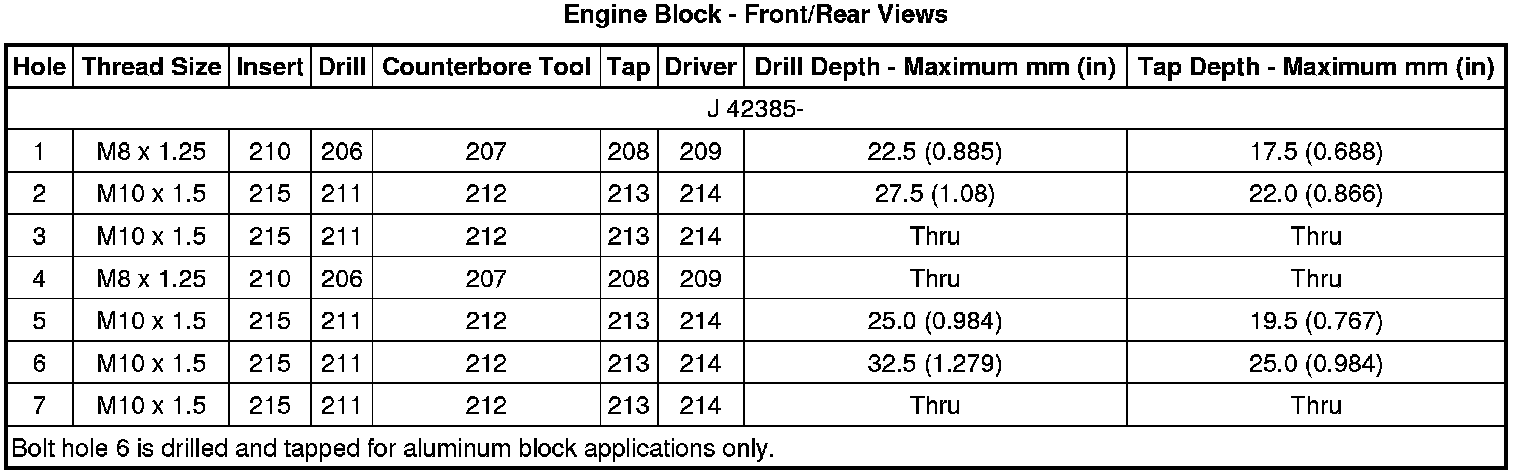

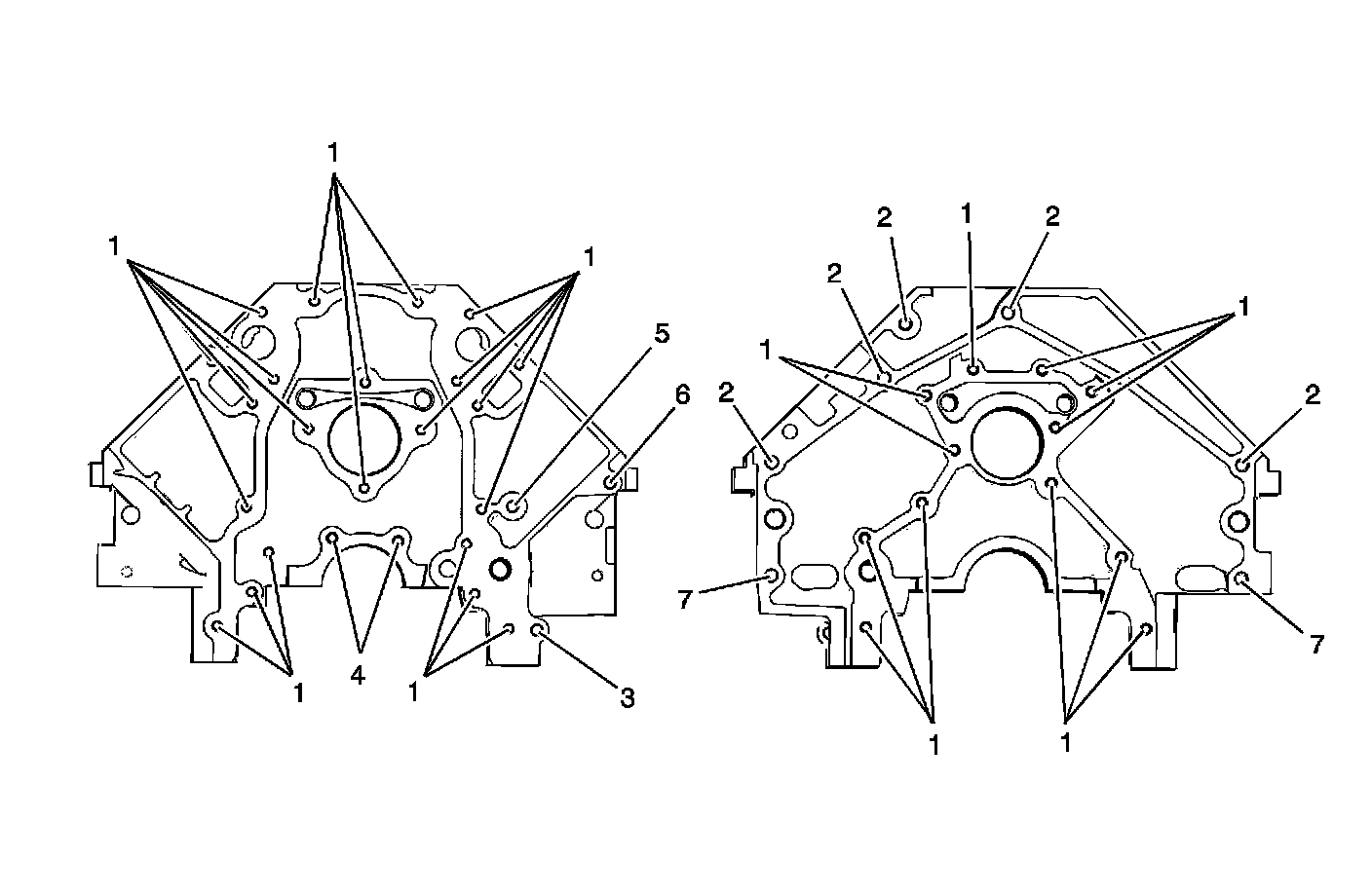

Engine Block - Front/Rear Views
Engine Block:

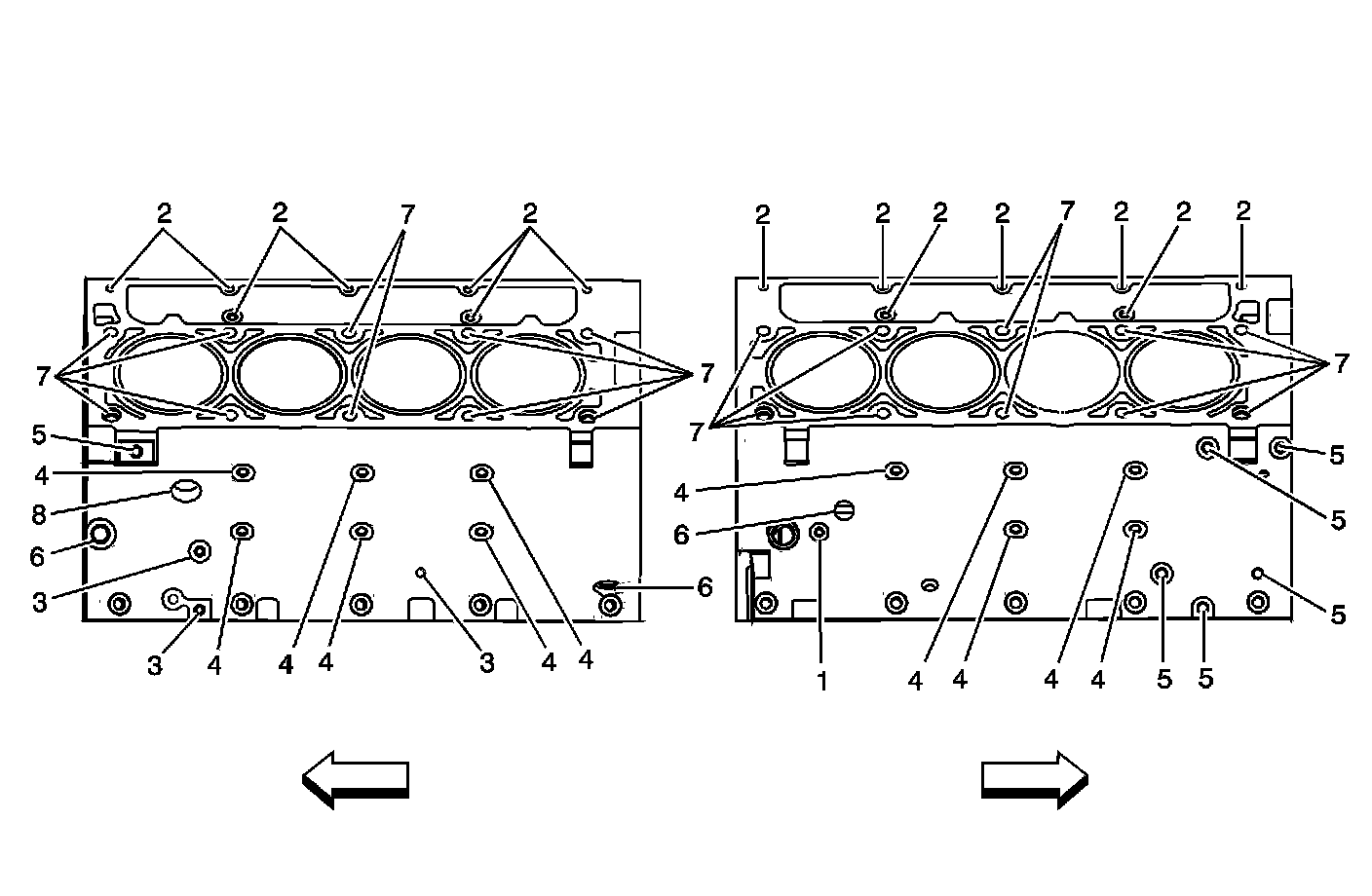

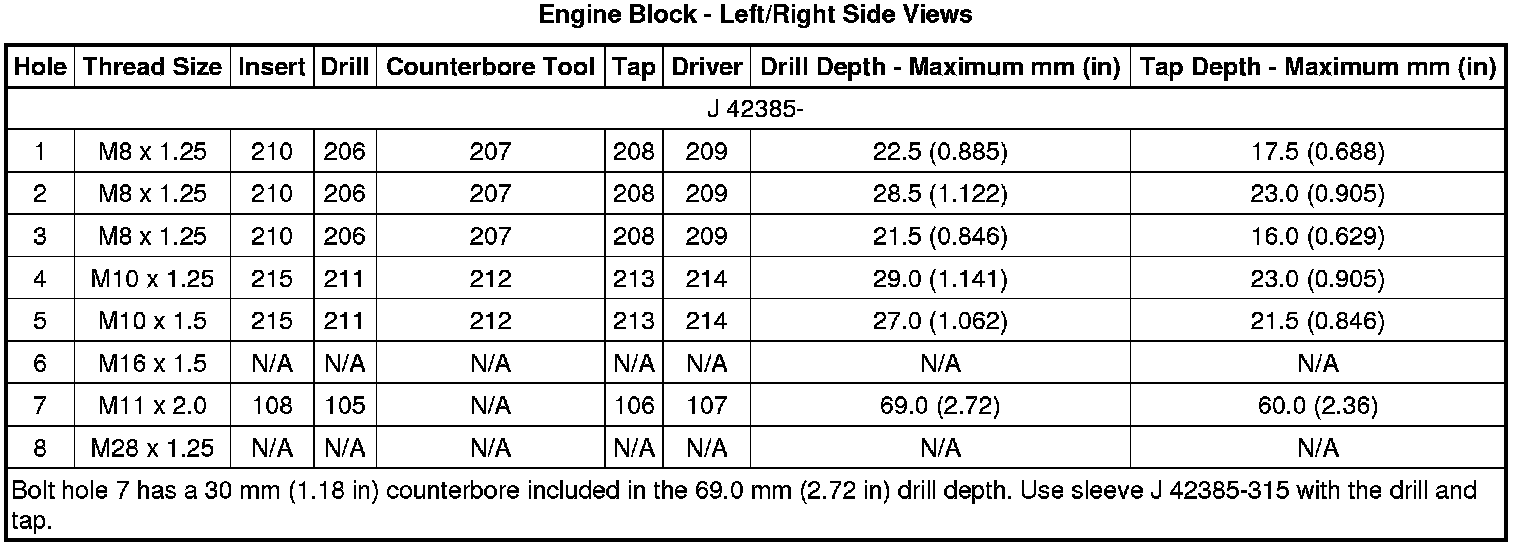

Engine Block - Left/Right Side Views
Engine Block:

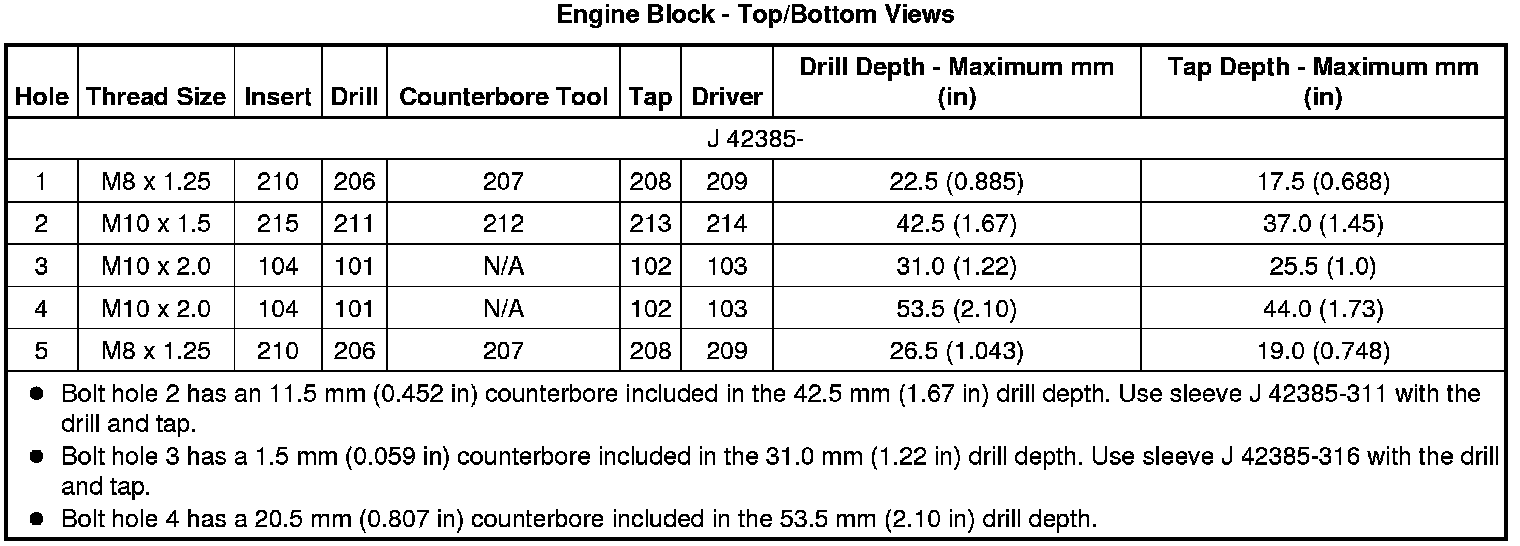

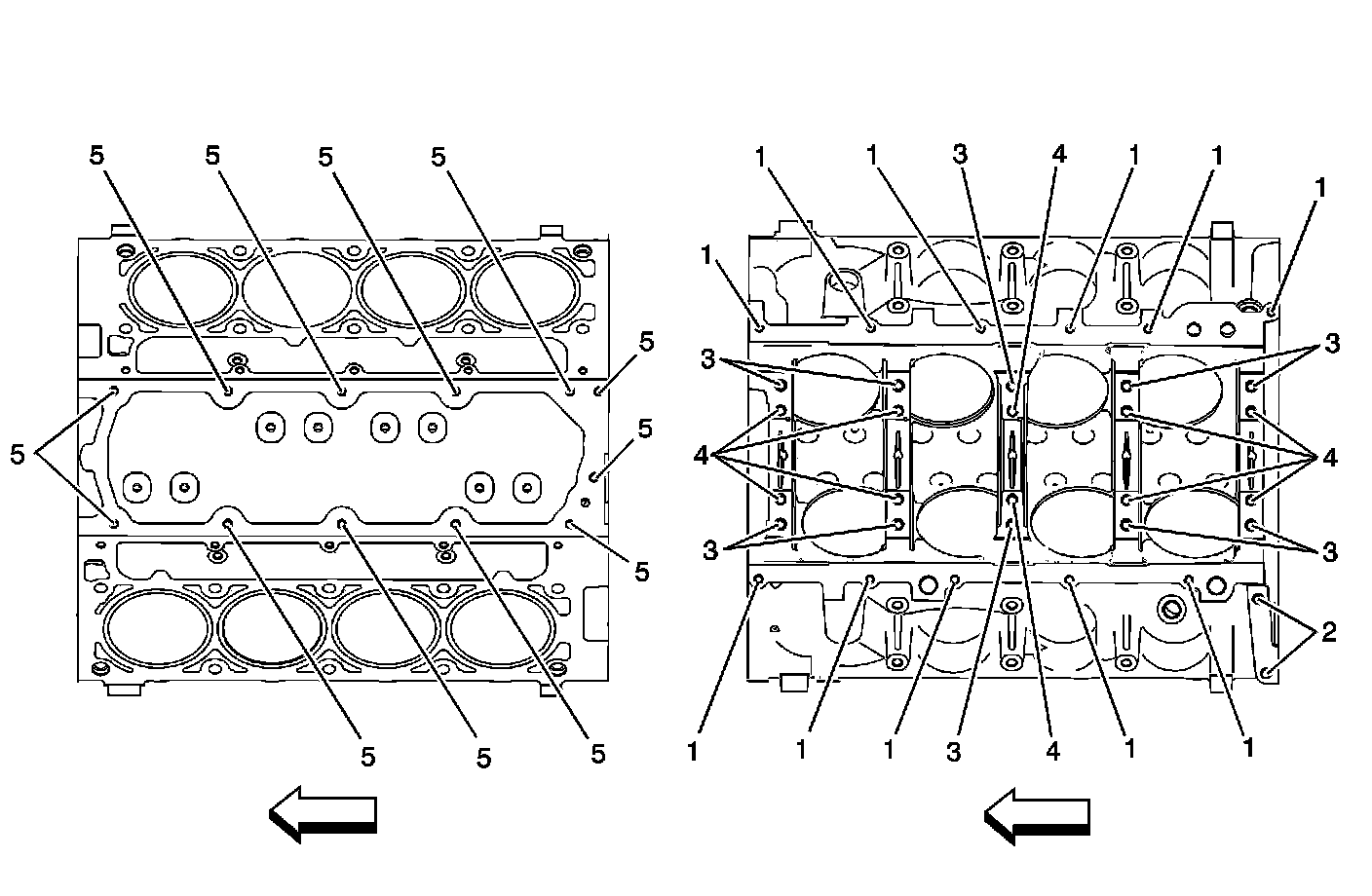

Engine Block - Top/Bottom Views
Engine Block:

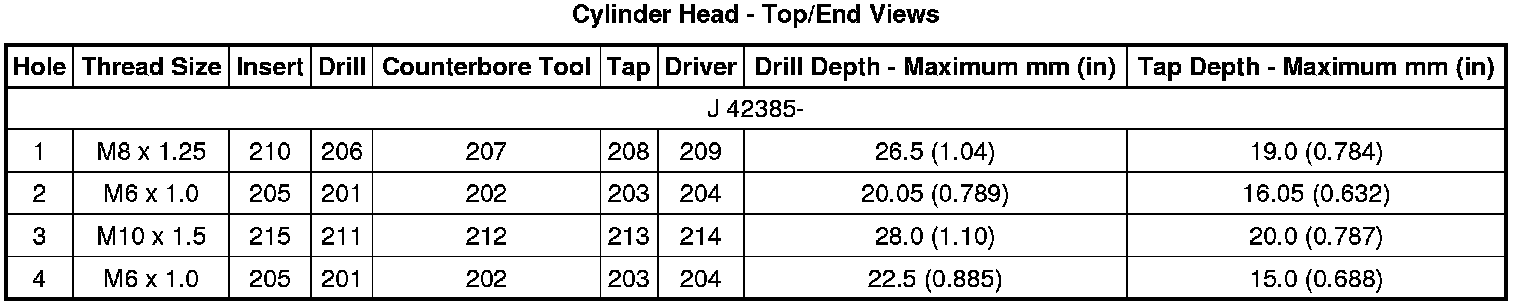

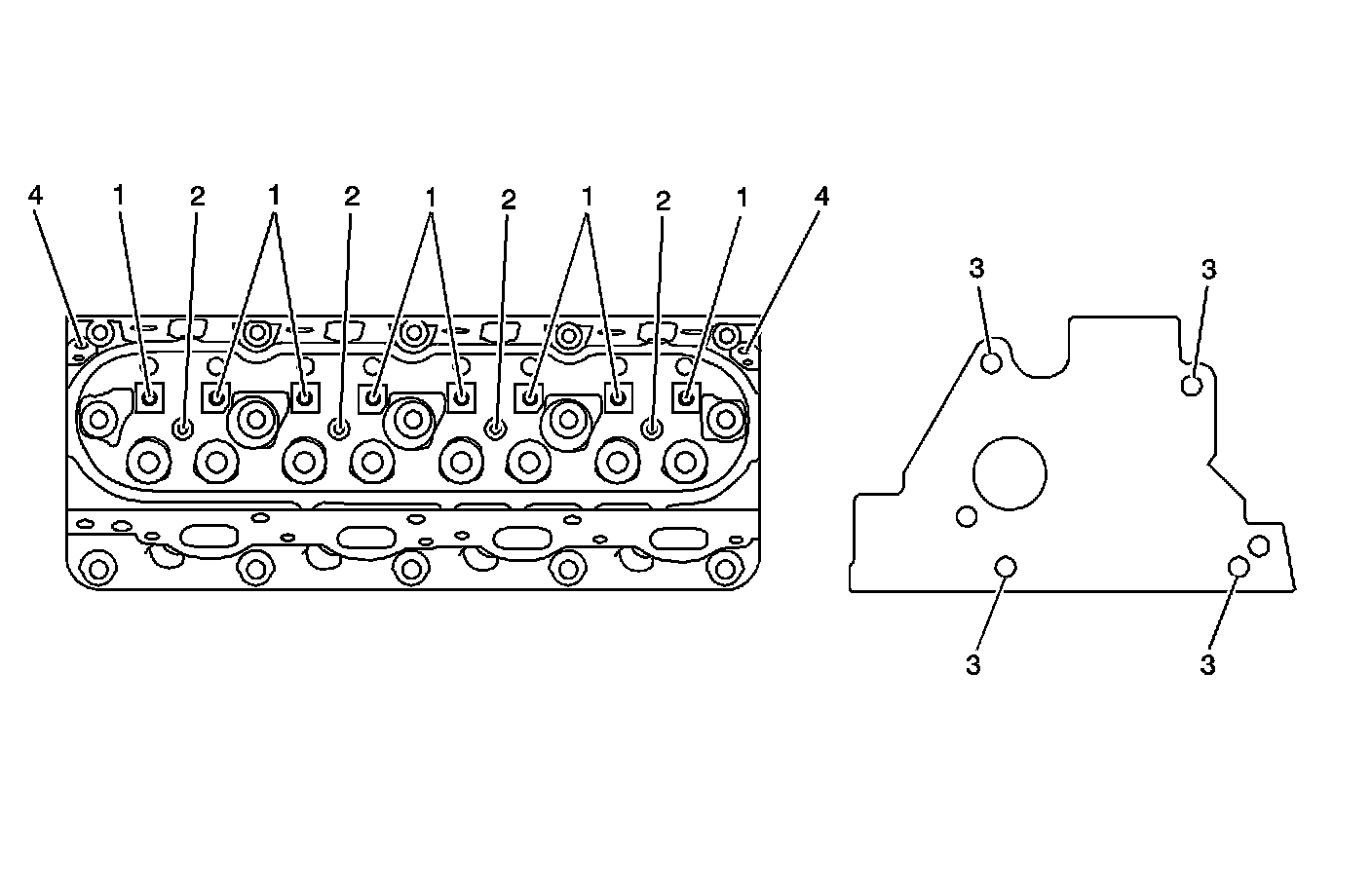

Cylinder Head - Top/End Views
Cylinder Head:

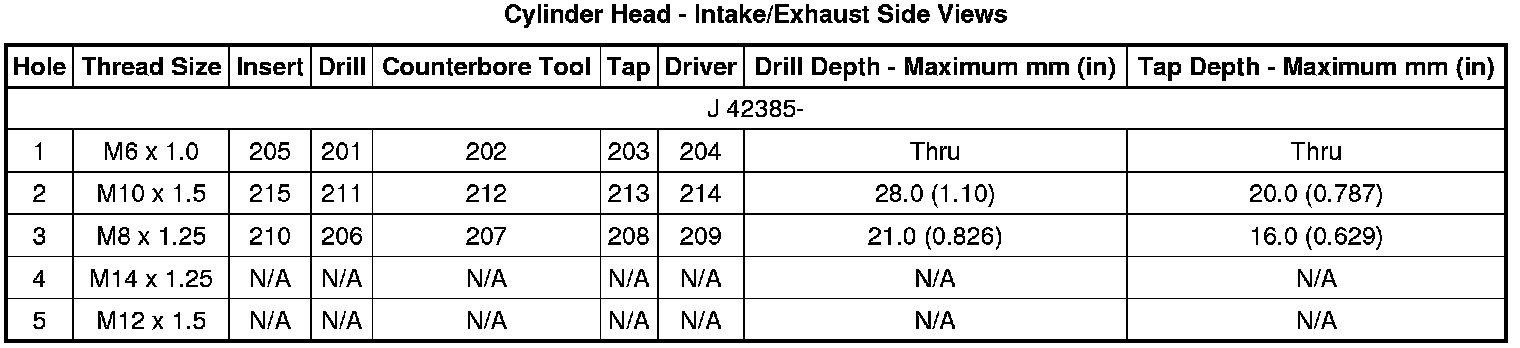

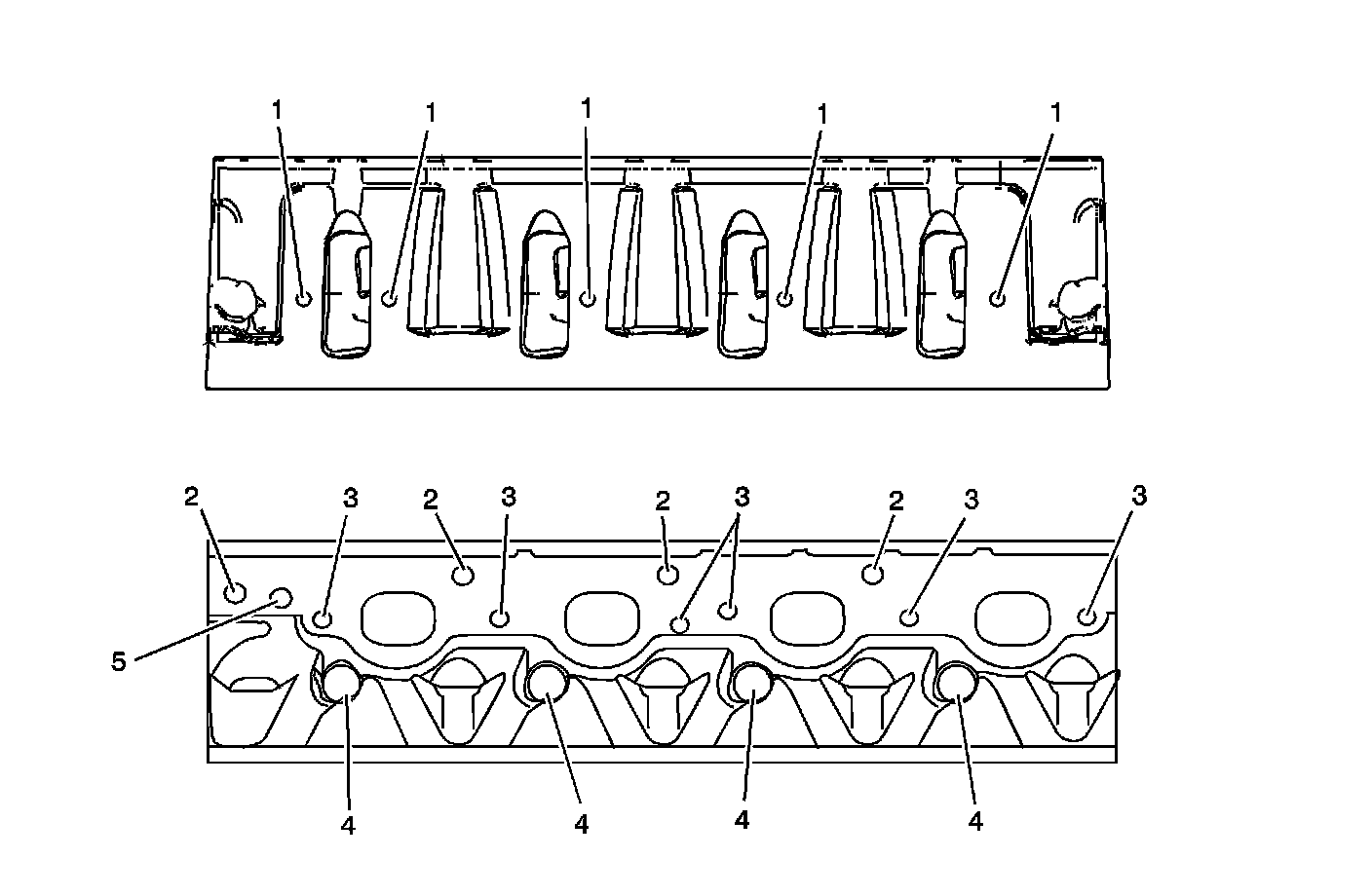

Cylinder Head - Intake/Exhaust Side Views
Cylinder Head:
