System Diagram

Component

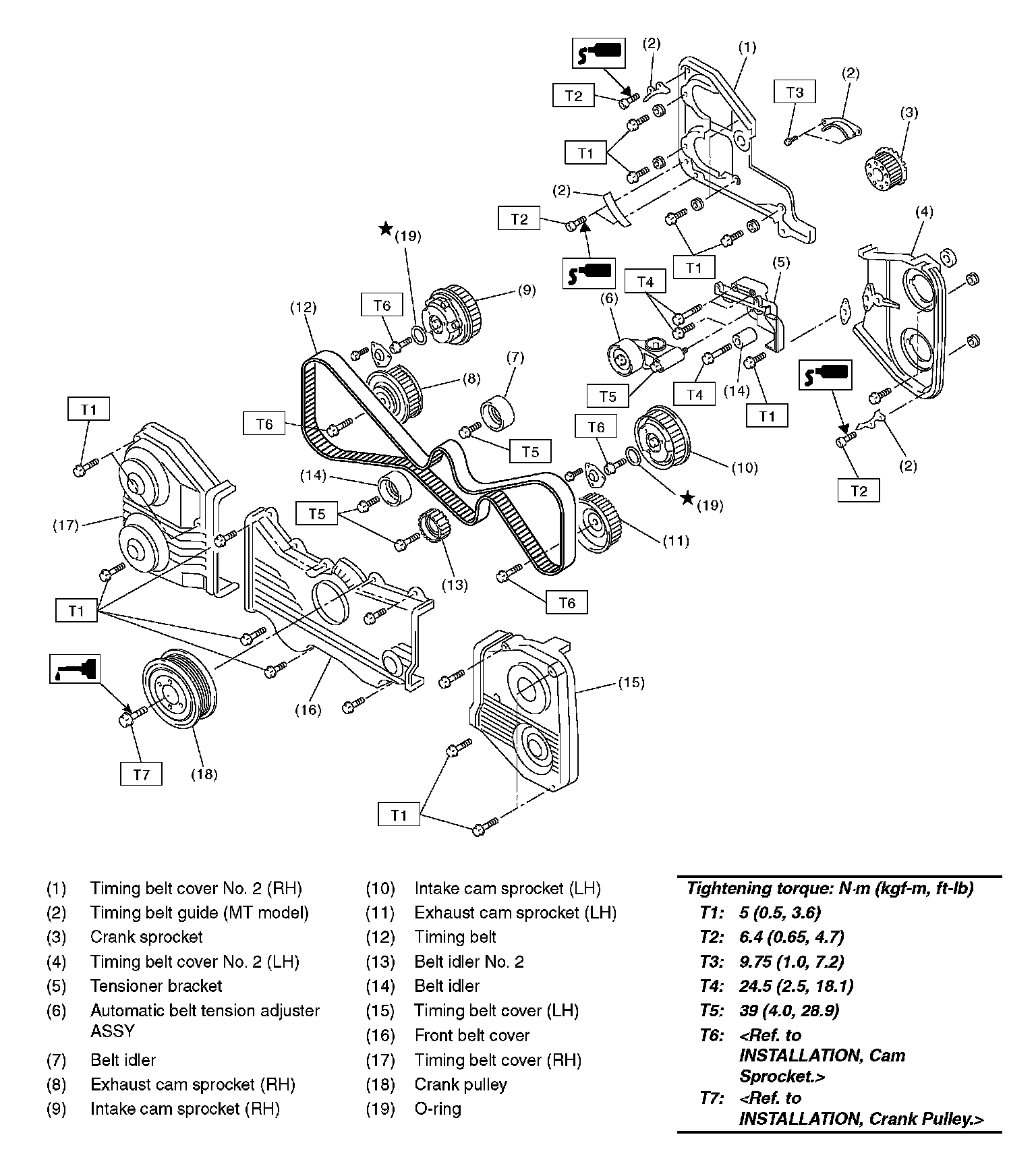

TIMING BELT:

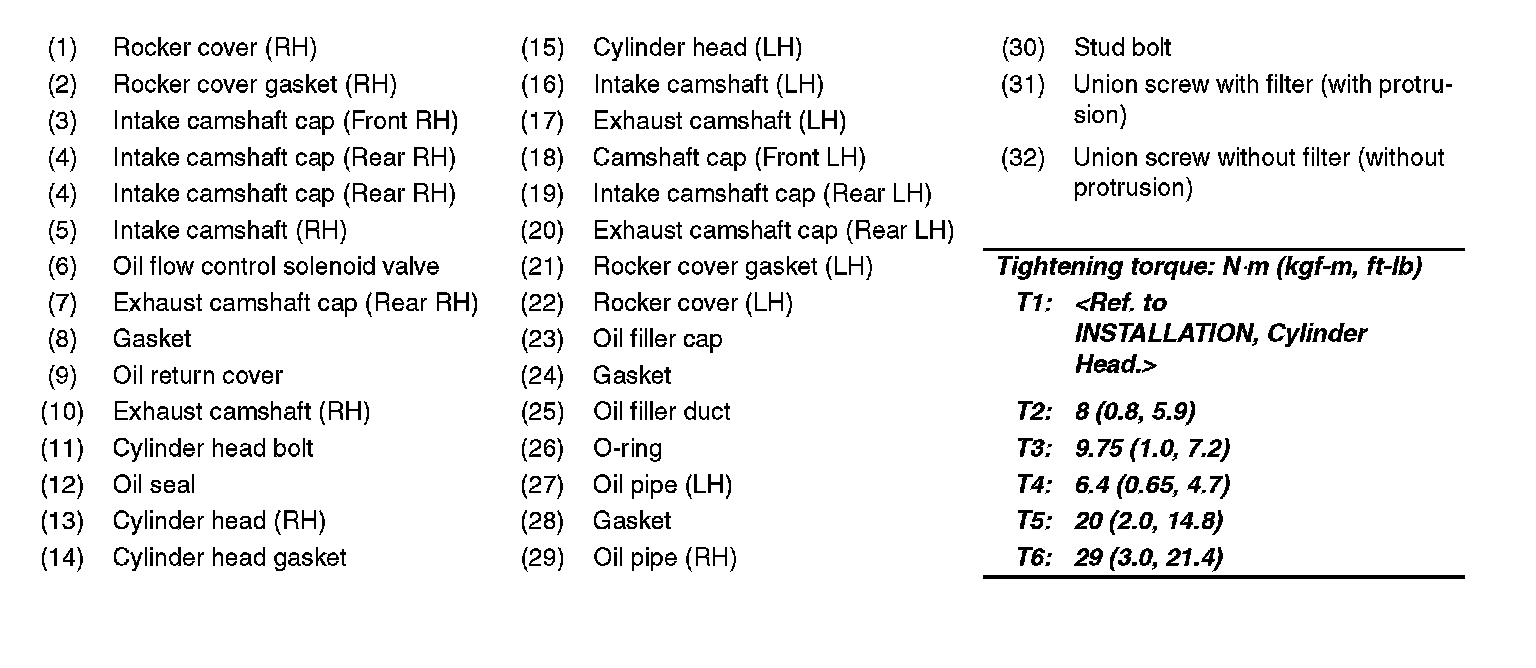

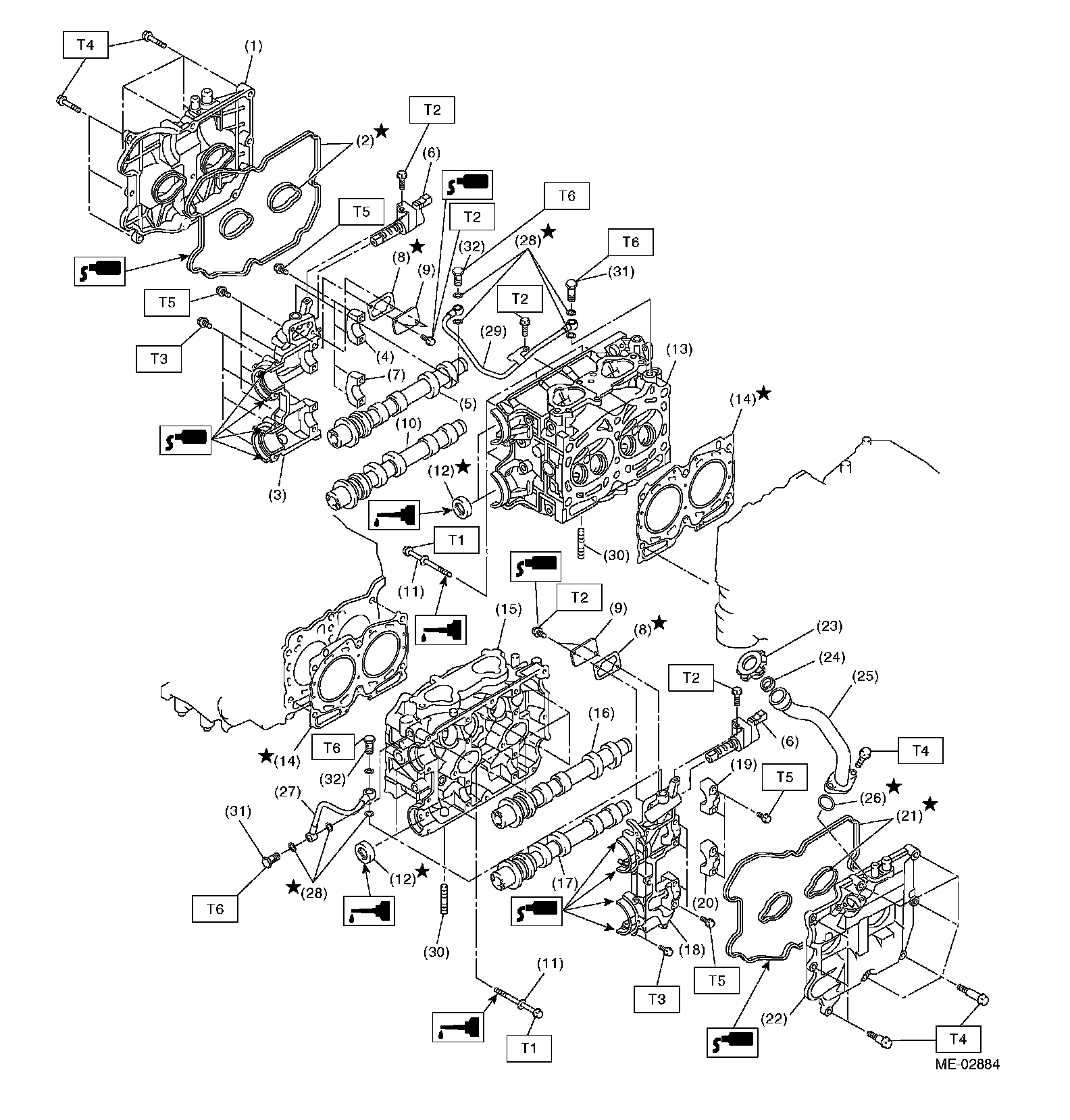

CYLINDER HEAD AND CAMSHAFT:




CYLINDER HEAD AND CAMSHAFT:

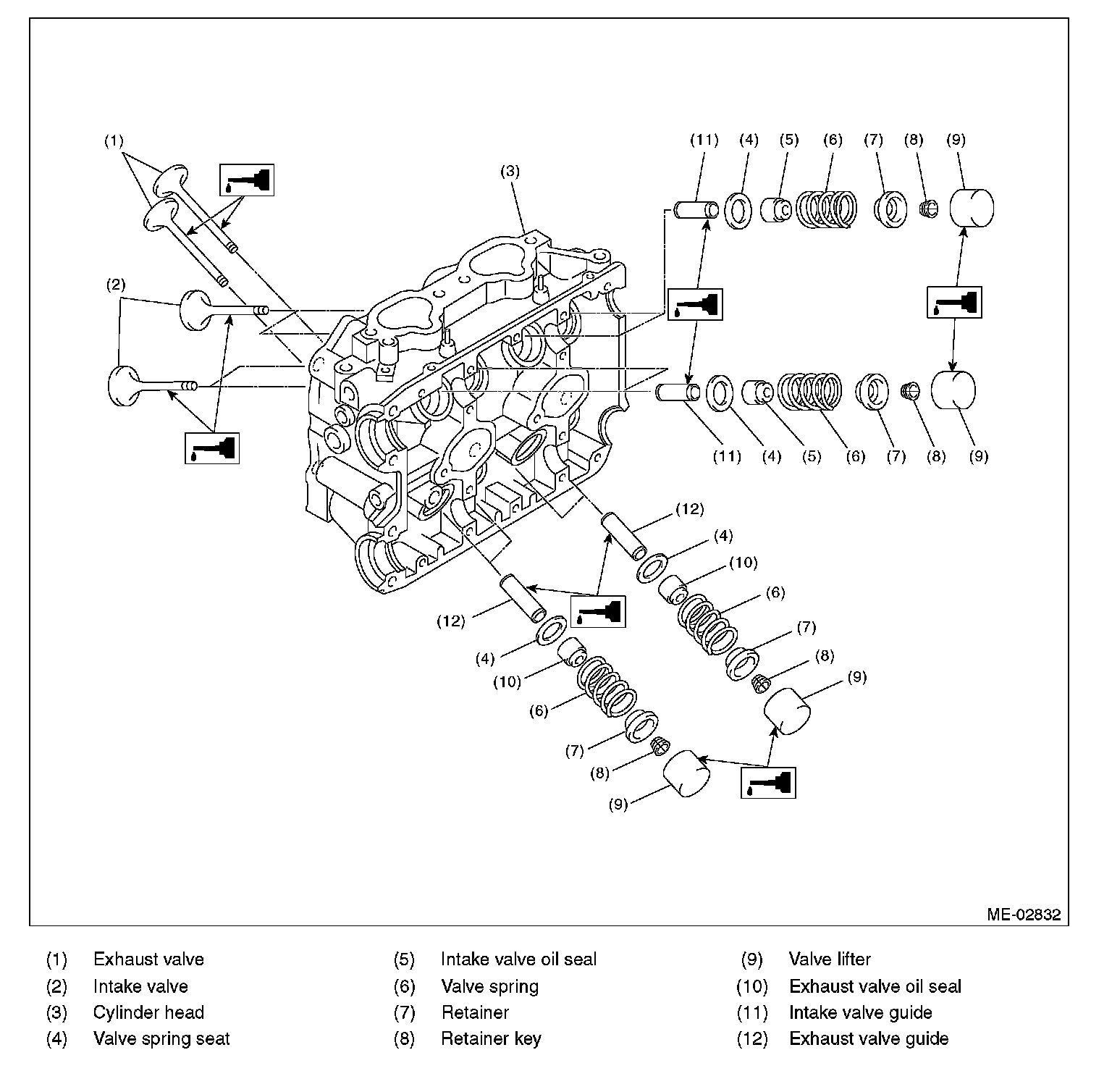

CYLINDER HEAD AND VALVE ASSEMBLY:

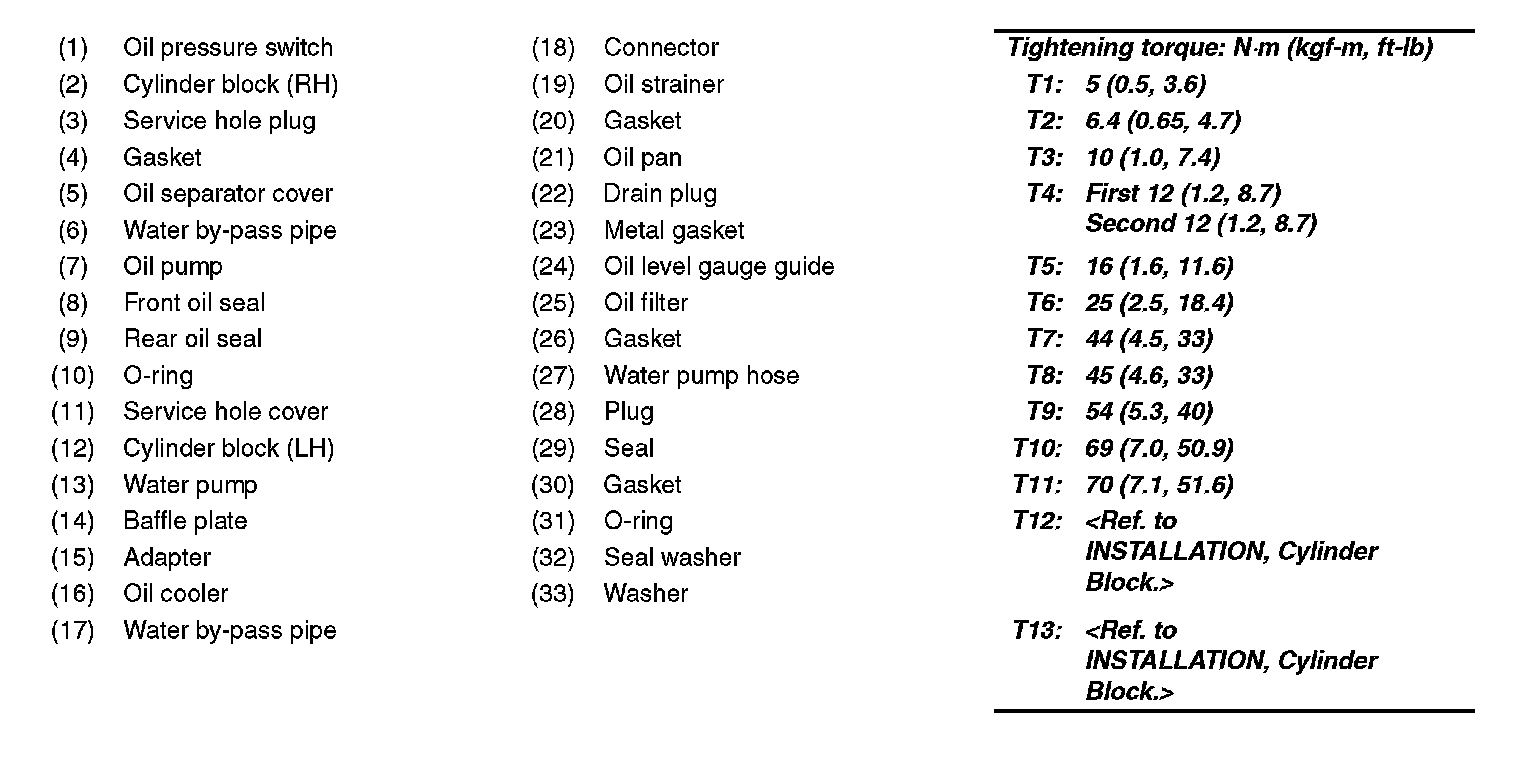

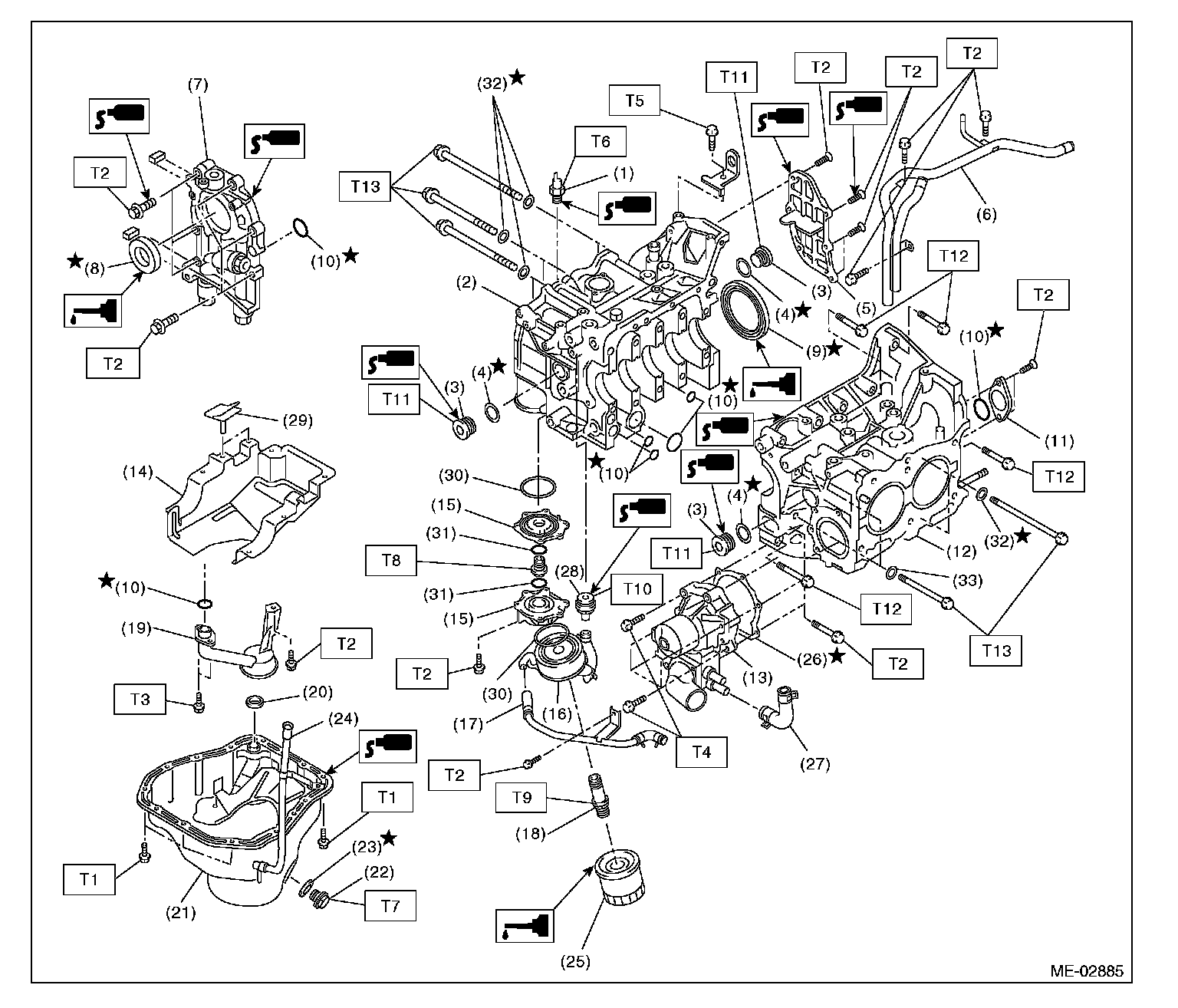

CYLINDER BLOCK:




CYLINDER BLOCK:

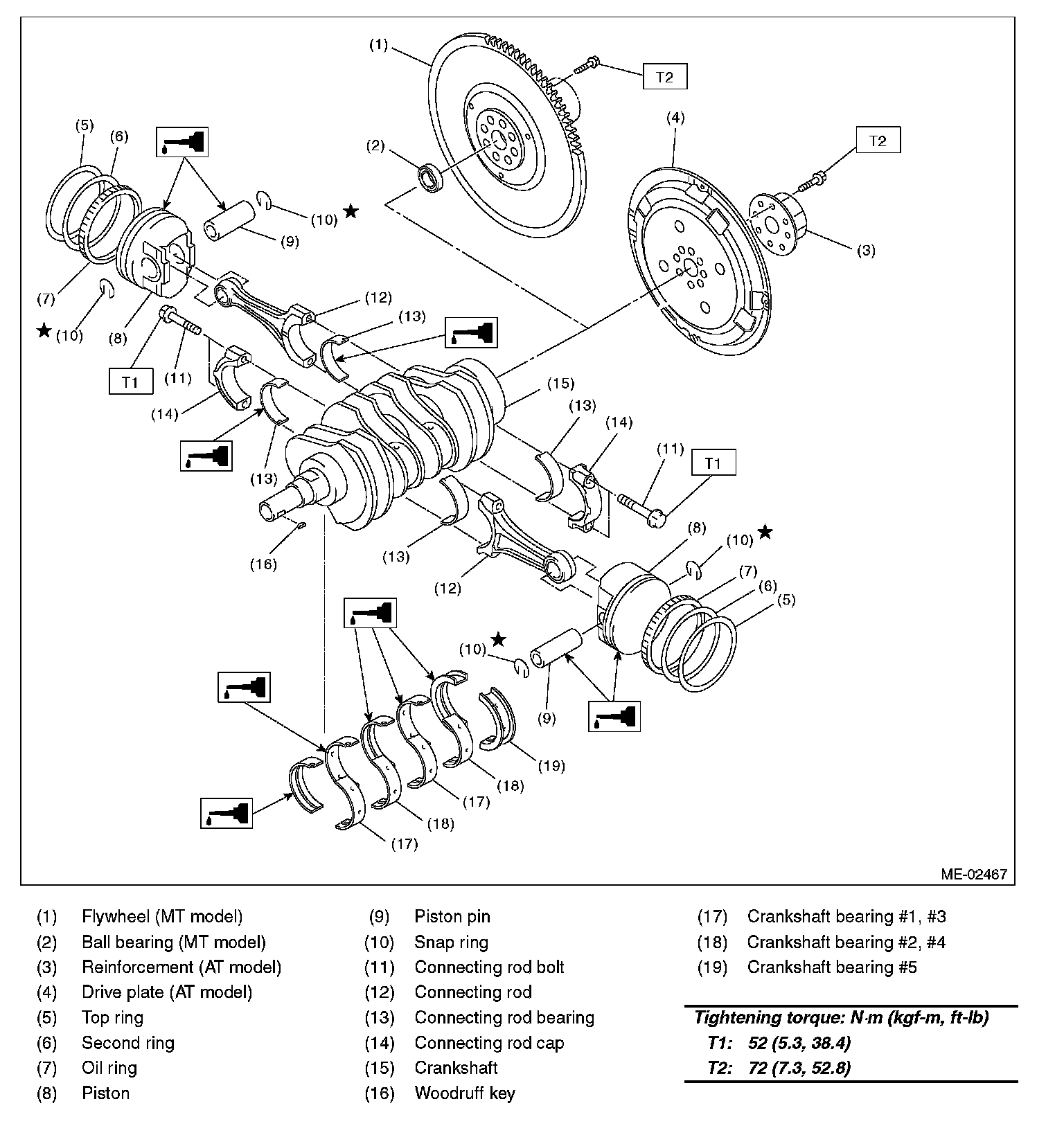

CRANKSHAFT AND PISTON:

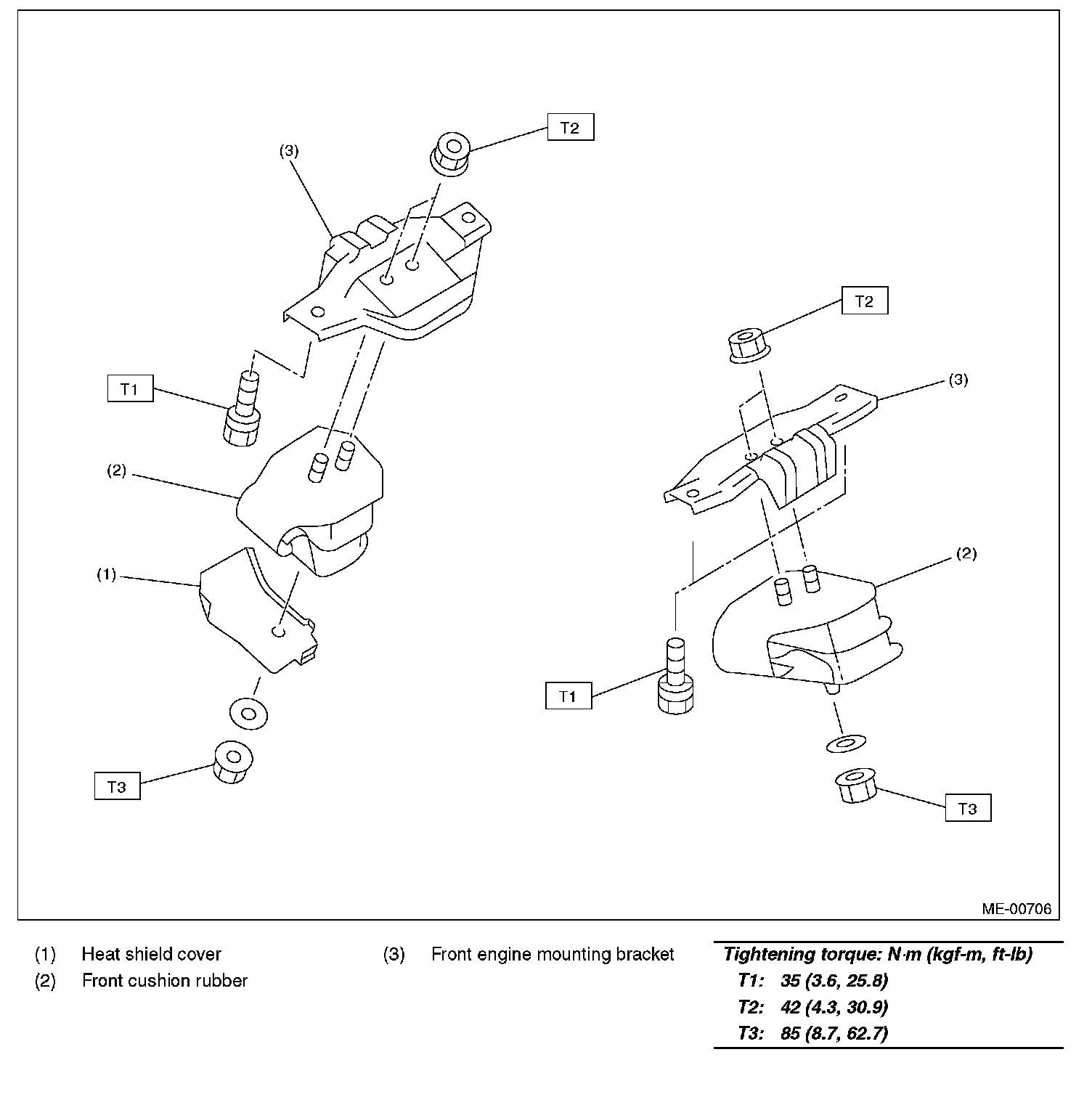

ENGINE MOUNTING:
