Home >> Saab >> 2006 >> 9-2X F4-2.5L >> Repair and Diagnosis >> Heating and Air Conditioning >> Control Assembly >> Diagrams >> Exploded Views
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

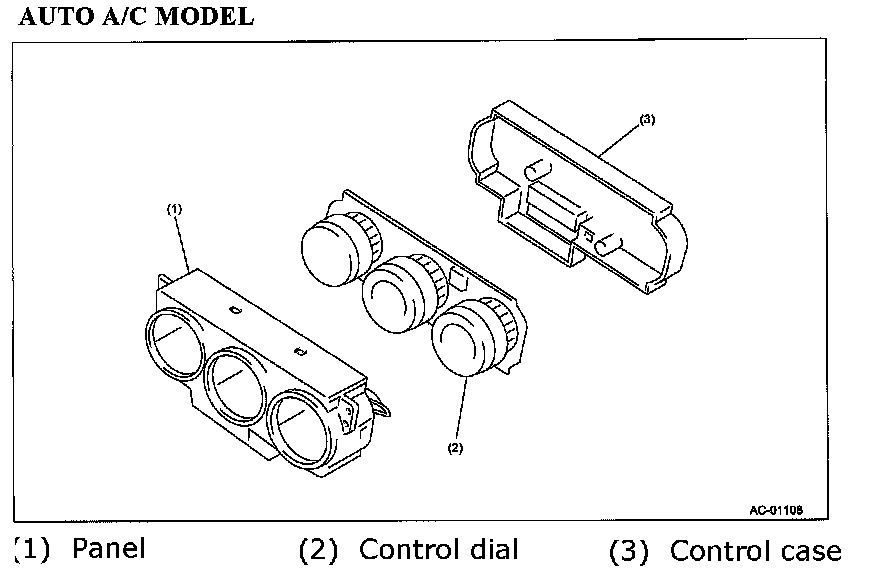

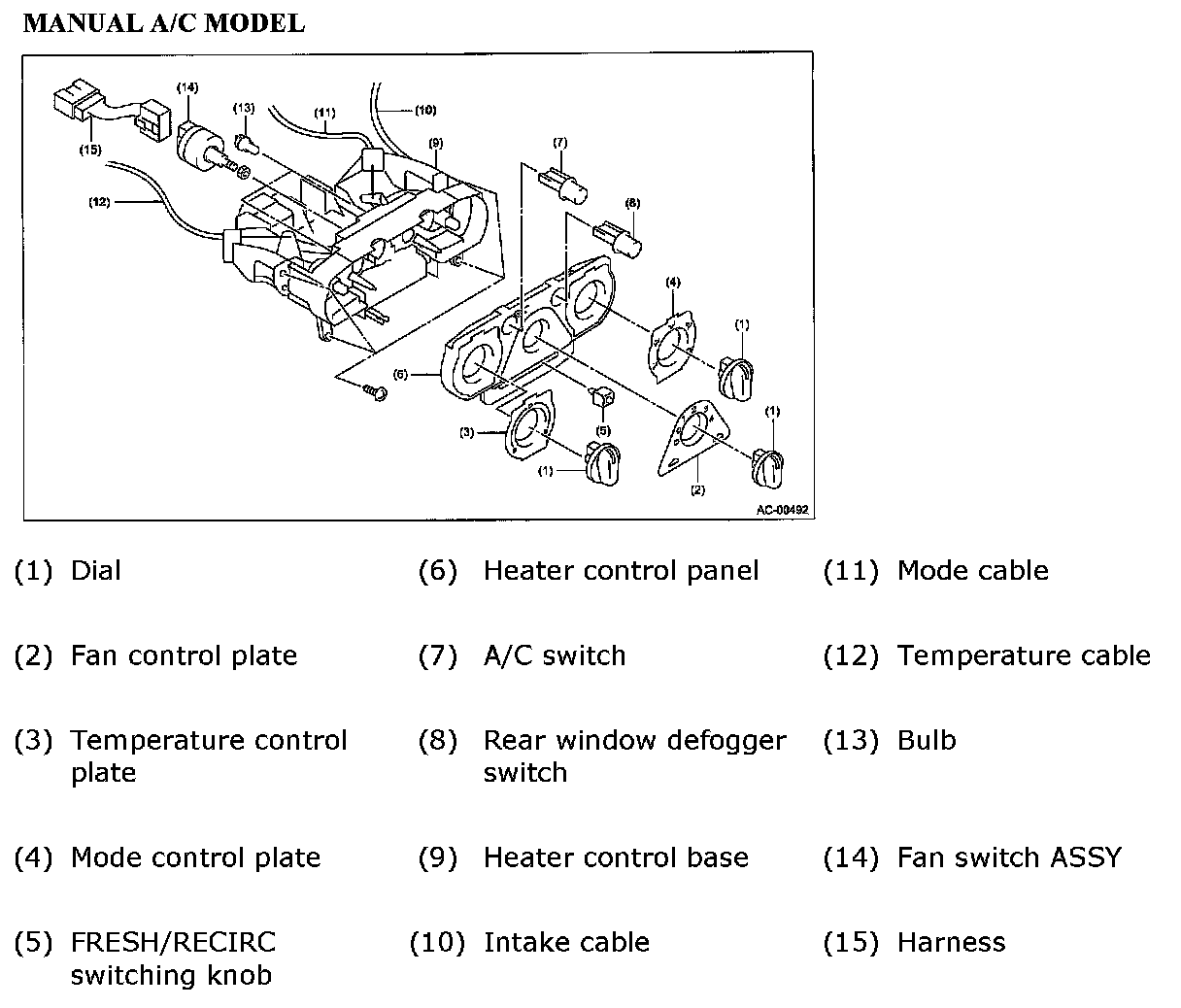

Exploded Views
