Intake air sensor (688): B284

on intake manifold next to air filter

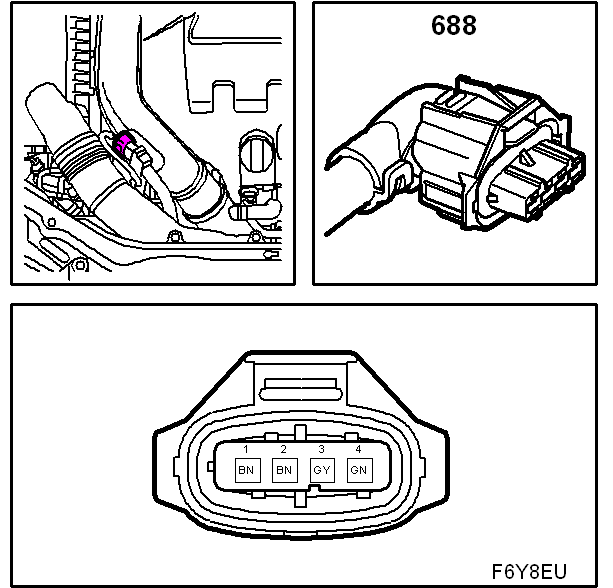

Fig 1: Identifying Intake Air Sensor (B284)
G05052771Courtesy of SAAB-SCANIA OF AMERICA, INC.
