Door Control Module Schematics

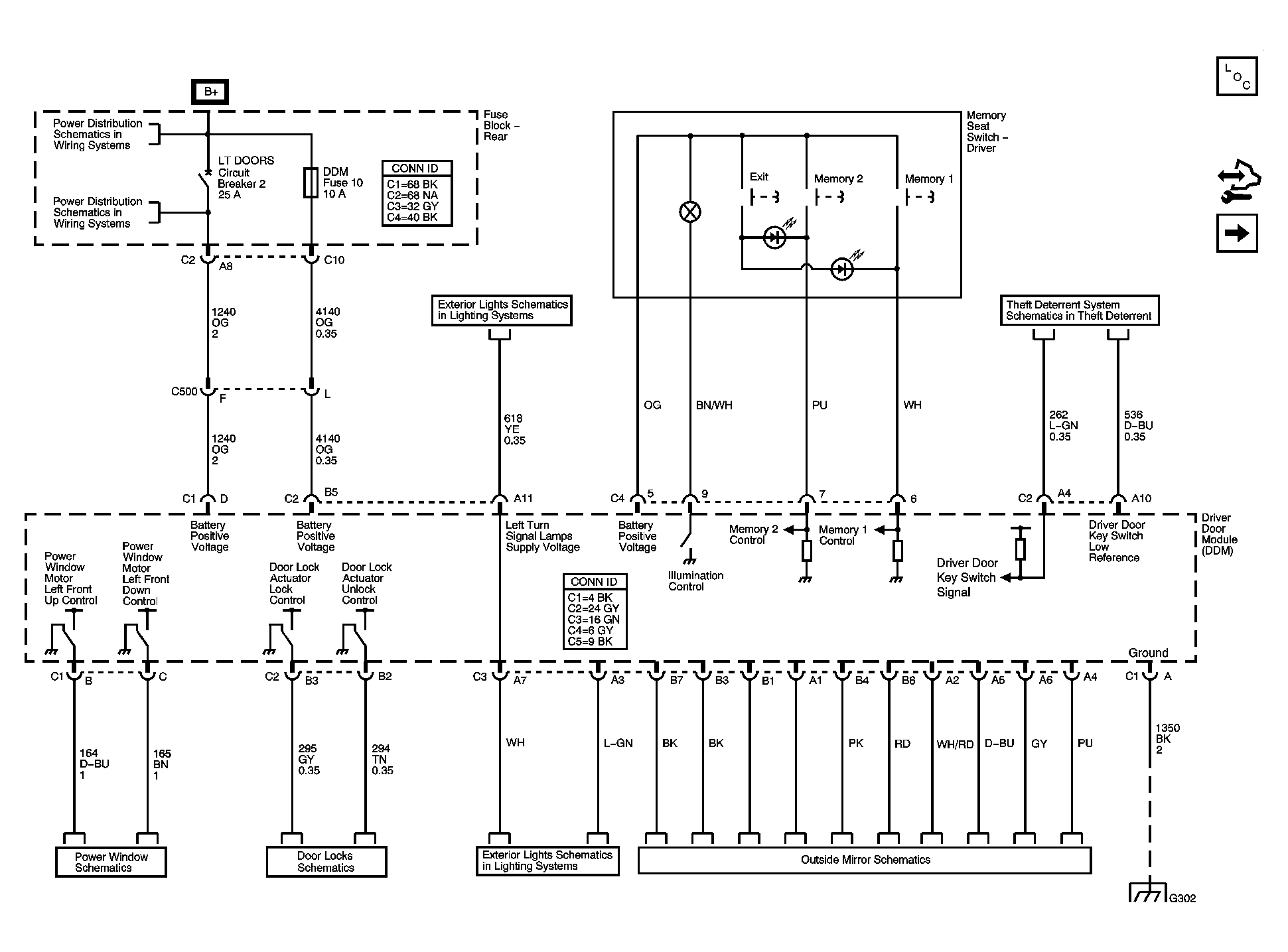

Fig 1: Power, Ground & Subsystem References Wiring Diagram
GM1630461Courtesy of GENERAL MOTORS CORP.
Fig 2: Serial Data & Subsystem References Wiring Diagram
GM1630462Courtesy of GENERAL MOTORS CORP.

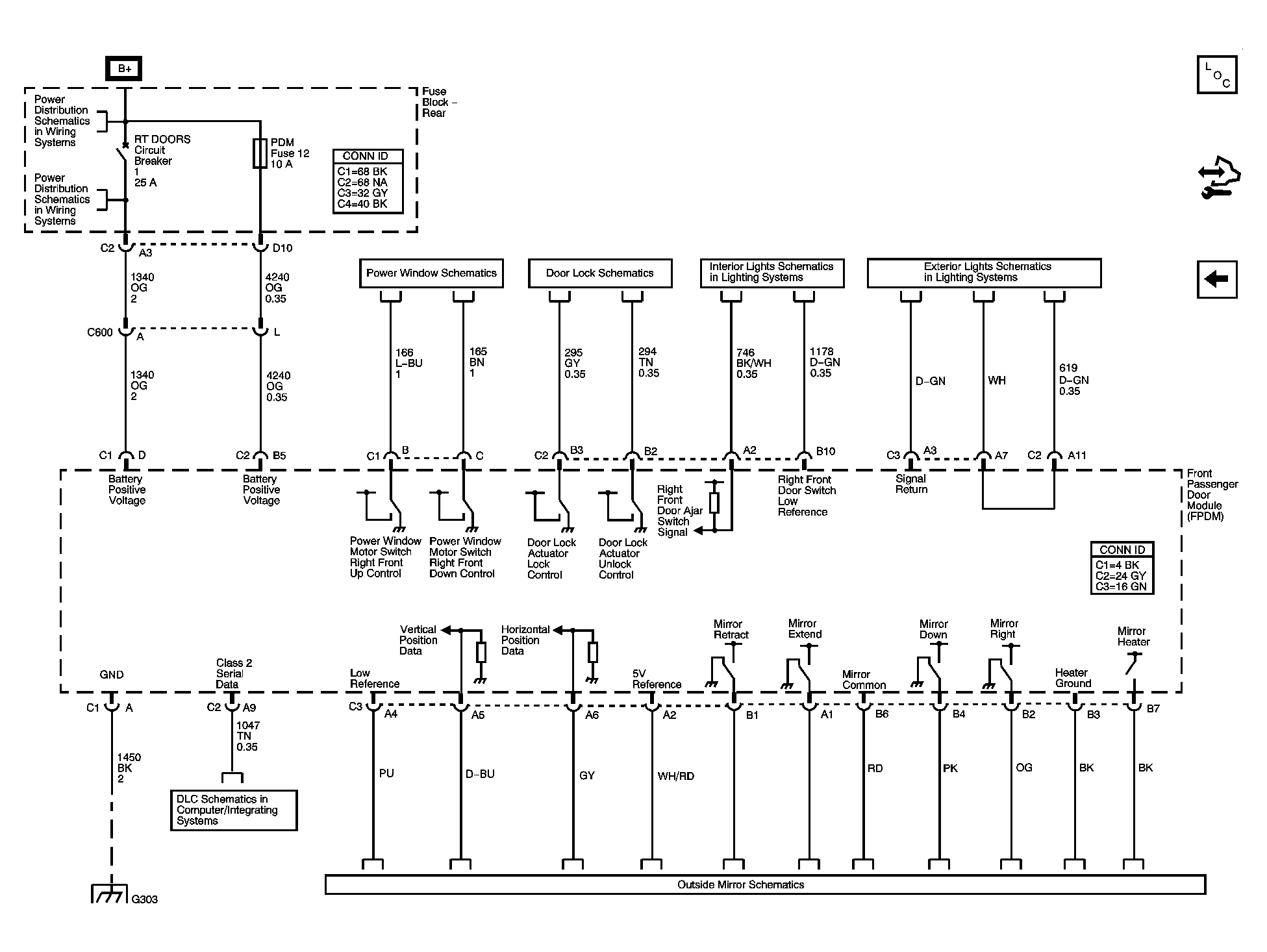

Fig 3: Front Passenger Door Module Wiring Diagram
GM1630463Courtesy of GENERAL MOTORS CORP.
