Airbag Control Module (331)
Location:
on the center tunnel behind the gear selector unit

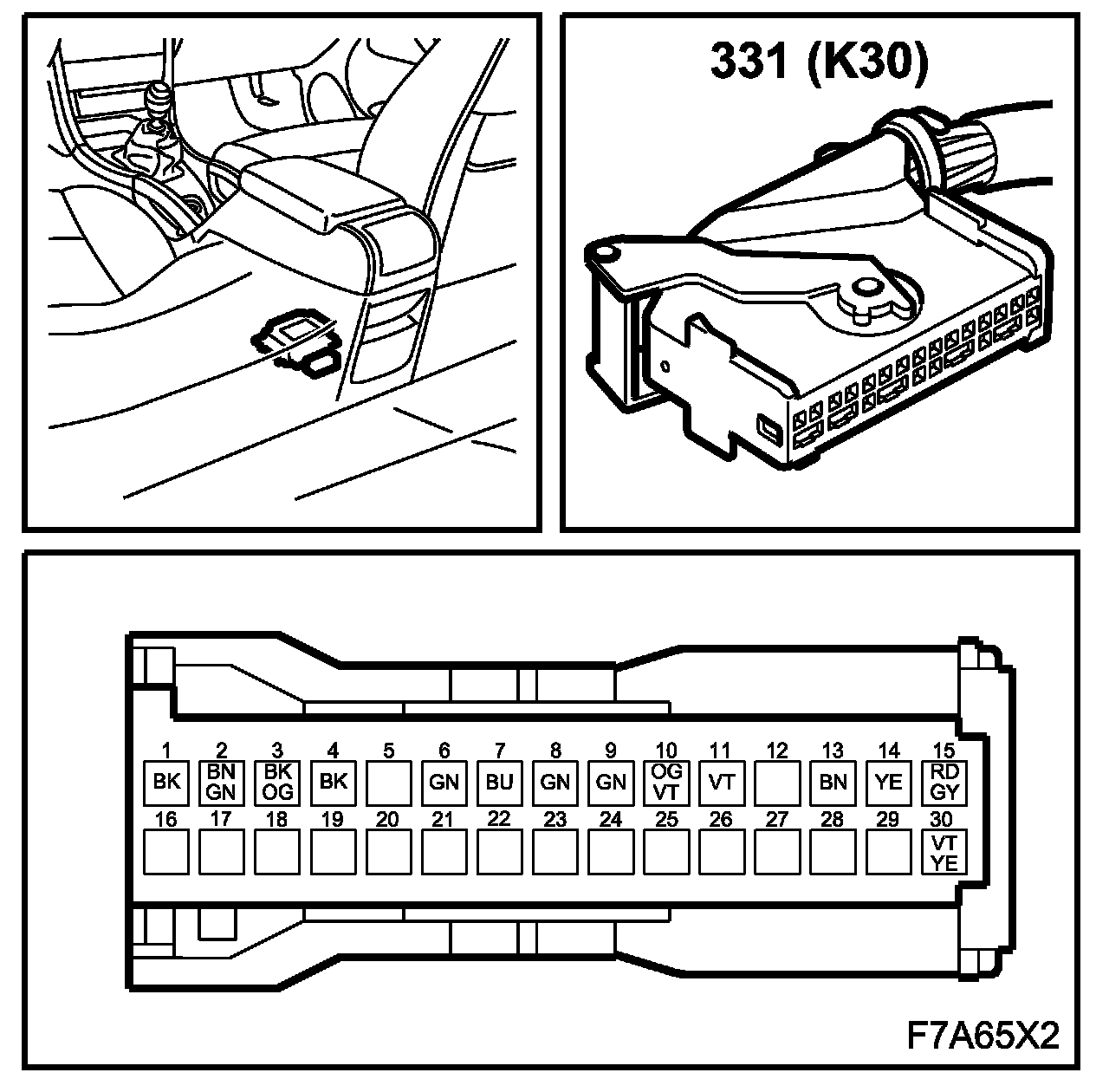

K30
Airbag control module (331):

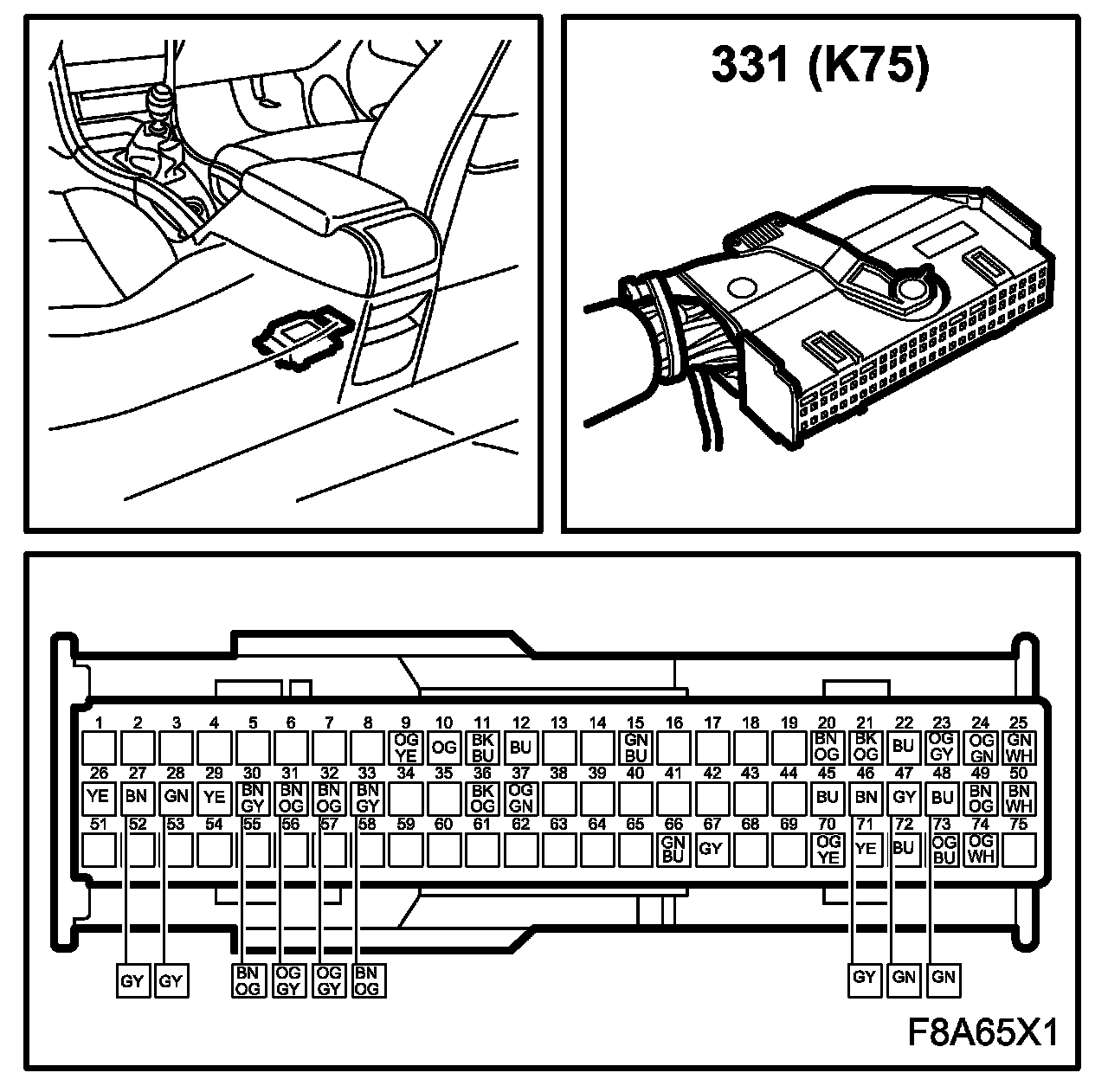

K75
Airbag control module (331):
