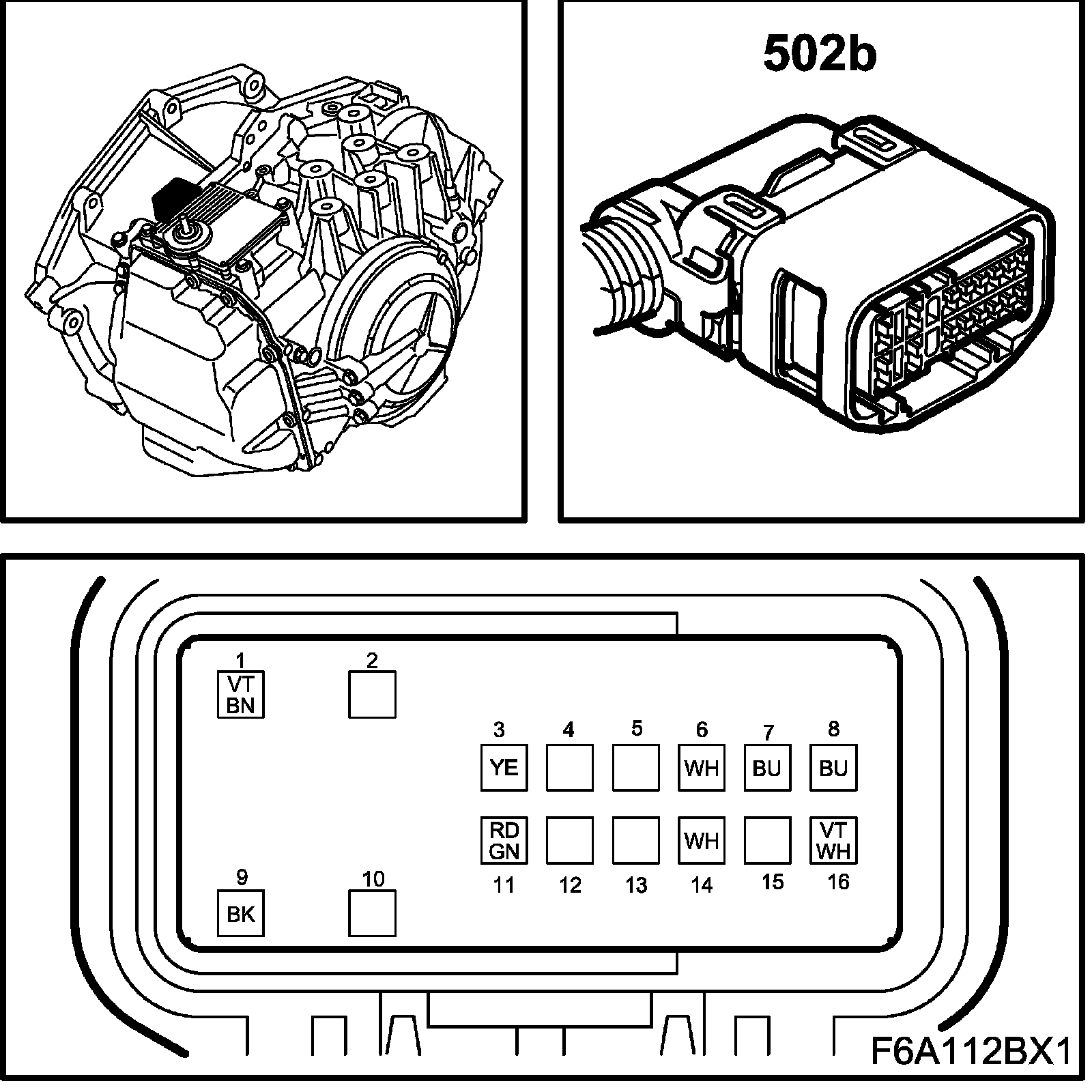

TCM Control Module, AF40 (502b)
Location:
On transmission casing
K16
TCM Control Module, AF40 (502b):
