OnStar Control Module (673) 5D



Location: under luggage compartment floor in front of subwoofer

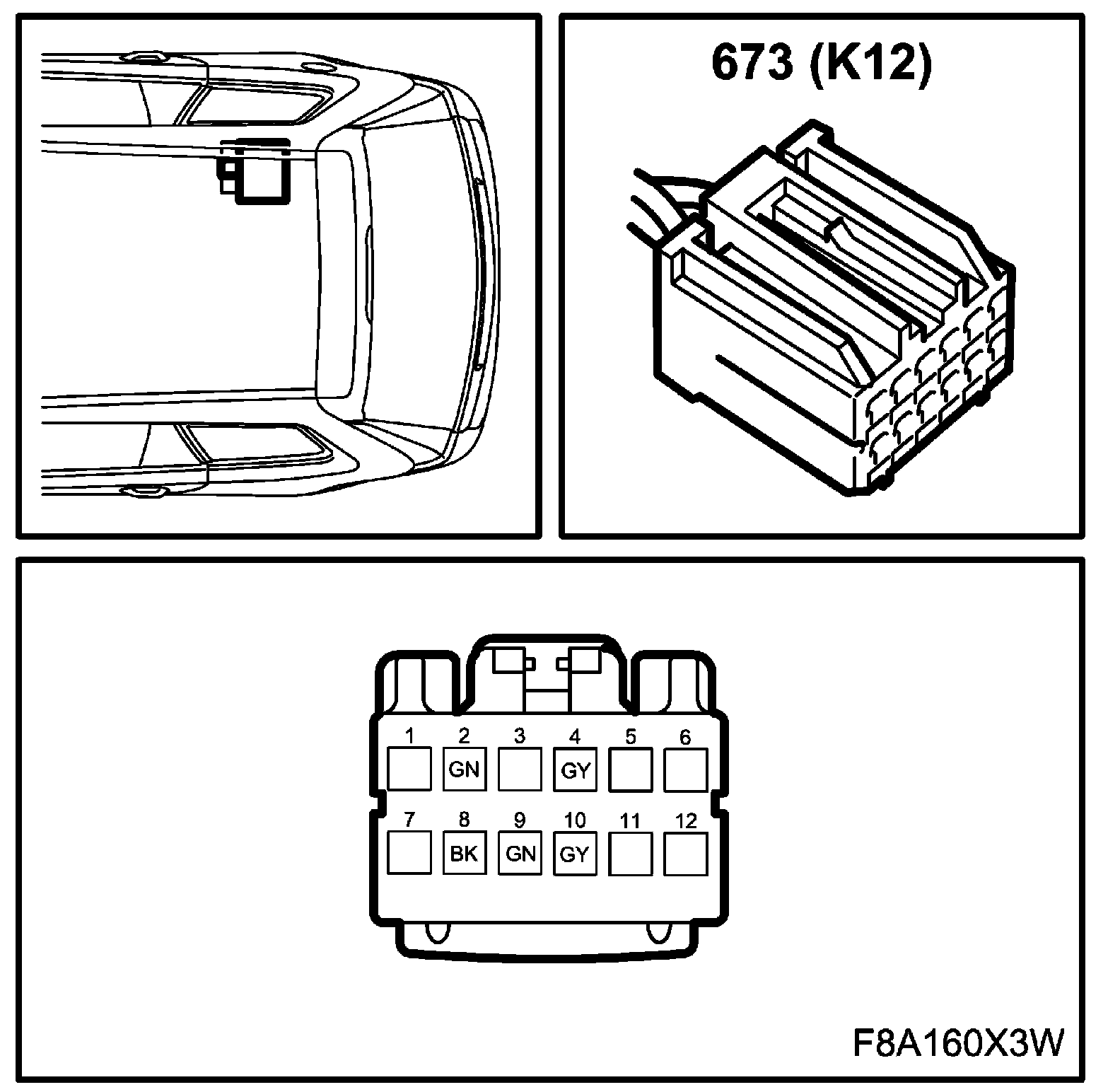

K12

OnStar Control Module (673):

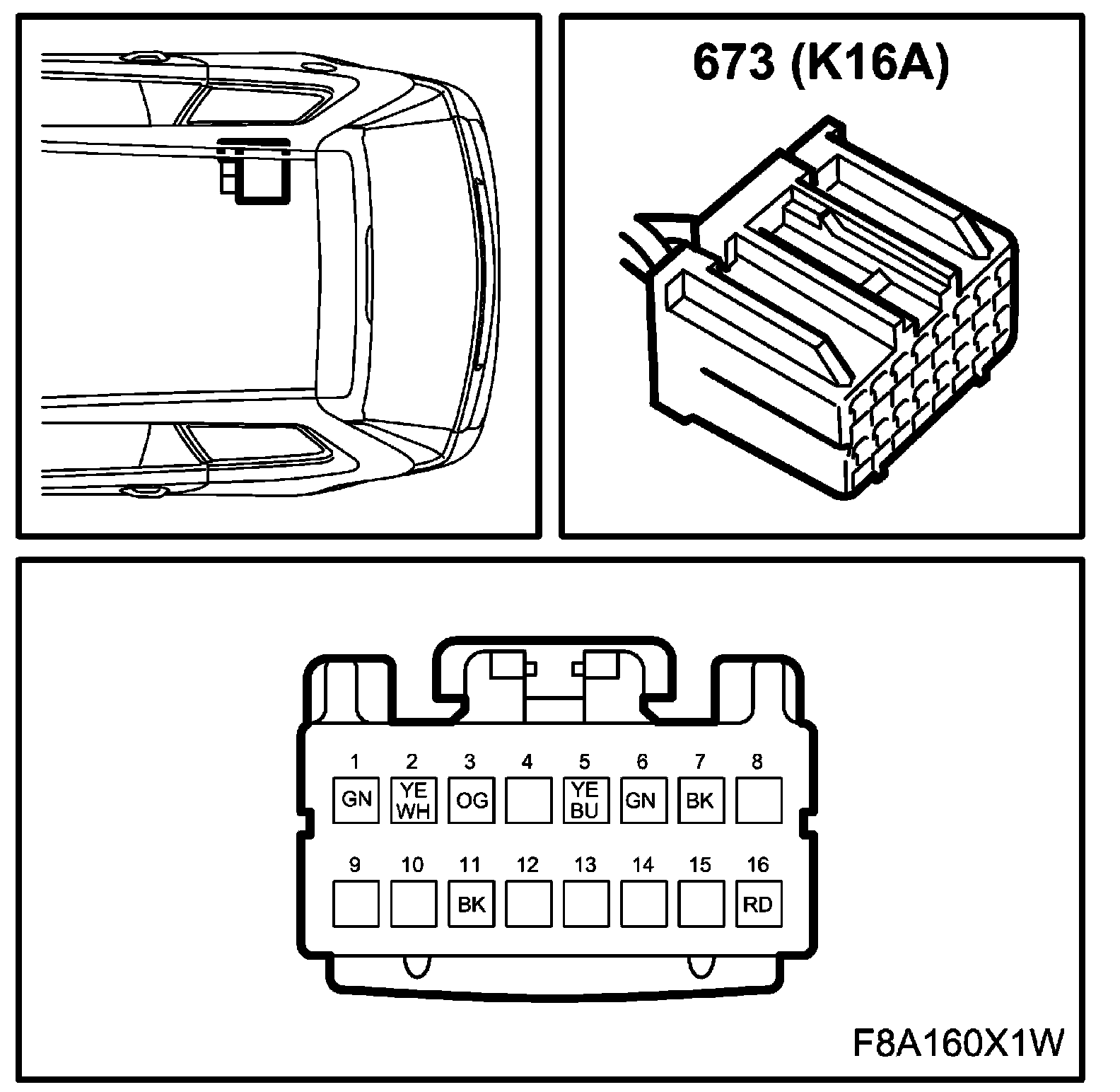

K16A

OnStar Control Module (673):

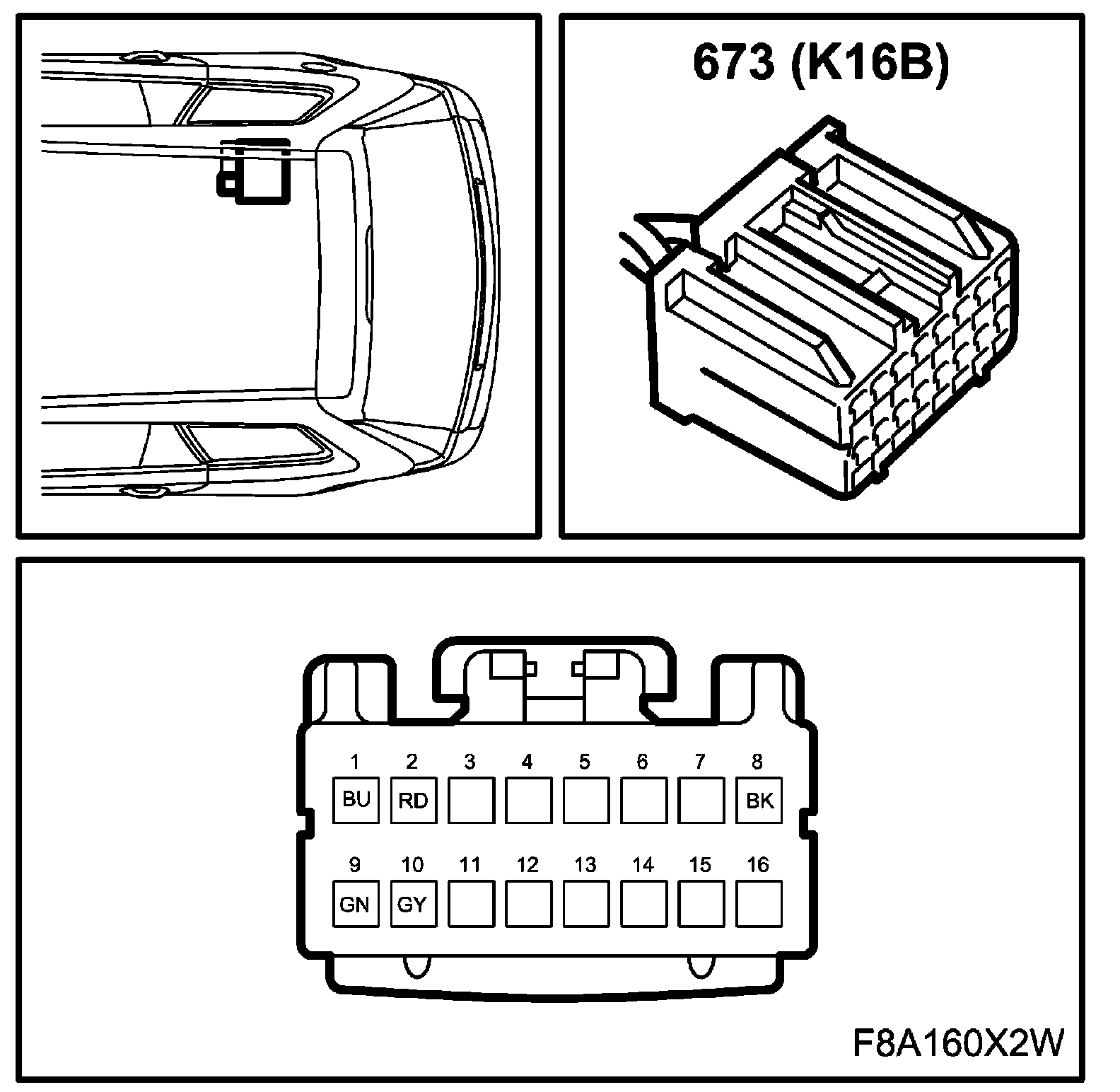

K16B

OnStar Control Module (673):
