Control Module, Rear Right Door (702RR)
Location:
in door
J1

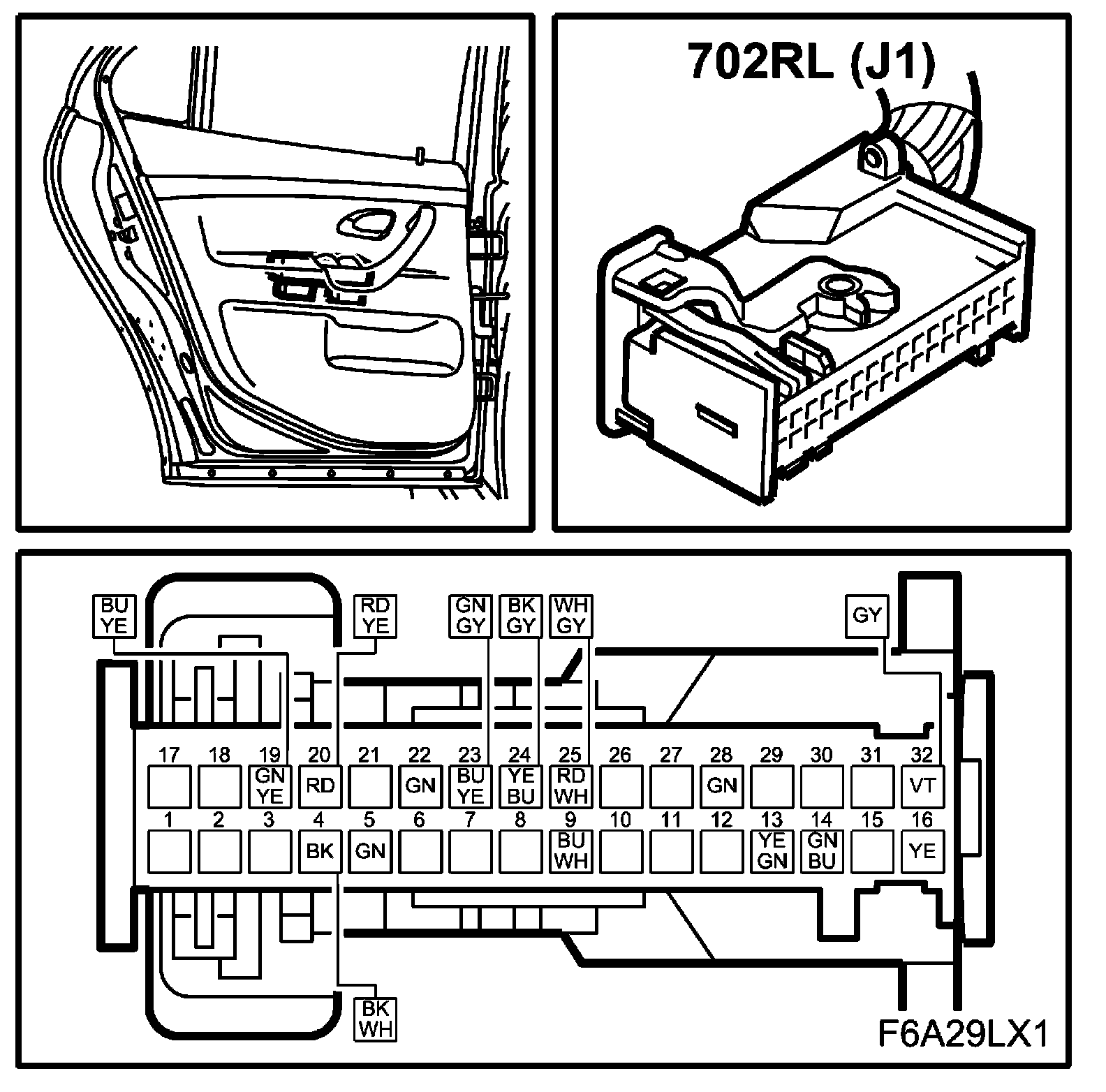

Control Module, Rear Left Door (702RL):
J2

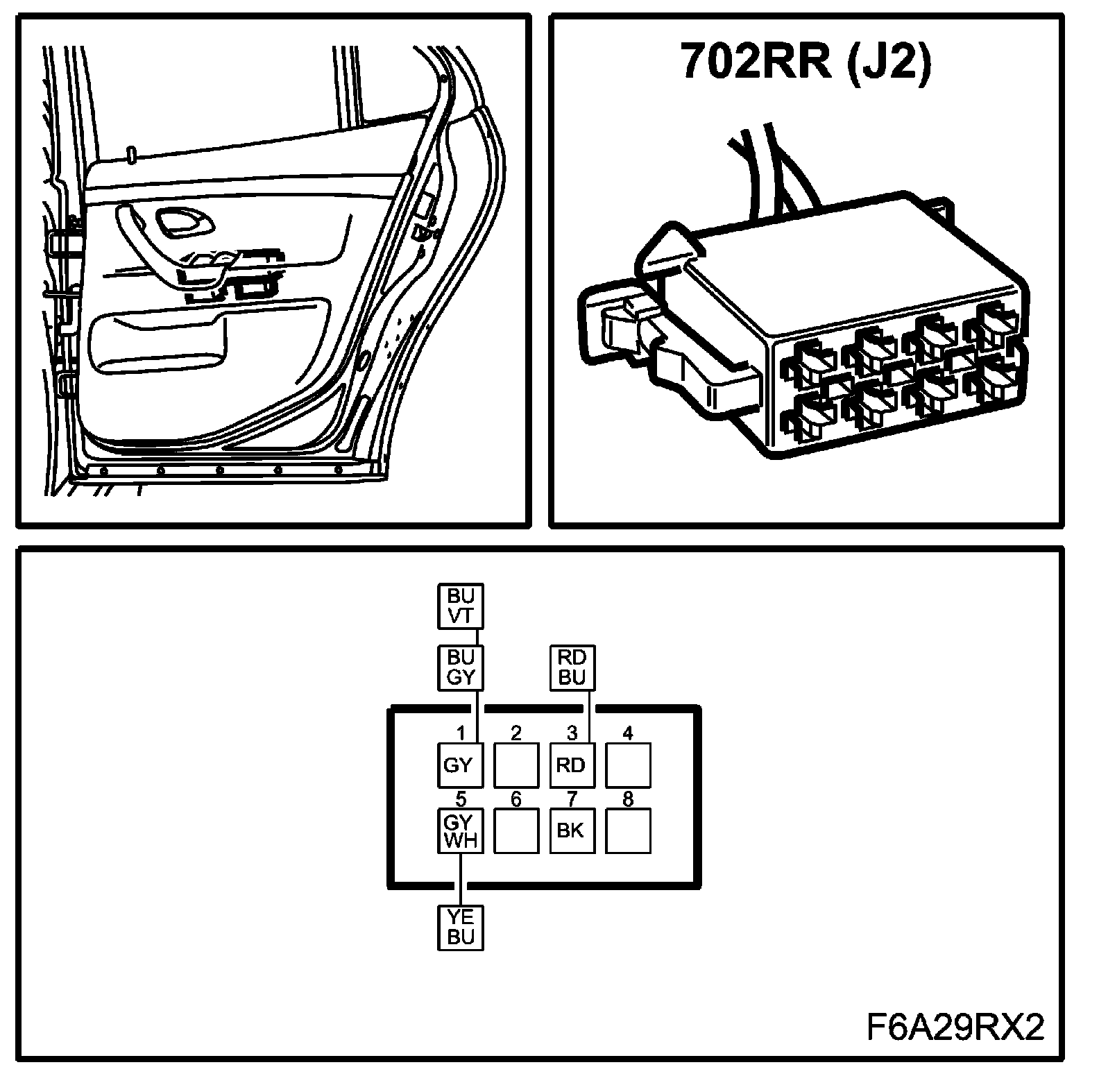

Control Module, Rear Right Door (702RR):
