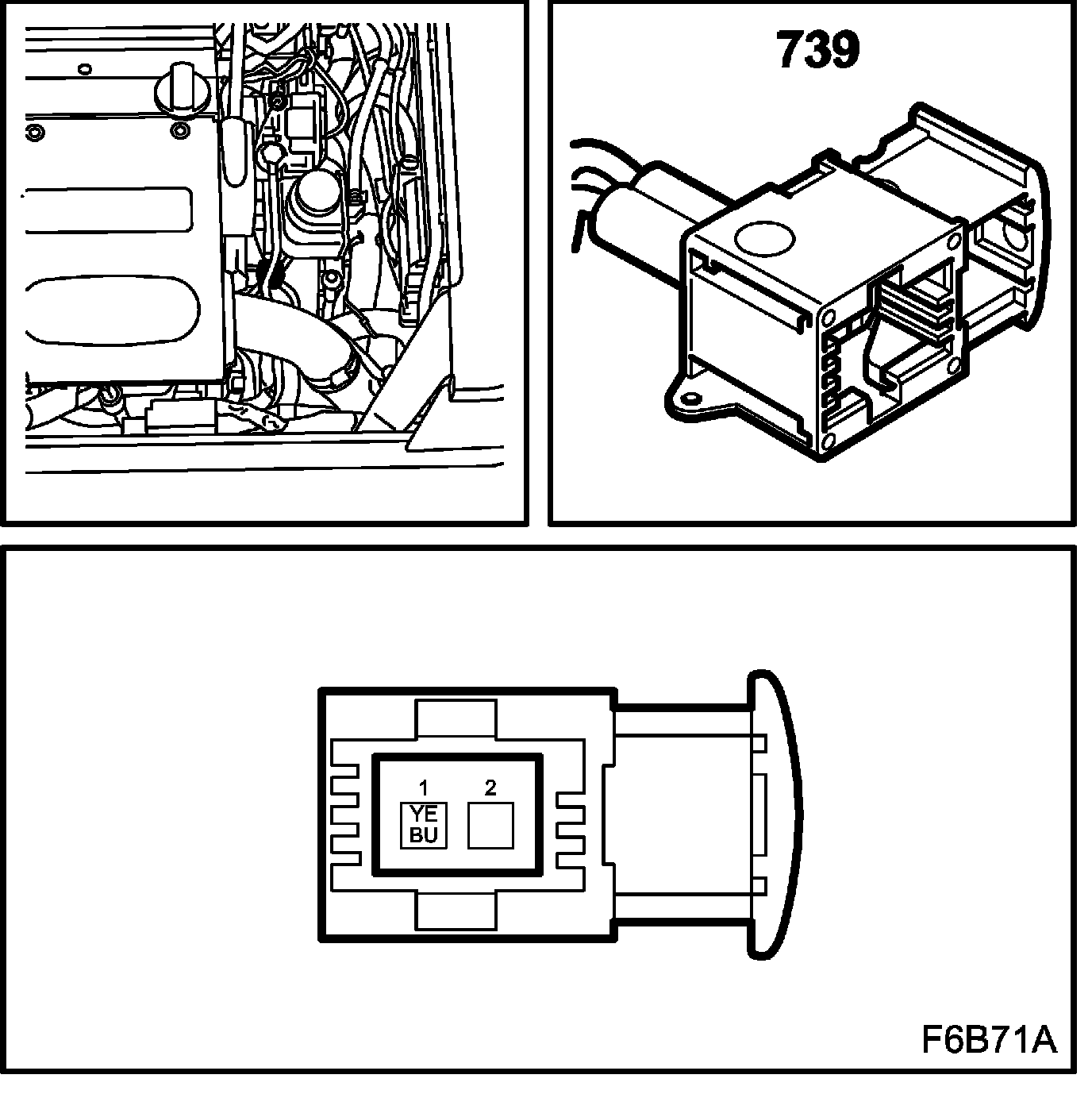

Power Steering Fluid Level Sensor/Switch
Location:
on the top of the servo pump
Power Steering Fluid Pressure Sensor (739):
