Control Module, Rear Left Door, CV (702RL)
Location:
inside the LH rear seat side trim

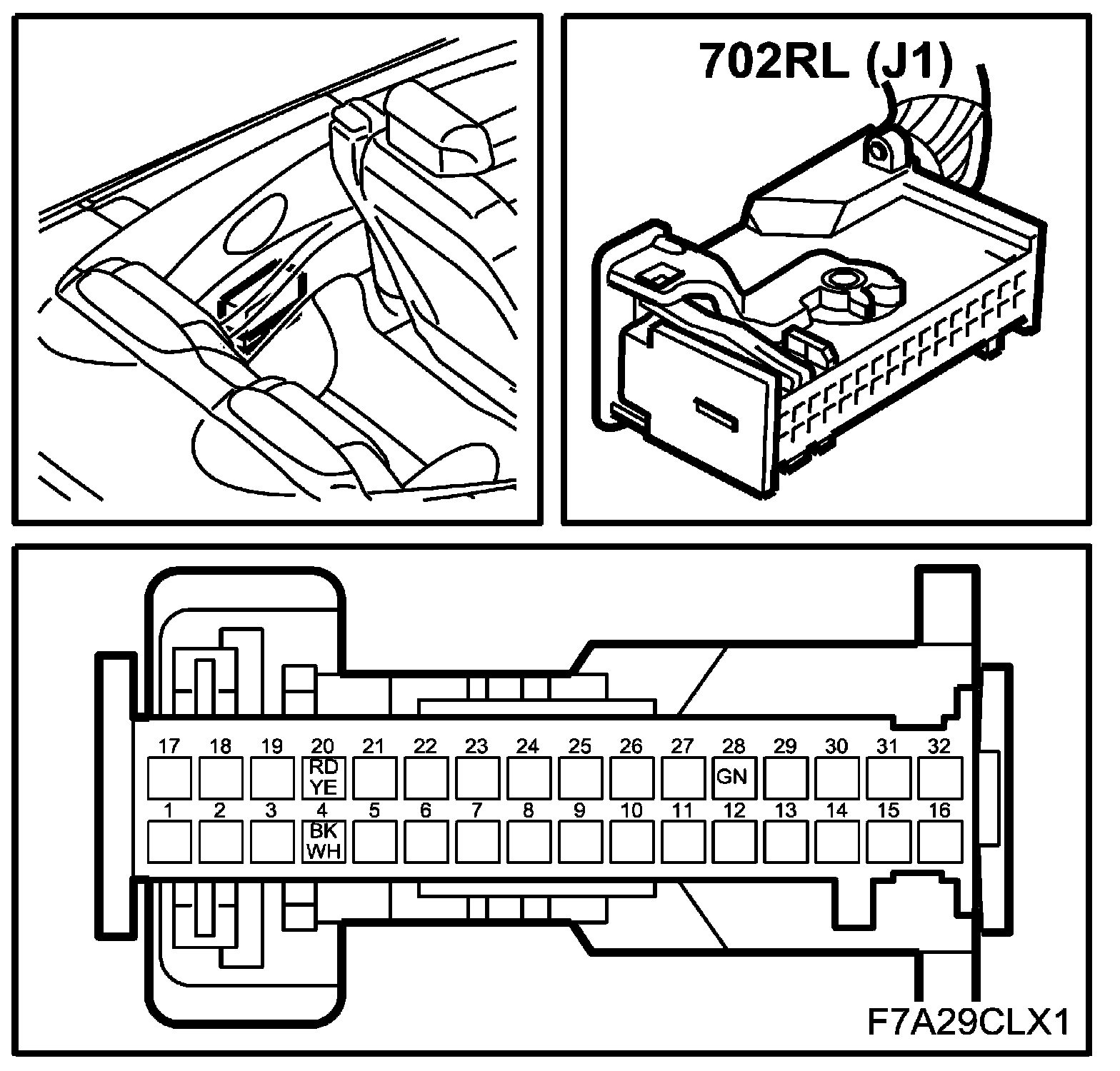

J1
Control Module, Rear Left Door, CV (702RL):

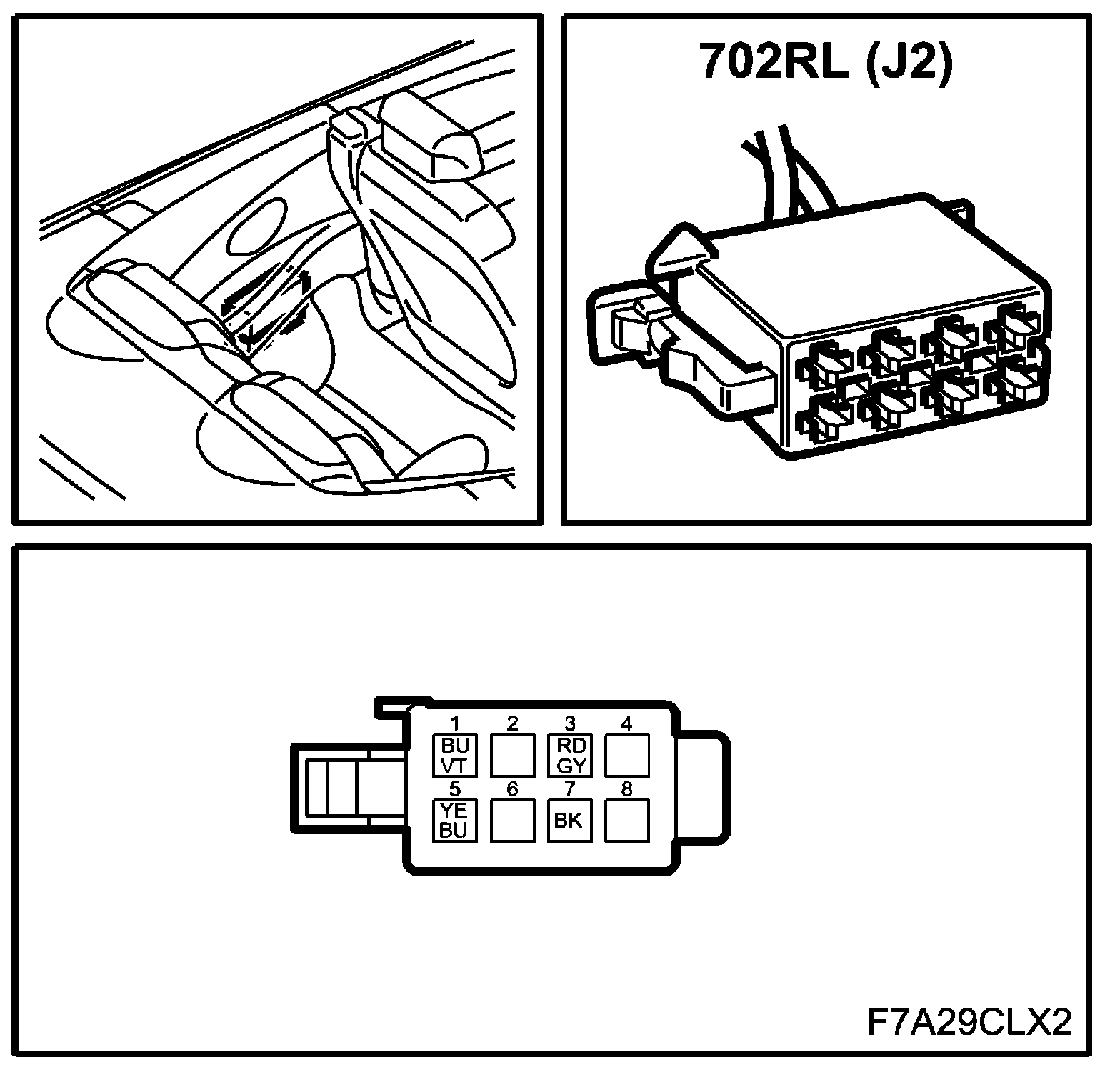

J2
Control Module, Rear Left Door, CV (702RL):
