Steering Control Module



Location: on the steering column below the steering wheel

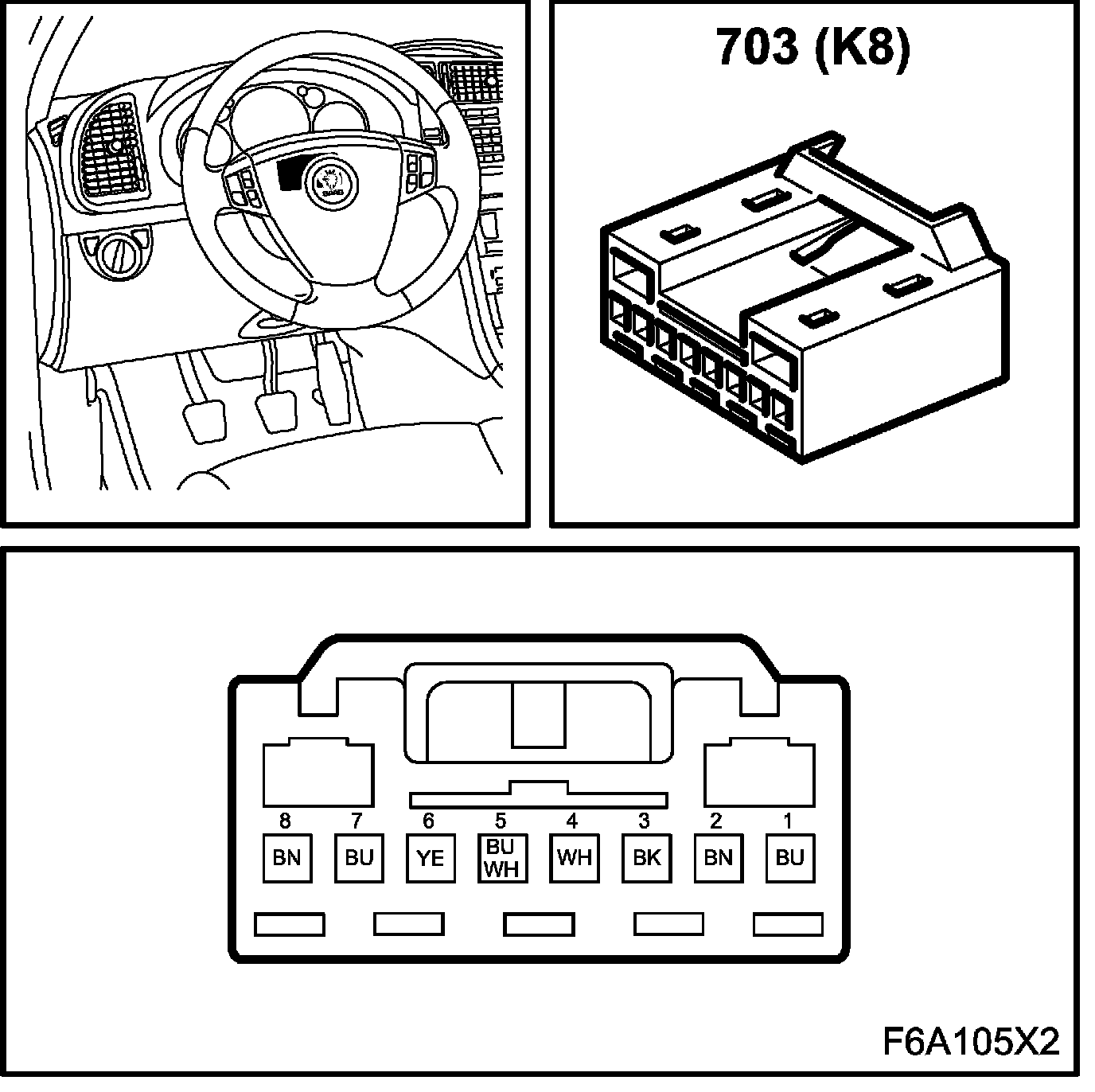

K8

Unit, Steering Wheeel Assembly (703):

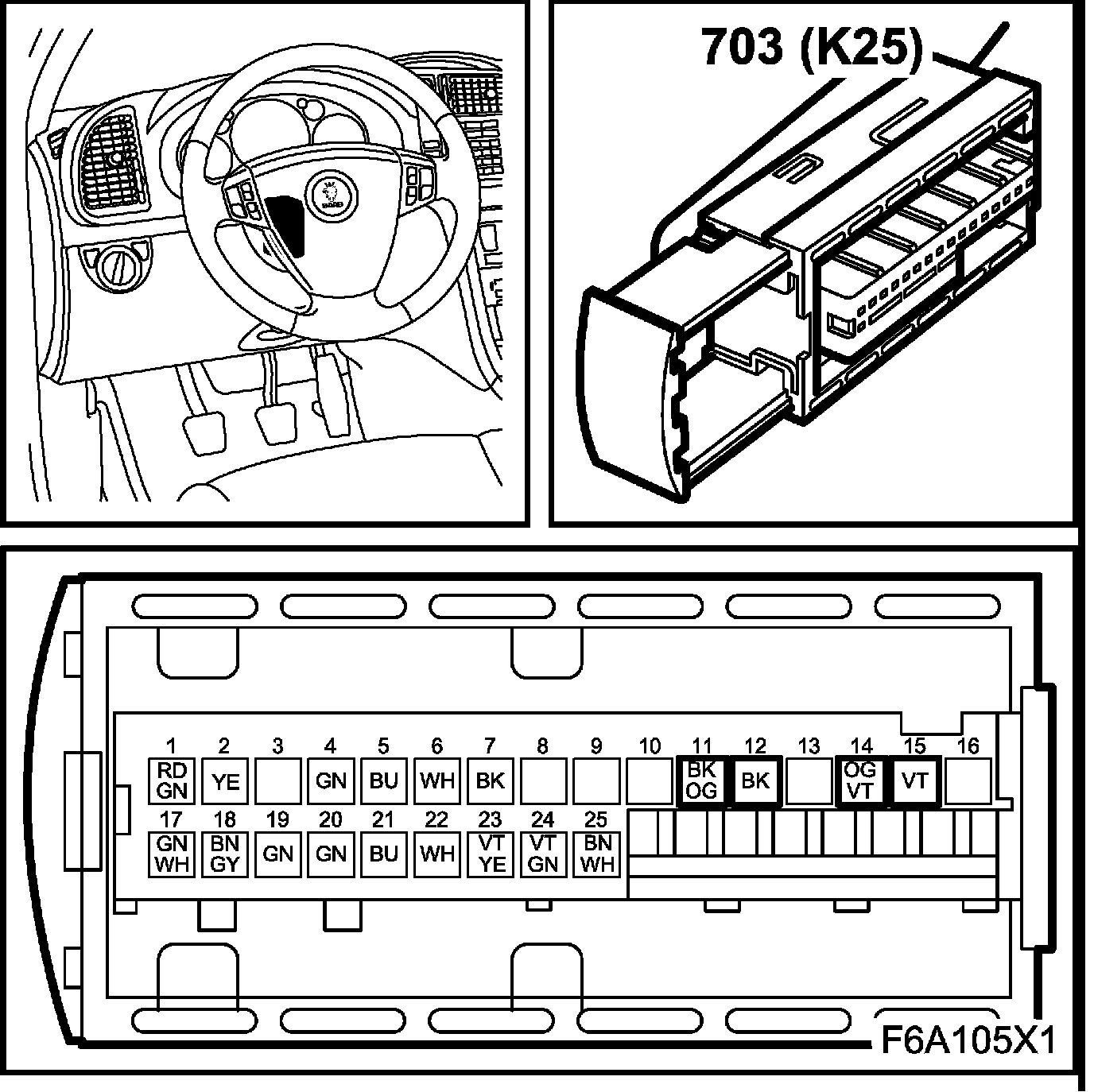

K25

Unit, Steering Wheeel Assembly (703):
