Control Assembly: Locations



Automatic Climate Control (216)

Location: in the center of the dashboard

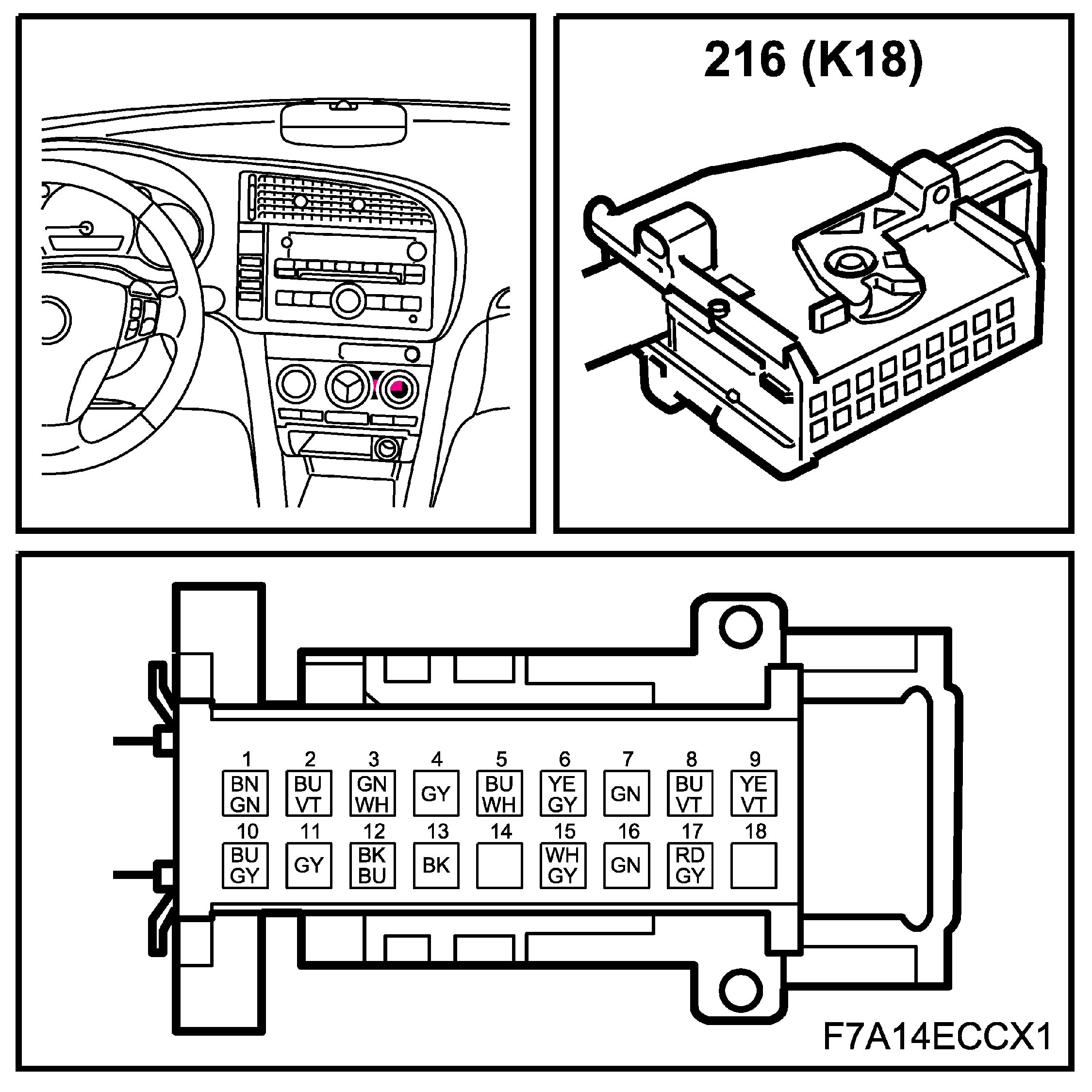

K18

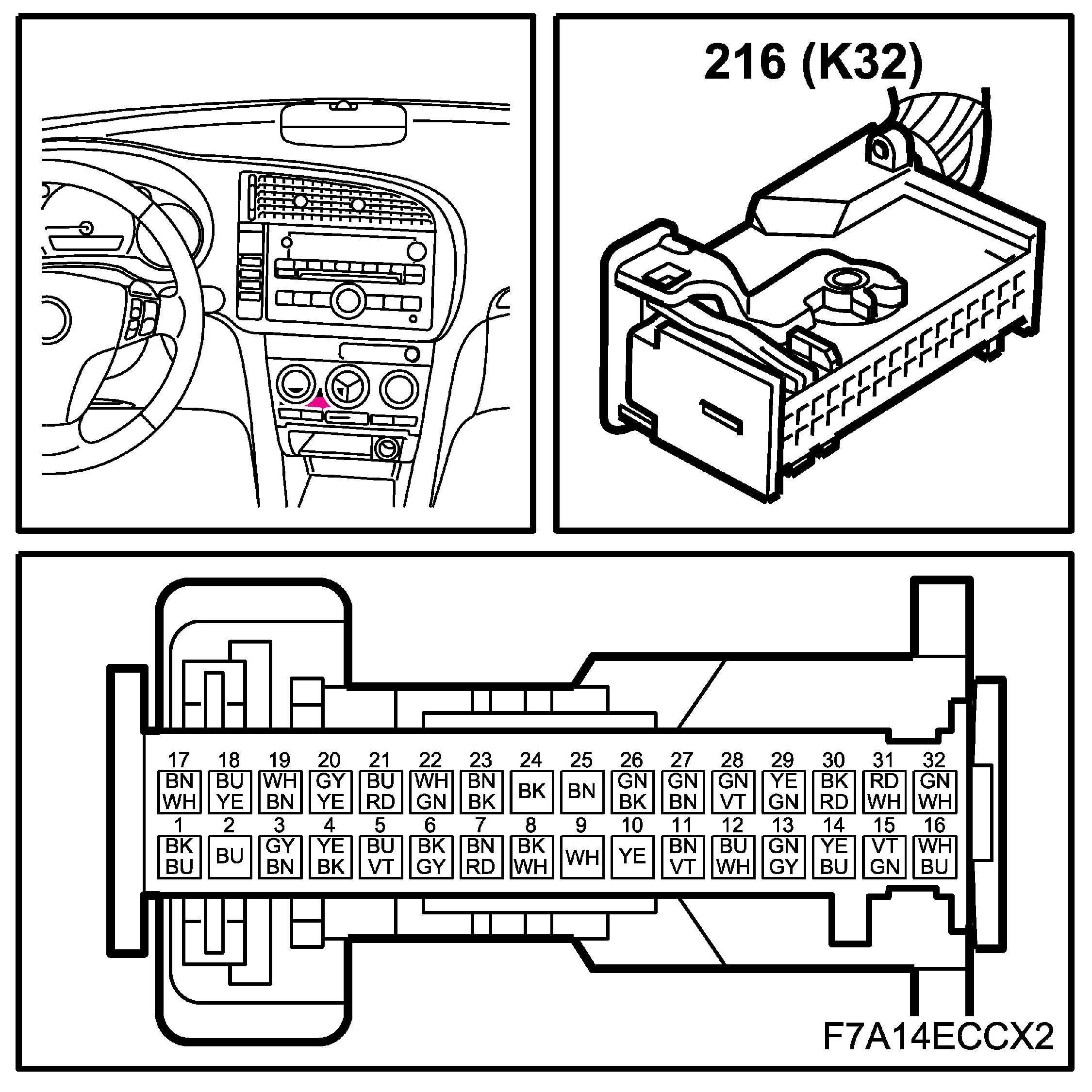

K32
