Fuel Level Sensor: Description and Operation

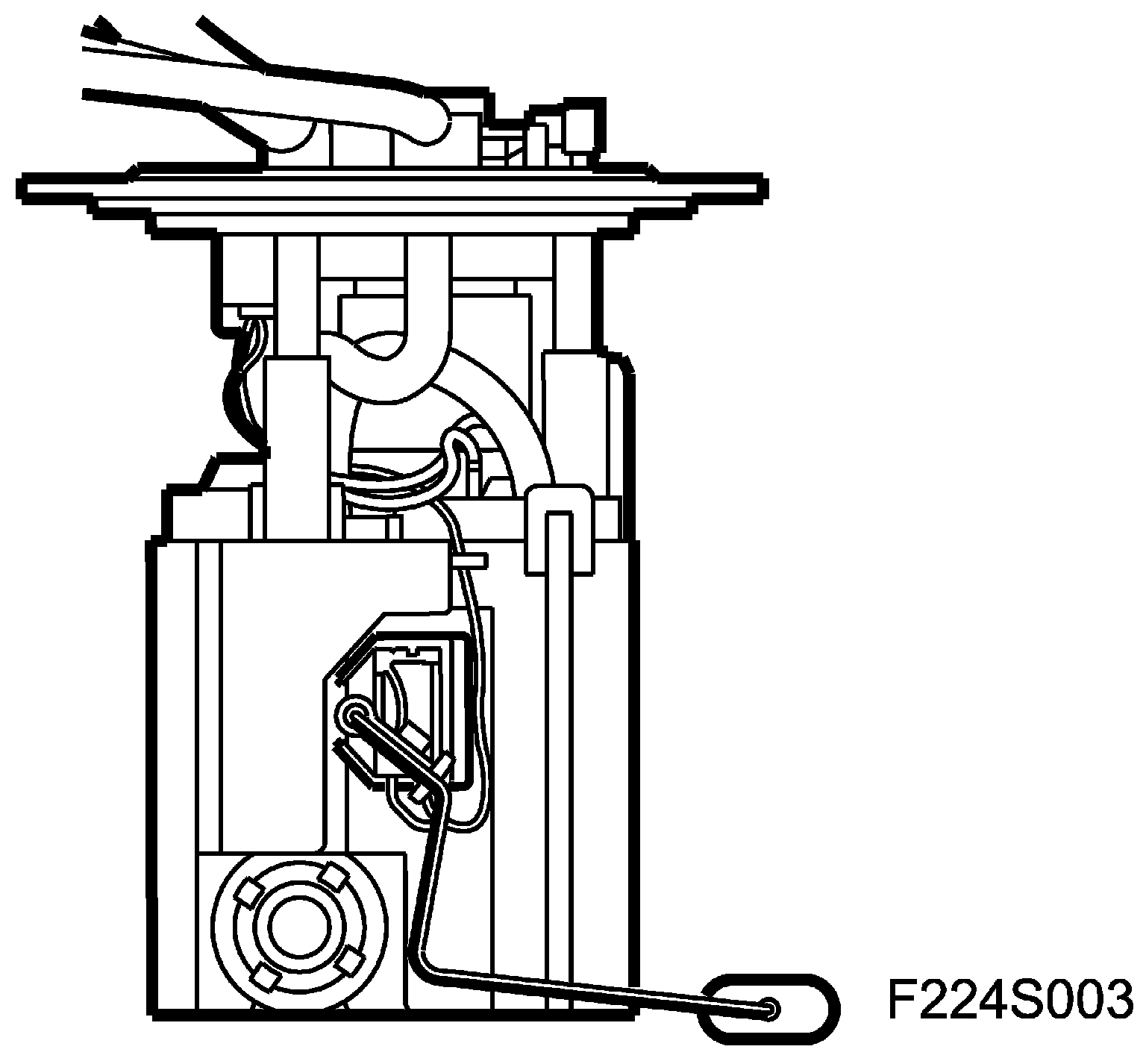

Fuel Level Sensor (46), T8





Main task
Informs ECM on how much fuel is in the tank. ECM then sends this information on the bus.

Type
Level sensor with variable resistance, whose value corresponds to the level at which the sensor float lies in the tank. Feed via pull-up in ECM.

Connection

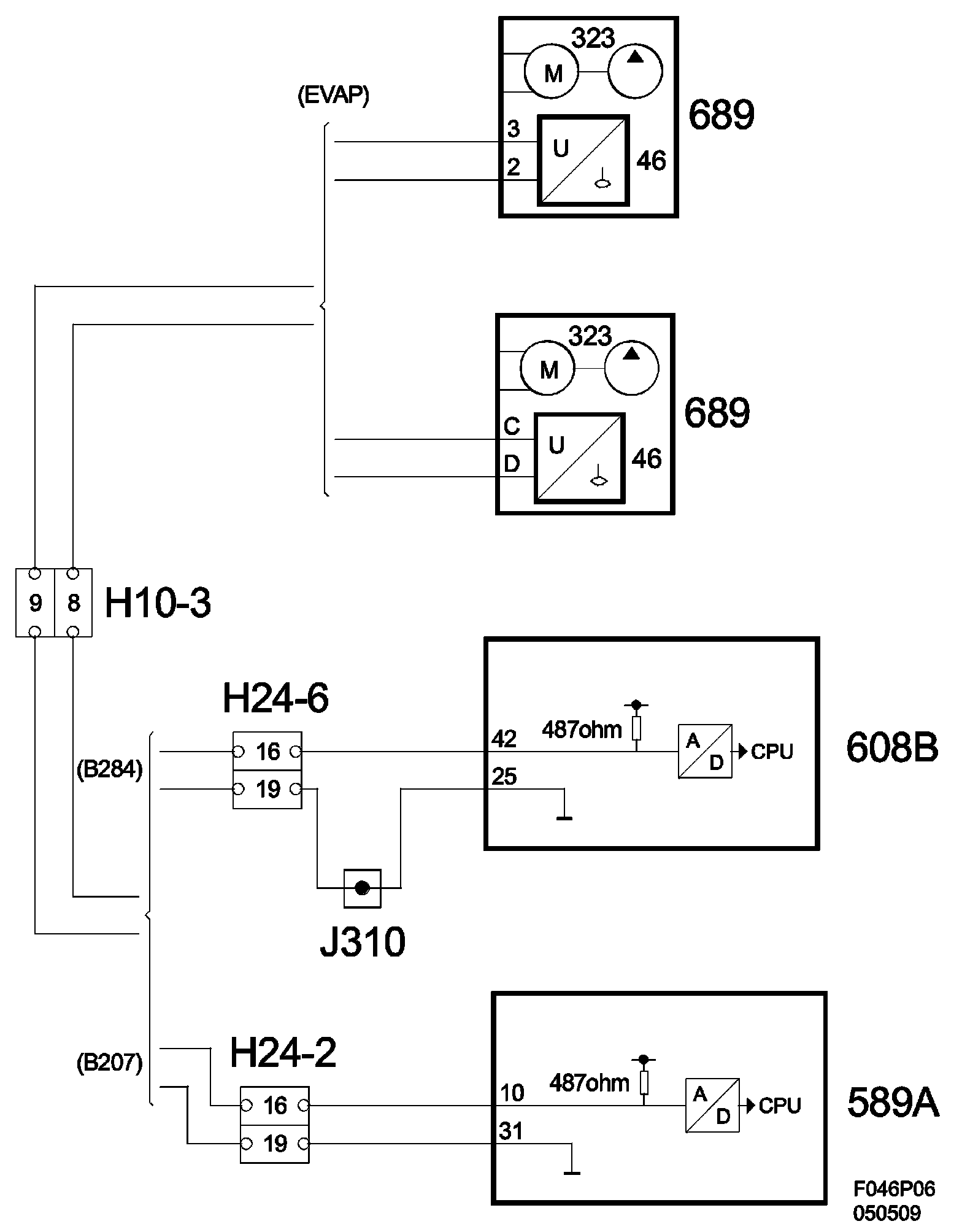

Diagram





Diagram BioPower
