Control Module, STC (565)

Control Module, STC (565)

Location:







Main Task

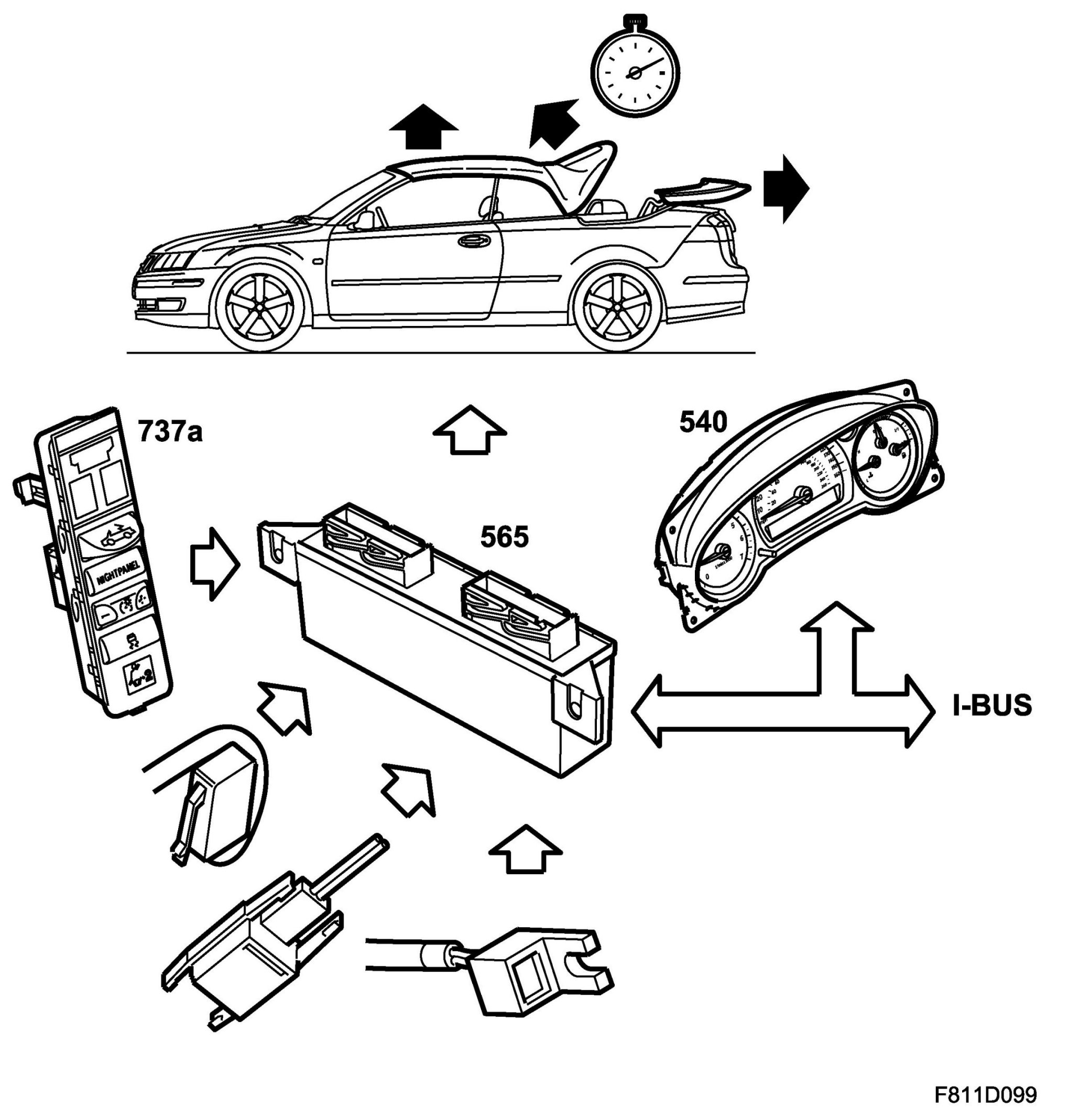

The driver requests the opening or closing of the soft top with the switch or the remote control. The STC control module operates the soft top hydraulically using information from a number of position sensors integrated in the mechanism's cylinders.

Type
The control module has a microprocessor. Refer to Control module, General description (link). The module is SPS programmable.

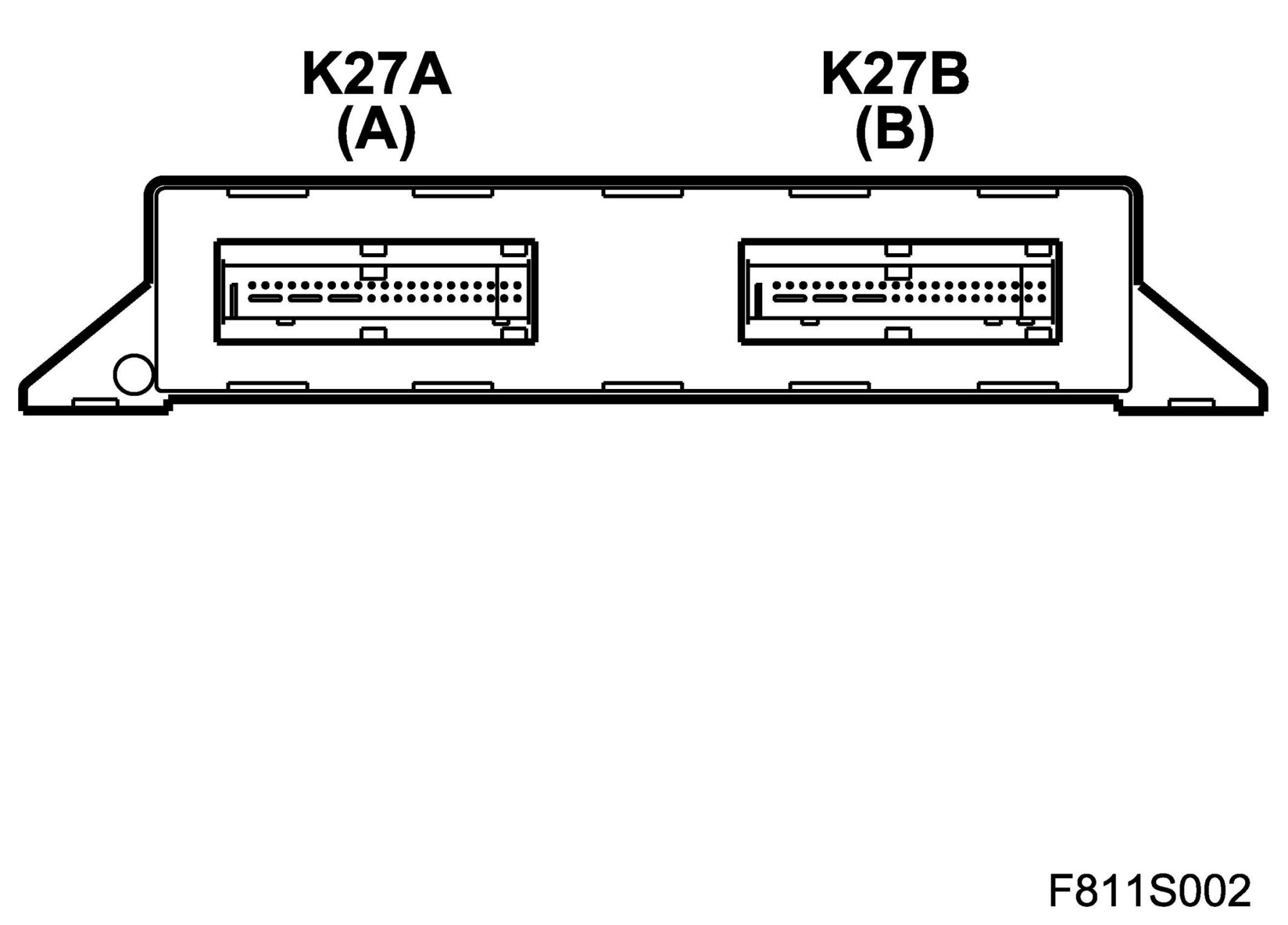

A. Connector K27A, vehicle

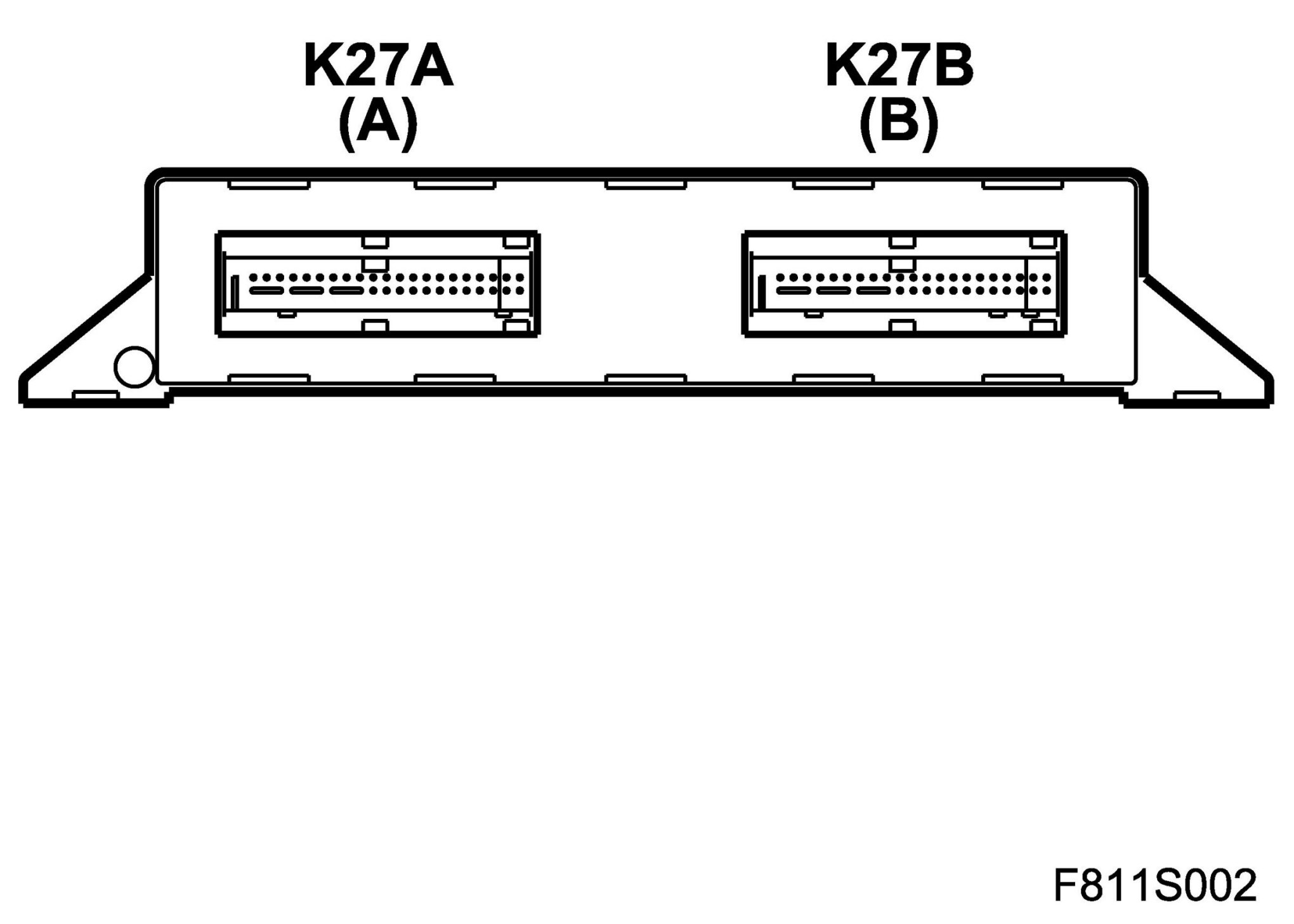

B. Connector K27B, soft top

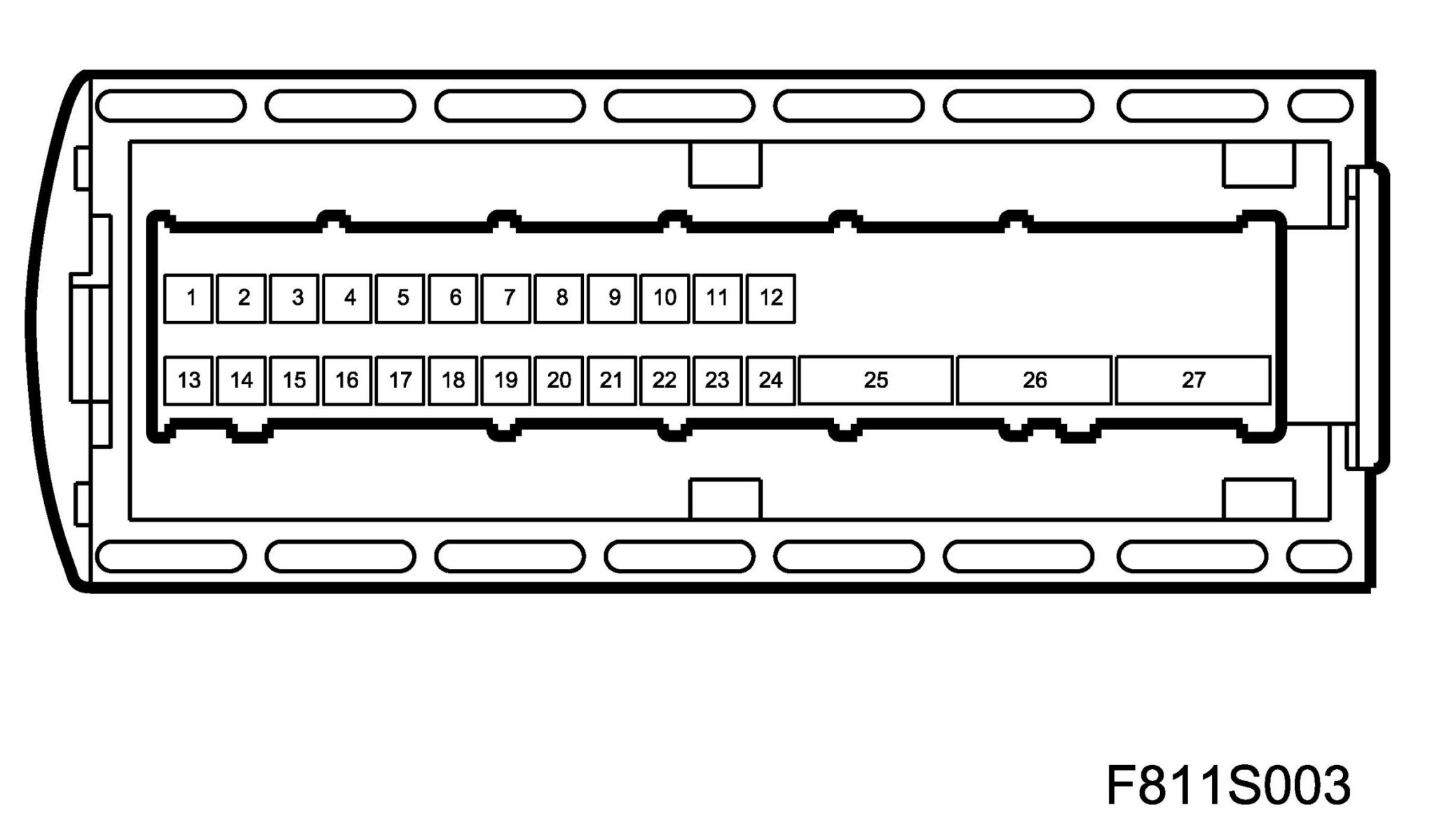

Connect

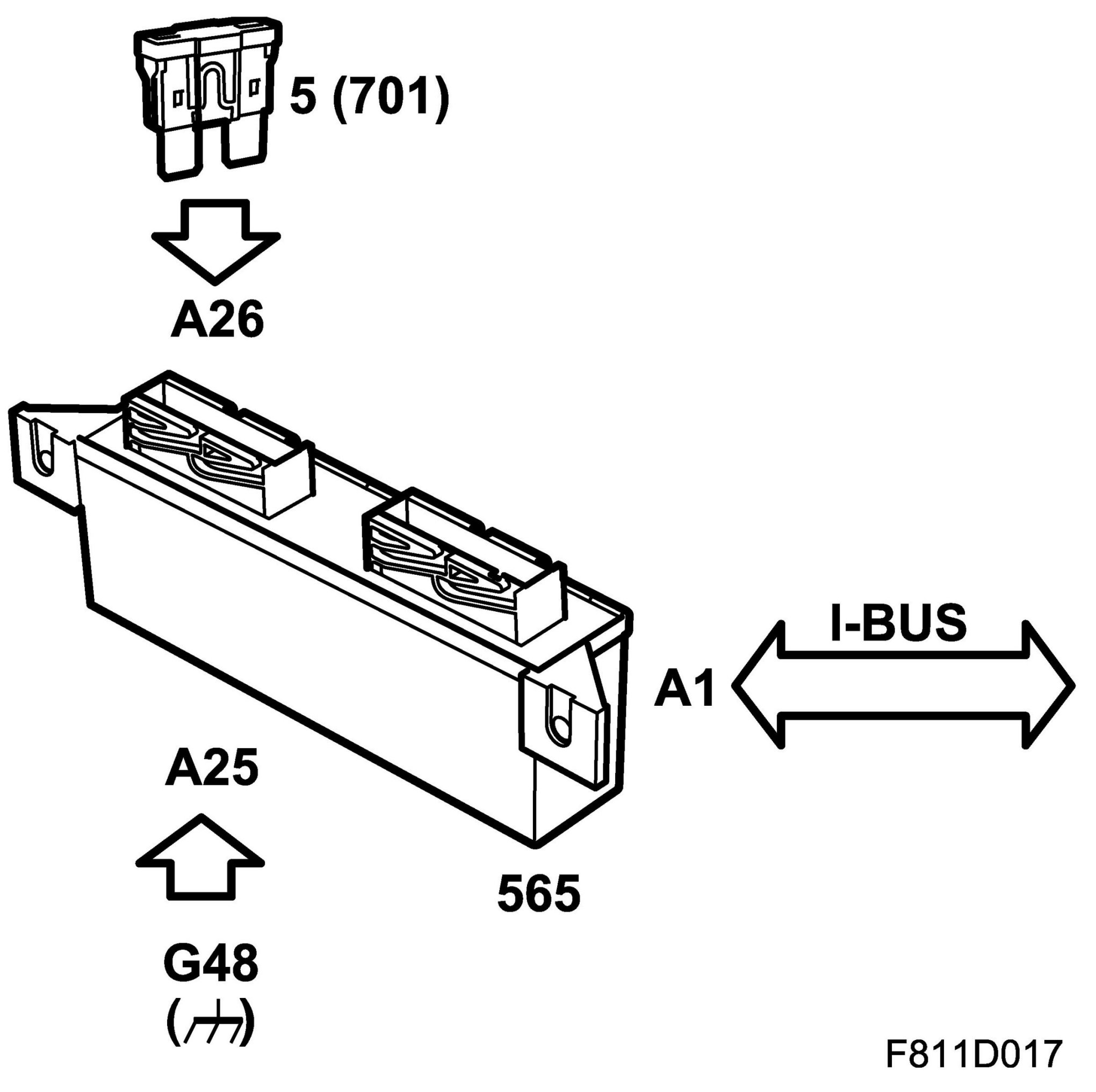

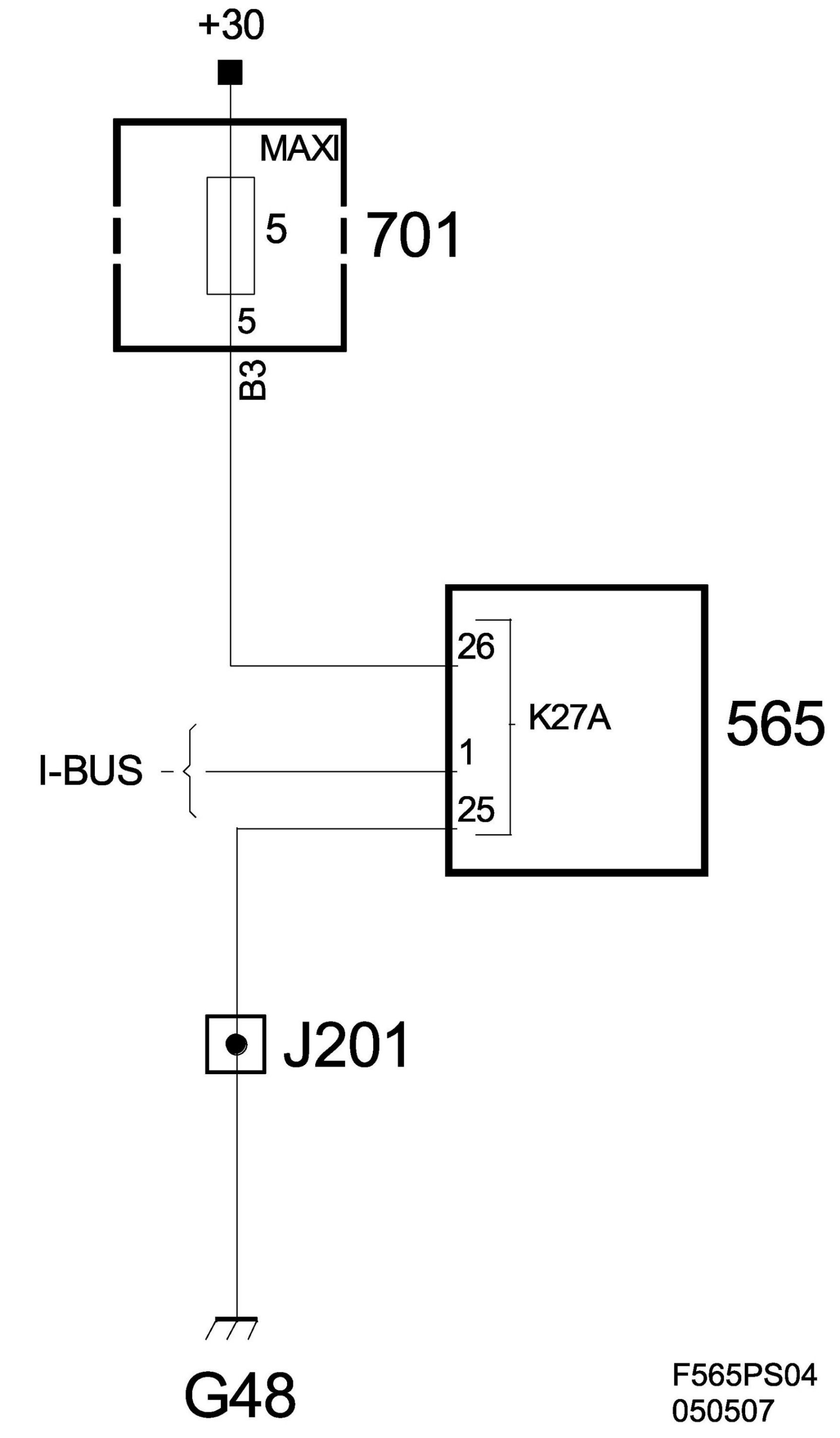

Diagram







Control Module, STC (565)

Control Module, STC (565):

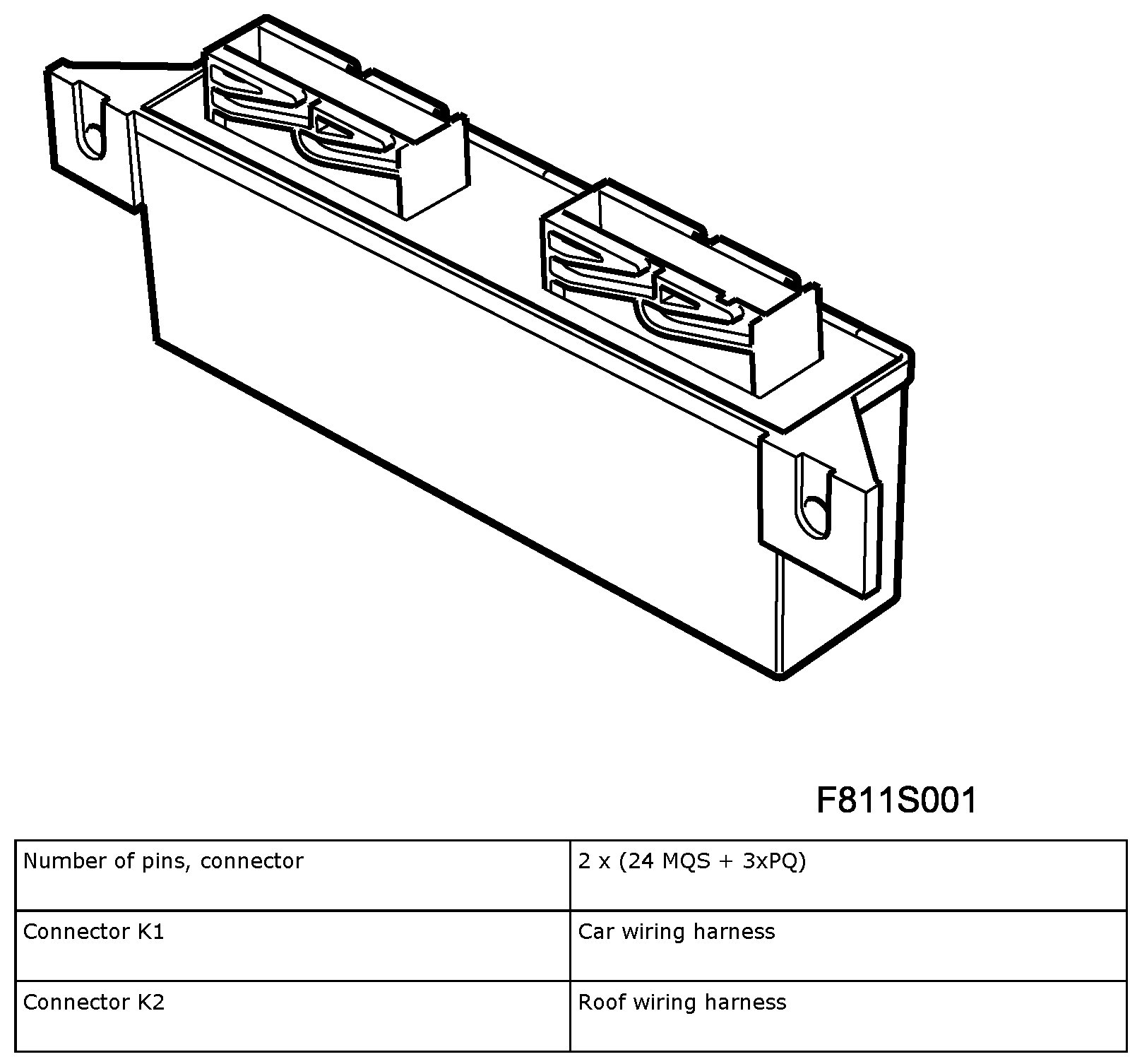

Connector K1







Connector K2
