To remove

Fig 1: Illustration For Steps 2-4
G05041662Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the dashboard.
  2. Remove the knee shield below the steering column assembly.
  3. Remove the knee shield on the passenger's side (certain cars).
  4. Remove the air duct on the right-hand and left-hand sides.
  5. Disconnect all ground connections from the steering wheel member.

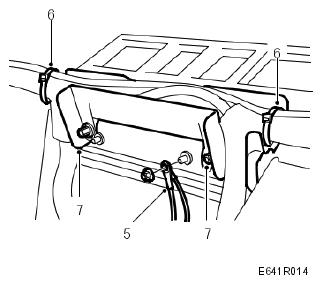

    Fig 2: Illustration For Steps 5-7
    G05041663Courtesy of SAAB-SCANIA OF AMERICA, INC.
  6. Snip the cable ties securing the wiring harness to the steering wheel member.
  7. Remove the wiring harness guide rail.
  8. Remove the steady bar between the steering wheel member's supports.

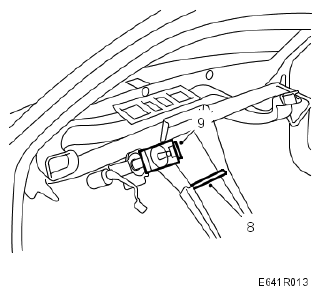

    Fig 3: Illustration For Steps 8-9
    G05041664Courtesy of SAAB-SCANIA OF AMERICA, INC.
  9. Unplug the coil spring unit's connectors.
  10. Remove the pinch bolt securing the steering column shaft to the steering gear, press the shaft upwards and withdraw it from the steering gear.

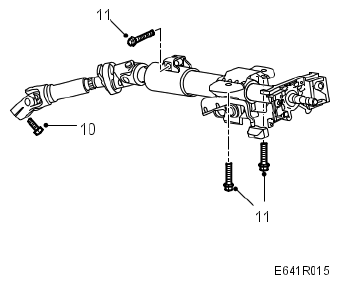

    Fig 4: Illustration For Steps 10-11
    G05041665Courtesy of SAAB-SCANIA OF AMERICA, INC.
    WARNING: Under no circumstances  should the steering column shaft be separated or taken apart.
  11. Undo the bolts securing the steering column assembly to the steering wheel member and remove the assembly.
  12. Unscrew the main fuse box retaining bolts.

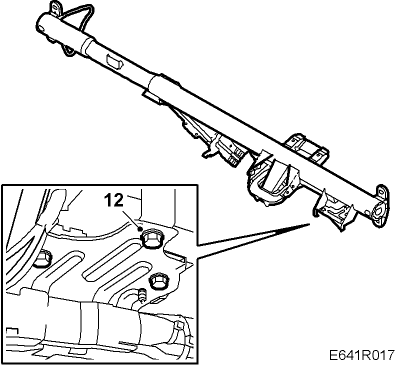

    Fig 5: Identifying Main Fuse Box Retaining Bolts
    G05041666Courtesy of SAAB-SCANIA OF AMERICA, INC.
  13. Unscrew the bolts retaining the pedal brackets.

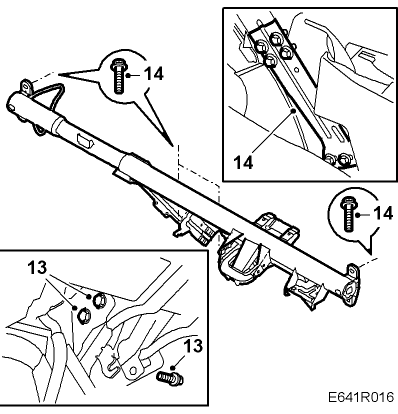

    Fig 6: Illustration For Steps 13-14
    G05041667Courtesy of SAAB-SCANIA OF AMERICA, INC.
  14. Remove the steering wheel member retaining bolts and lift out the member.
