To fit

  1. Fit the steering wheel on the steering shaft.
    NOTE: Make sure the steering wheel fits the coding on the steering shaft.
    IMPORTANT: Take care when plugging in the connector so as not to damage or press out the pins/sleeves in the connector.
  2. Fit the connector of the contact roller.

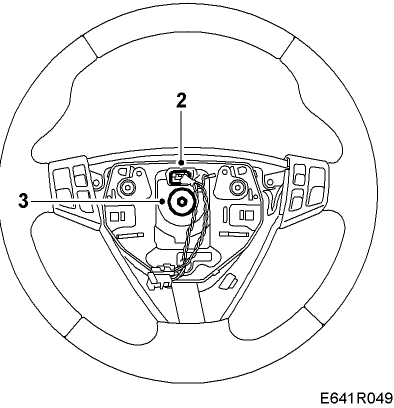

    Fig 1: Illustration For Steps 2-3
    G05041679Courtesy of SAAB-SCANIA OF AMERICA, INC.
  3. Fit the nut.

    Tightening torque 39 Nm (28.8 lbf ft)

  4. Fit driver's airbag (333D). See AIRBAG, DRIVER (333D) (2006) or AIRBAG, DRIVER (333D) (2007) .
