To remove

  1. Put the ignition in OFF position.
  2. Remove driver's airbag (333D). See AIRBAG, DRIVER (333D) (2006) or AIRBAG, DRIVER (333D) (2007) .
  3. Turn the steering wheel so that the wheels are in the straight-ahead position.
  4. Slacken the steering nut a few turns and pull the steering wheel so it releases from the steering column. Remove the steering wheel nut.
    IMPORTANT: Take care when releasing the locking mechanism on the connector so as not to damage the connector. Pull the halves straight apart to avoid bending the pins.
    For further information regarding connectors, refer to Connectors, handling and inspection.

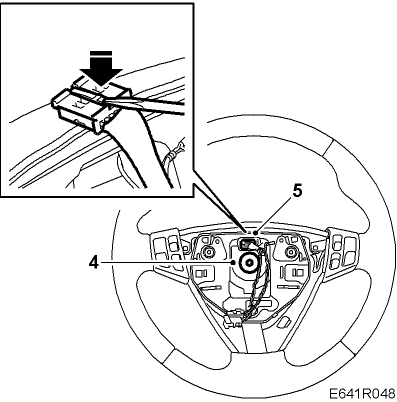

    Fig 1: Illustration For Steps 4-5
    G05041678Courtesy of SAAB-SCANIA OF AMERICA, INC.
  5. Remove the connector of the contact roller.
  6. Remove the steering wheel.
