Crimp Connection J142, Instrument Harness
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Crimp Connection J142, Instrument Harness

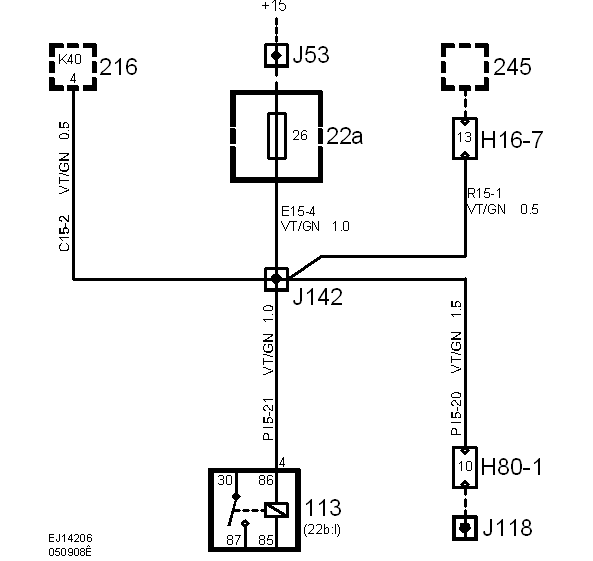

Fig 1: Identifying Crimp Connection J142, Instrument Harness
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
