Intake Manifold

Torque Specifications

Throttle Body
Throttle Body Bolts 10 Nm (89 inch lbs.)
Throttle Body Nuts 10 Nm (89 inch lbs.)
Throttle Body Studs 6 Nm (53 inch lbs.)

Intake Manifold

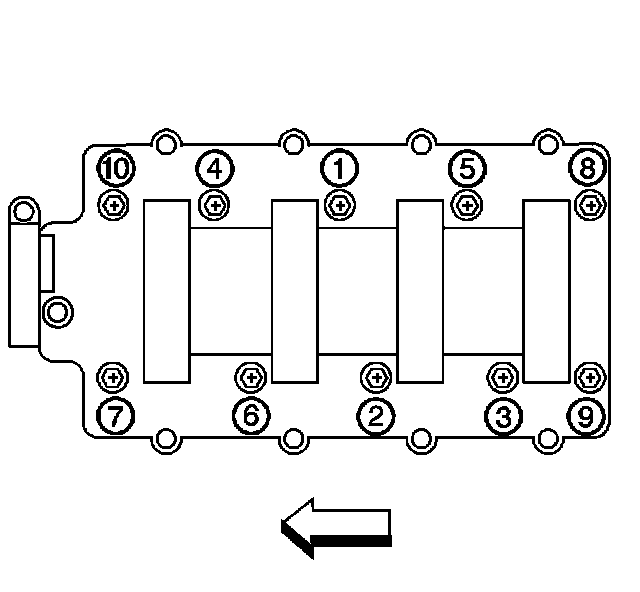

^ First Pass in Sequence 5 Nm (44 in. lbs.)
^ Final Pass in Sequence 10 Nm (89 in. lbs.)
