Home >> Saab >> 2008 >> 9-5 (9600) L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Parking Assist Control Module >> Control Module, SPA, Switch A (630A) >> 5D

April 5, 2026: LEMON Manuals is launched! Read the announcement.

5D

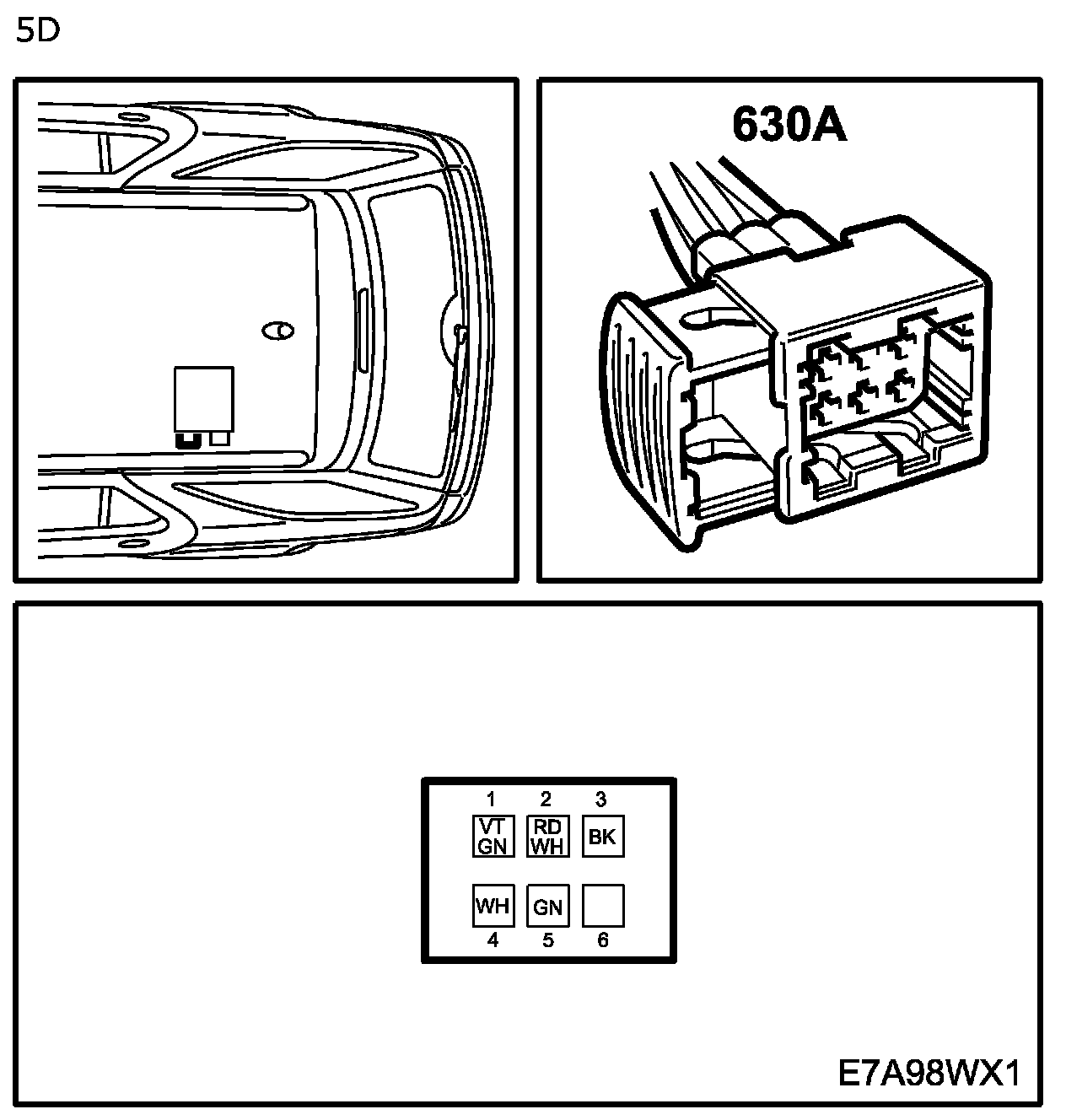

Control Module, SPA, Switch A (630A), 5D:
