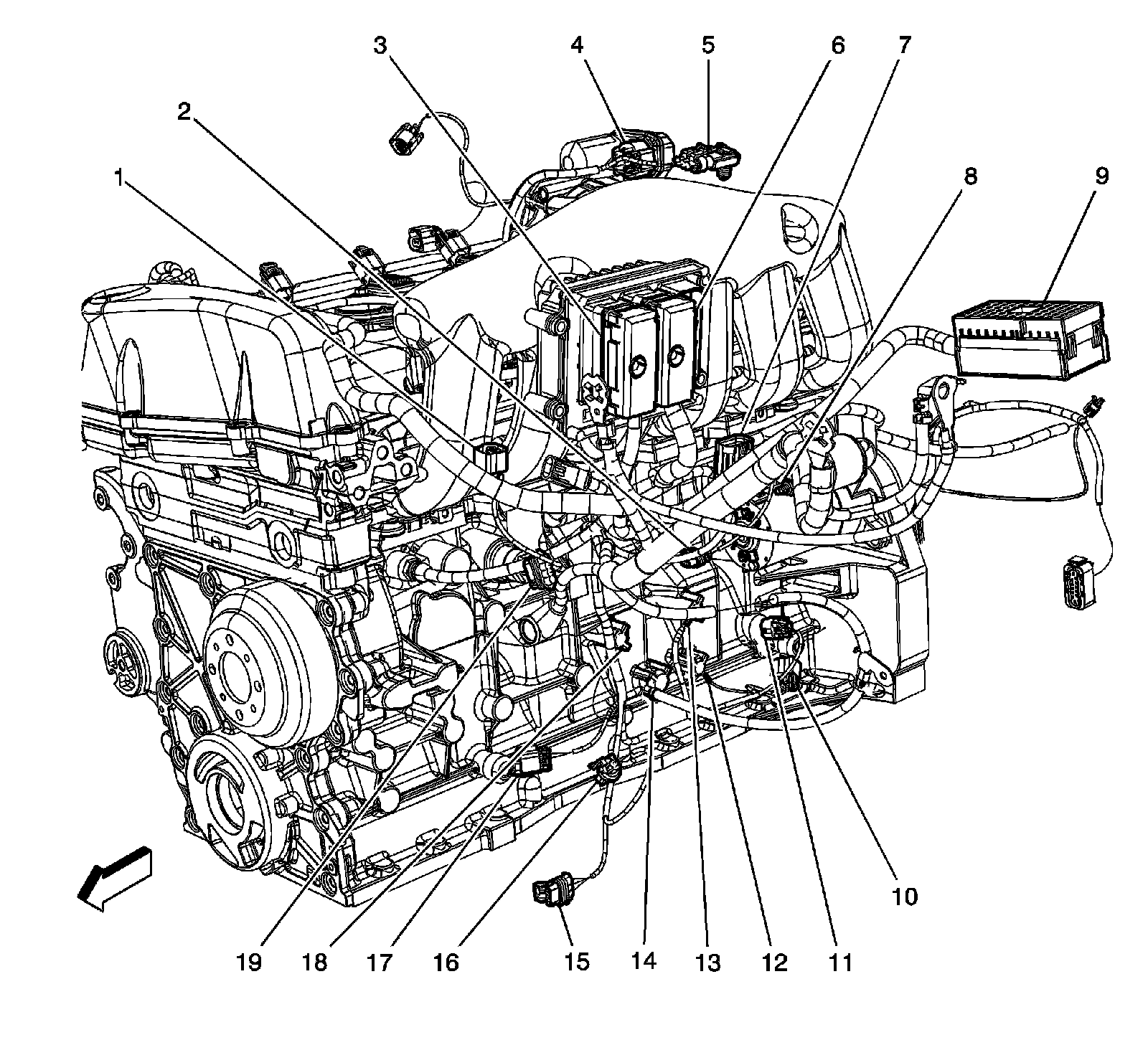

Engine Harness Routing - Left Front (4.2L)




1 - Engine Coolant Temperature (ECT) Sensor
2 - Evaporative Emission (EVAP) Canister Purge Solenoid
3 - Powertrain Control Module (PCM) C3
4 - Throttle Body
5 - Manifold Absolute Pressure (MAP) Sensor
6 - Powertrain Control Module (PCM) C2
7 - C100
8 - Starter
9 - Fuse Block - Underhood C1
10 - Knock Sensor (KS) 2 - Rear
11 - Crankshaft Position (CKP) Sensor
12 - G109
13 - G101
14 - G110
15 - A/C Compressor Clutch Assembly
16 - A/C Refrigerant Pressure Sensor
17 - Knock Sensor (KS) 1 - Front
18 - G107
19 - Generator
