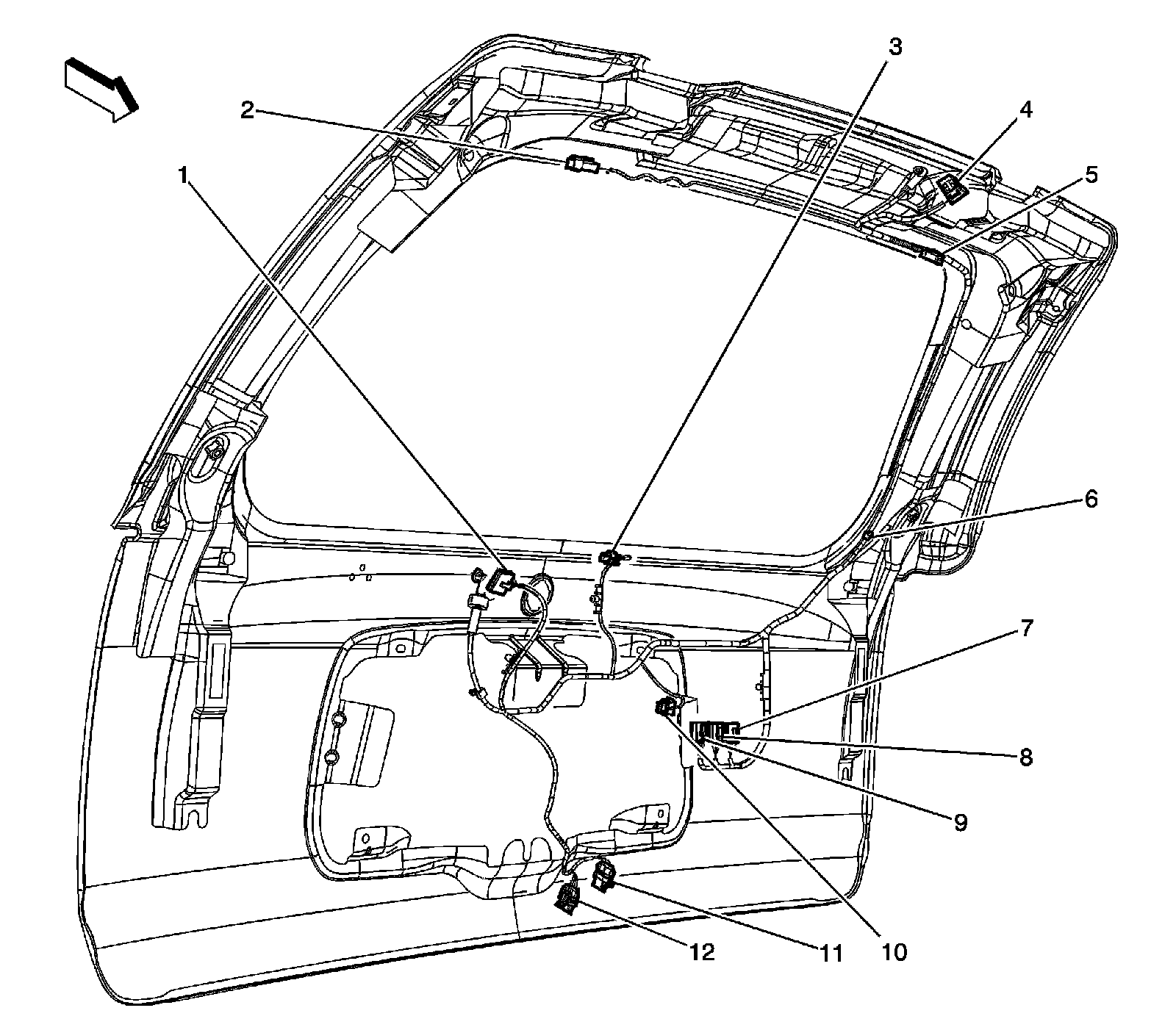

Liftgate Harness Routing




1 - Rear Window Wiper Motor
2 - C905 (C49)
3 - Liftglass Ajar Switch
4 - C900
5 - C904 (C49)
6 - S901
7 - Liftgate Module (LGM) C3
8 - Liftgate Module (LGM) C2
9 - Liftgate Module (LGM) C1
10 - C901
11 - Liftgate Latch Assembly C2
12 - Liftgate Latch Assembly C1
