Impact Sensor




Component Connector End Views

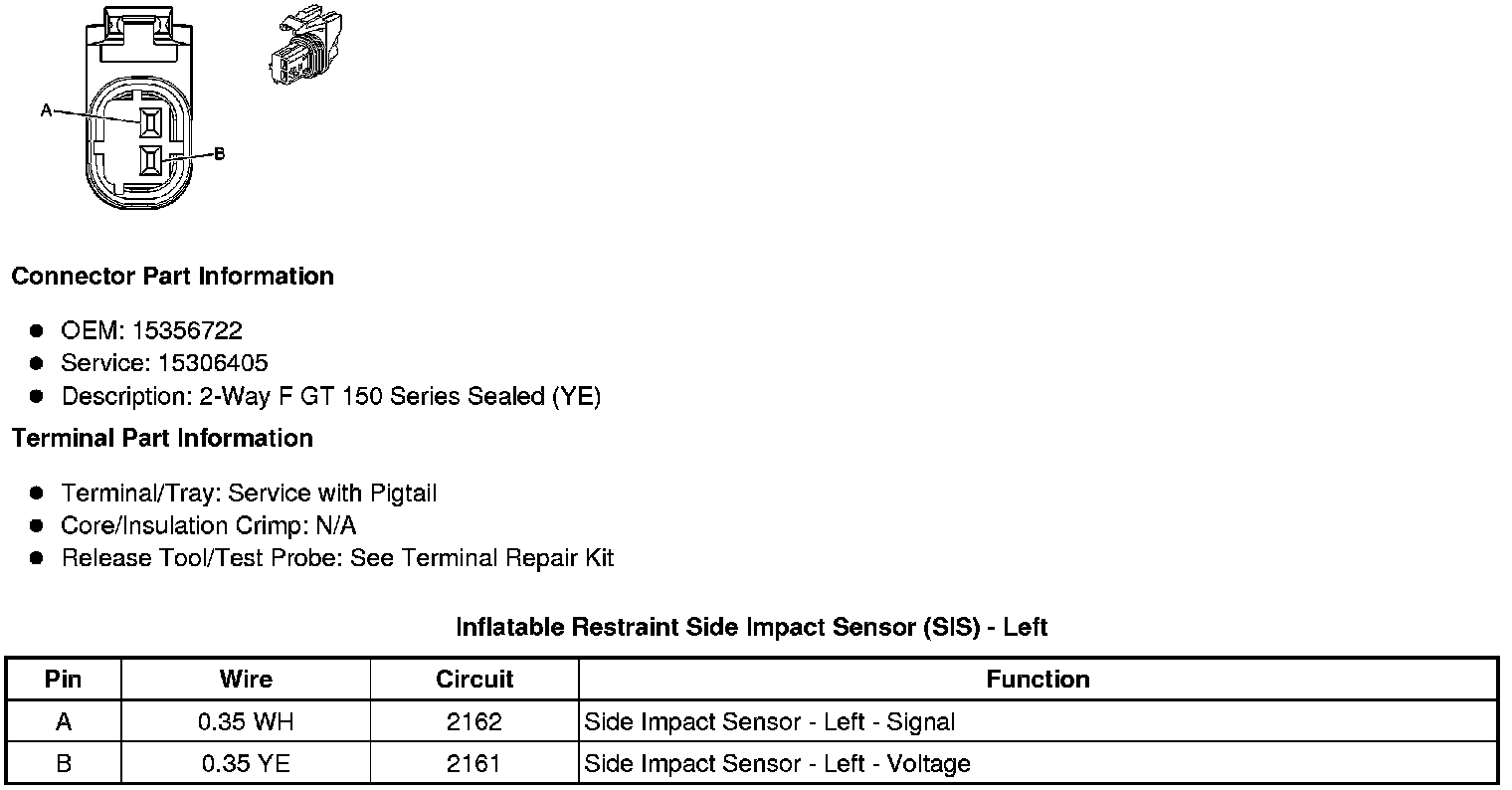

Inflatable Restraint Side Impact Sensor (SIS) - Left

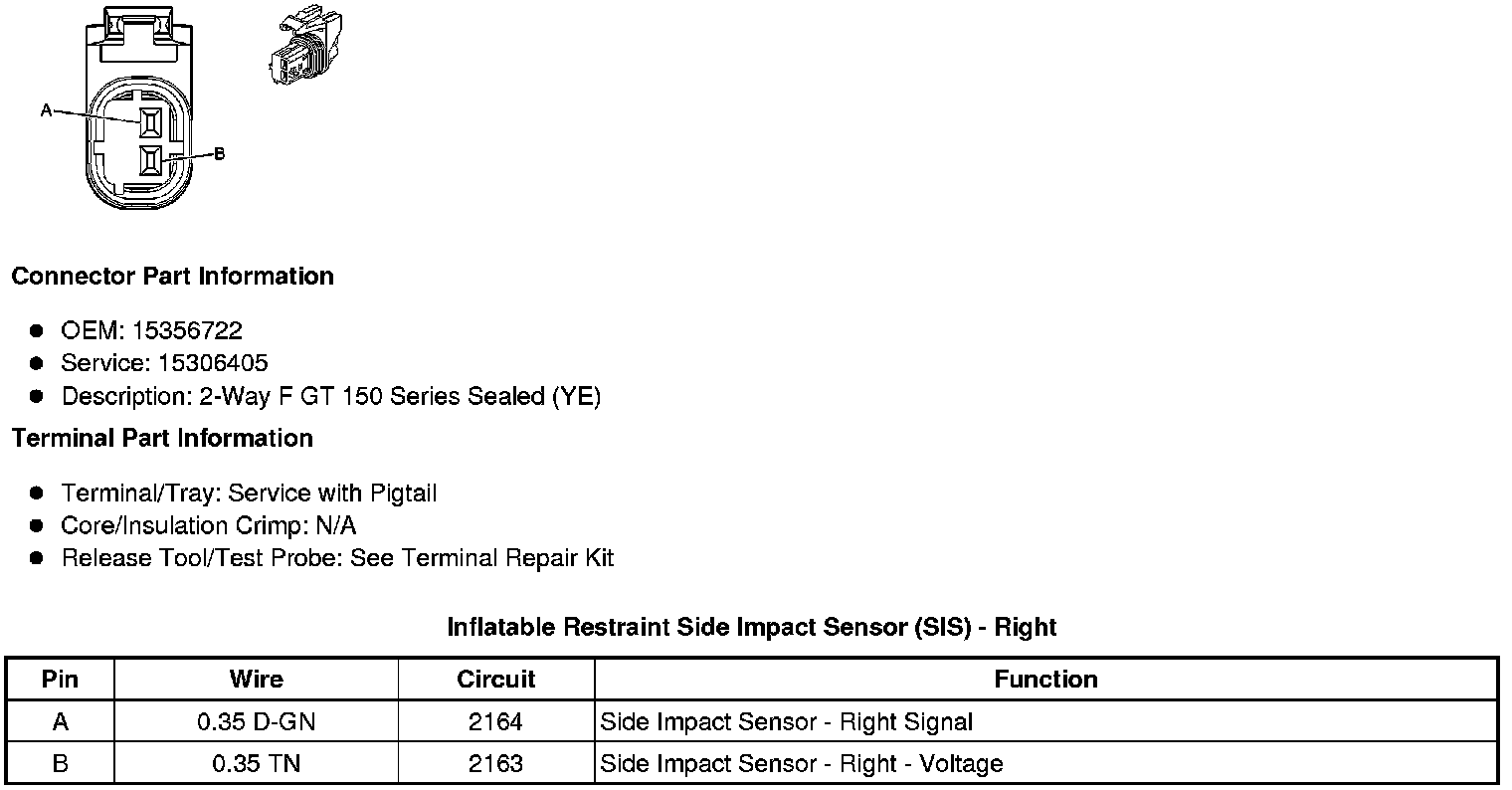

Inflatable Restraint Side Impact Sensor (SIS) - Right
