Outside temperature sensor

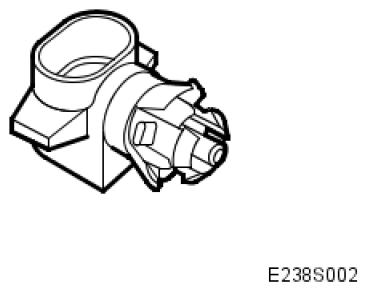

Fig 1: Identifying Outside Temperature Sensor

G05039039

Courtesy of SAAB-SCANIA OF AMERICA, INC.

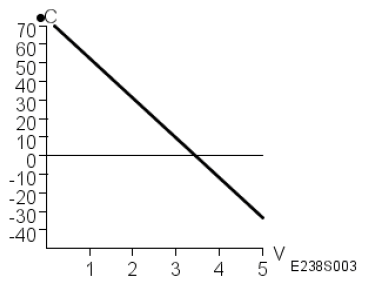

Fig 2: Outside Temperature Graph

G05039040

Courtesy of SAAB-SCANIA OF AMERICA, INC.

OUTSIDE TEMPERATURE SENSOR SPECIFICATIONS

Location		Front spoiler
Number of pins		2
°C (°F)	kohm	Volt
-40 (-40)	169.4	4.72
-30 (-22)	88.74	4.49
-20 (-4)	48.58	4.15
-10 (14)	27.67	3.67
0 (32)	16.33	3.10
10 (50)	9.951	2.49
20 (68)	5.246	1.72
30 (86)	4.028	1.43
40 (104)	2.663	1.05
50 (122)	1.801	0.76

Power supply 5 V through a 6.8 kohm resistor in the control module.
