Steering Wheel - Secondary/Programmable Control: Notes

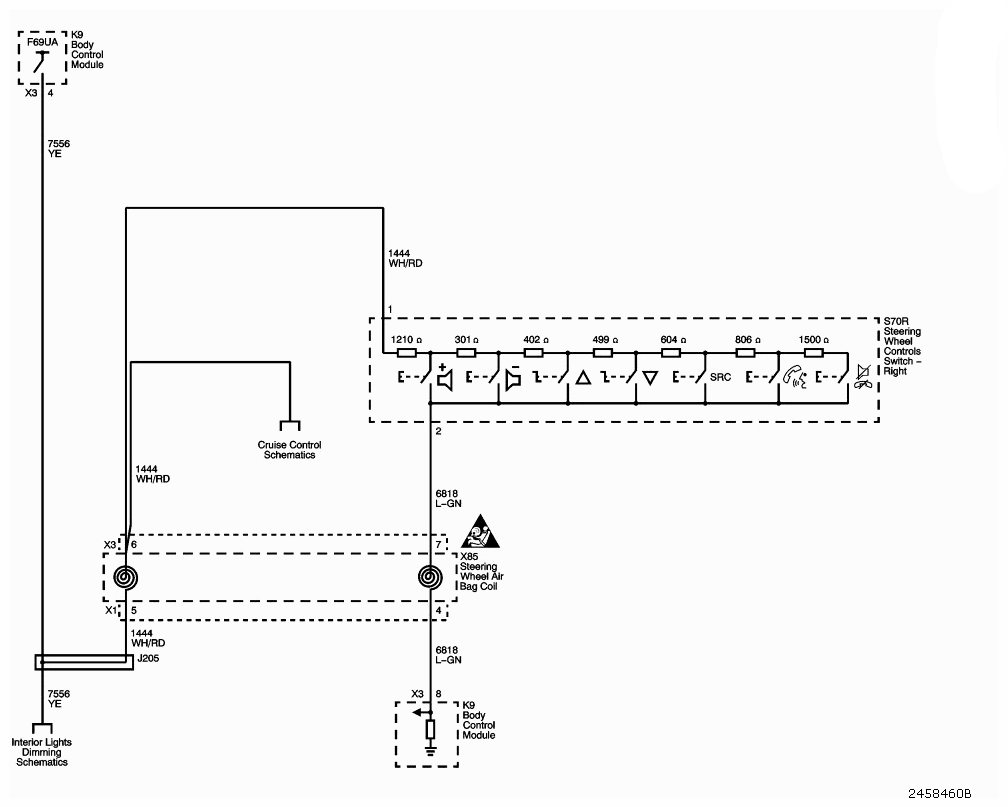

Fig 1: Steering Wheel - Secondary/Programmable Control - Wiring Diagram
G09435341Courtesy of SAAB-SCANIA OF AMERICA, INC.
