Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Location |
|---|---|

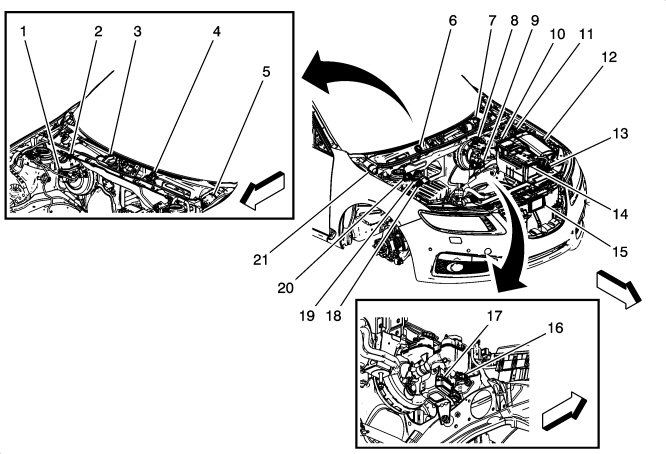

| Fuse Block - Battery (11) | Left rear of engine compartment. See Figure. |
| Fuse Block - Instrument Panel | Left end of dash. |
| Fuse Block - Rear Body | Left side of luggage compartment. |
| Fuse Block - Underhood (12) | Left side of engine compartment. See Figure. |

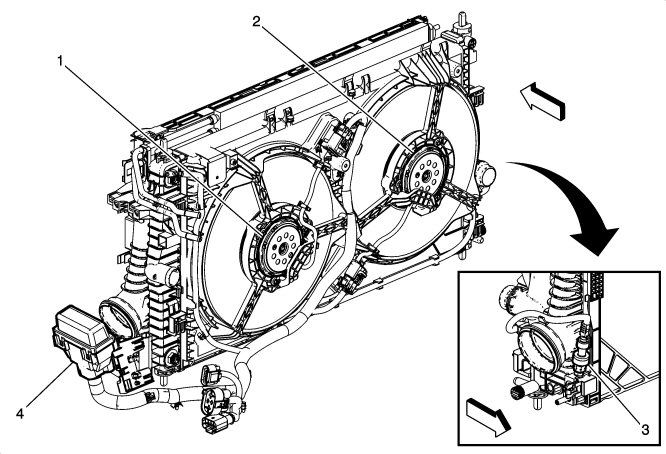

| Relay Block - Underhood (4) | Left front of engine compartment. See Figure. |
