Control Units
CONTROL UNITS
| Component | Location |
|---|---|
| Blower Motor Control Module | Right side of dash. |
| Body Control Module | Left end of dash. |
| Cruise Control Vehicle Distance Sensor Module (15) | Behind center of front grille. See Figure. |
| Electronic Brake Control Module (17) | Lower left rear of engine compartment. See Figure. |
| Engine Control Module | Right rear of engine compartment. |
| Fuel Pump Control Module | Right side of luggage compartment. |
| Headlamp Control Module | Left end of dash. |
| HVAC Control Module | Center of dash. |
| Immobilizer Control Module | Under center console. |
| Inflatable Restraint Sensing & Diagnostic Module | Front of center console. |
| Keyless Entry Control Module | Right kick panel. |
| Mobile Telephone Control Module | Center of dash. |
| Multimedia Player Interface Module | Right end of dash. |
| Parking Assist Control Module | Left side of luggage compartment. |
| Passenger Presence Detection Module | Under front passenger's seat. |
| Power Steering Control Module | Lower left side of dash. |
| Rear Differential Clutch Control Module | Mounted to rear differential. |
| Remote Control Door Lock Receiver | Above inside rearview mirror. |
| Seat Heating Control Module - Driver | Under driver's seat. |
| Seat Memory Control Module - Driver | Under driver's seat. |
| Steering Column Lock Control Module | On steering column. |
| Sunroof Control Module | Forward of sunroof. |
| Suspension Control Module | Left side of luggage compartment. |
| Telematics Communication Interface Control Module | Center of dash. |

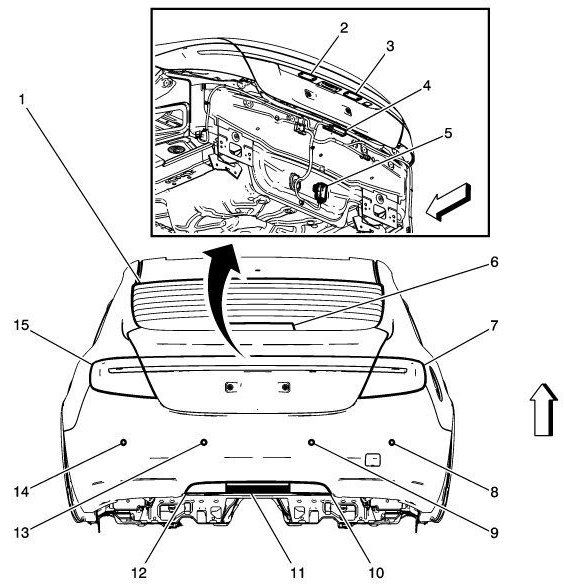

| Tire Pressure Indicator Module (5) | Center rear of luggage compartment. See Figure. |
| Transmission Control Module | Top of transmission. |
| Vehicle Direction Camera Control Module | Above headliner. |
