Installation Procedure

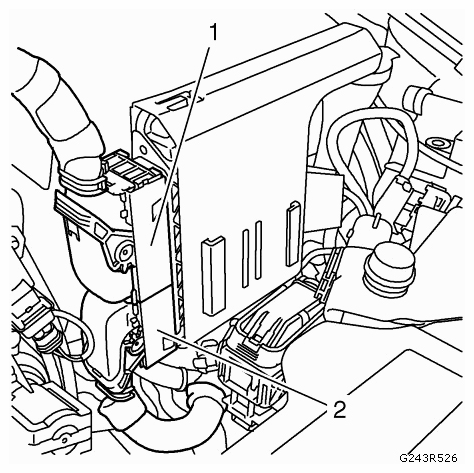

- Connect the engine wiring harness electrical connectors (1) to the ECM.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Connect the body wiring harness electrical connector (2) to the ECM.
- Position the ECM above the retainer in the battery tray and slide the ECM down into the retainer.
- Connect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION
.
- Reset the clock and preset radio stations.
- If a NEW ECM was installed, the ECM must be programmed. Refer to CONTROL MODULE REFERENCES
for programming and set up information.
