Fuel Tank Protector Replacement

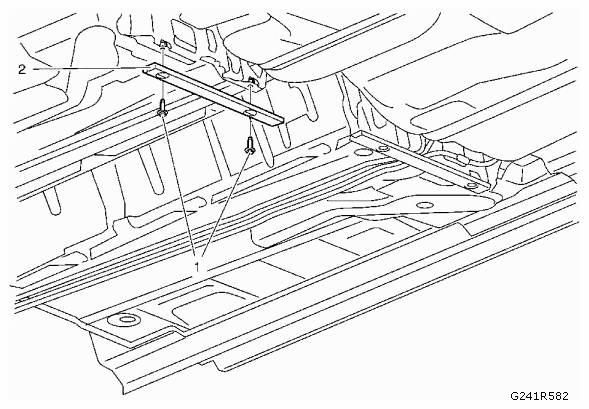

Fig 1: Identifying Fuel Tank Protector Fastener
G09407849Courtesy of SAAB-SCANIA OF AMERICA, INC.
Callout Component Name
1 Fuel Tank Protector Fastener (Qty: 2)
Refer to FASTENER CAUTION .
Tighten
58 Nm (43 lb ft)
2 Fuel Tank Protector
