AFL control module (752)

Location:  behind the left headlamp unit

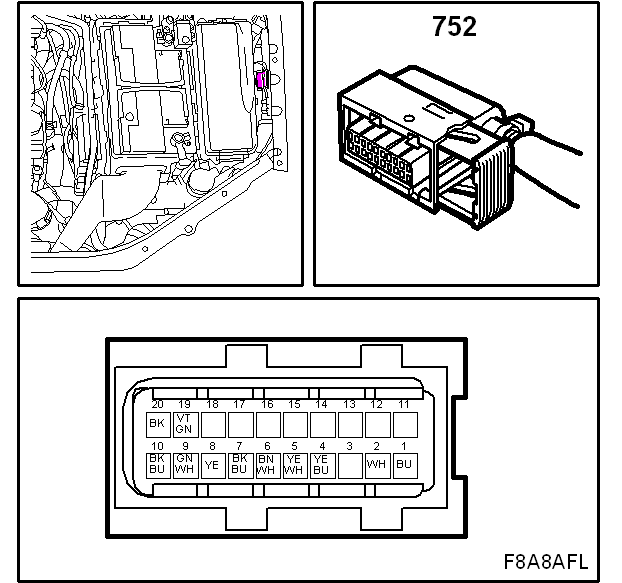

Fig 1: Identifying AFL Control Module (752) Connector Pinouts
G05571379Courtesy of SAAB-SCANIA OF AMERICA, INC.
