Crimp J5, front wiring harness: Notes

Location:  Approx. 270 mm from branching of grounding point G30 towards the right headlamp

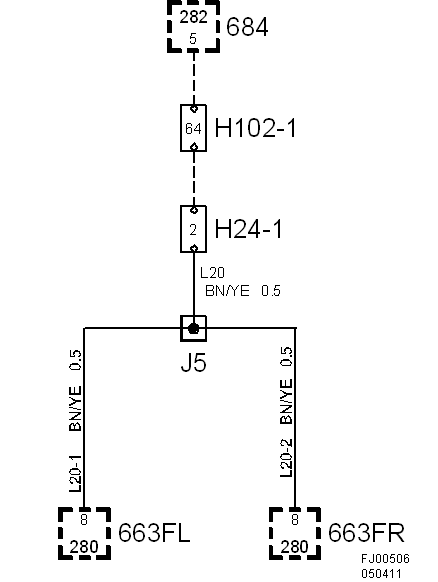

Fig 1: Crimp J5, Front Wiring Harness - Circuit Diagram
G05551351Courtesy of SAAB-SCANIA OF AMERICA, INC.
