Crimp connection J6, front harness: Notes

Location:  Approx. 130 mm from branching of grounding point G30 towards the right headlamp

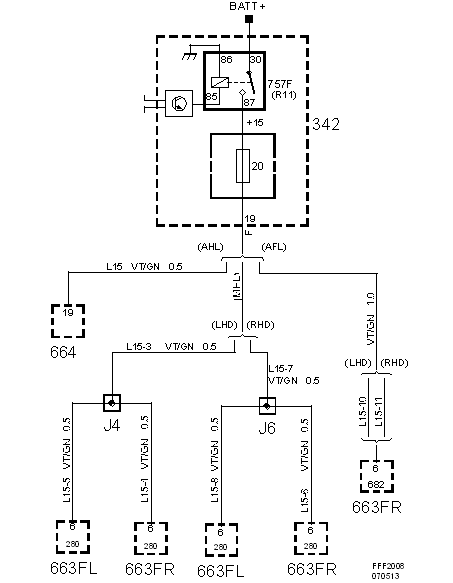

Fig 1: Crimp Connection J6, Front Harness - Circuit Diagram
G05551352Courtesy of SAAB-SCANIA OF AMERICA, INC.
