Front load angle sensor (704F)

Location:  by the left front axle

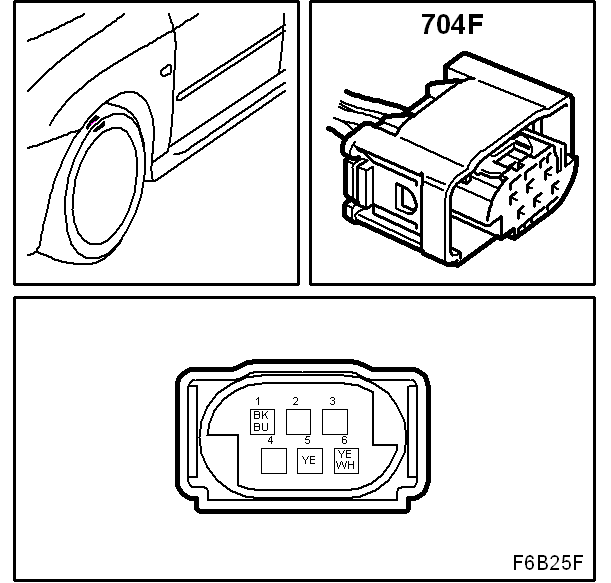

Fig 1: Identifying Front Load Angle Sensor (704F) Connector Pinouts
G05055470Courtesy of SAAB-SCANIA OF AMERICA, INC.
