Grounding point G30B: Notes

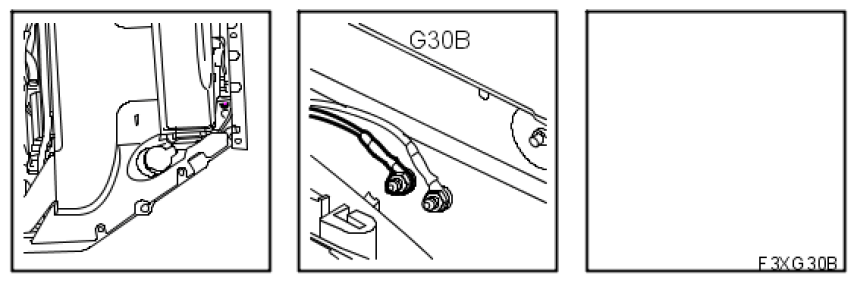

Fig 1: Identifying Grounding Point G30B

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Rear grounding point on side plate above front left wheel housing.

The grounding point is connected with grounding point G30A via crimp J2, underhood electrical center 342 and crimp J1.
