Grounding point G31: Notes

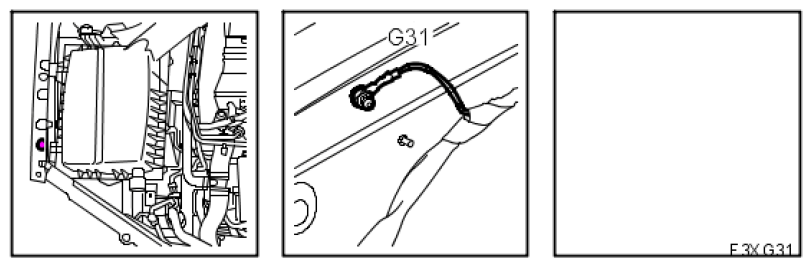

Fig 1: Identifying Grounding Point G31

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  In engine bay on side panel above right wheel housing

The grounding point is connected to grounding point G30A via crimp J9/J12, the underhood electrical center 342 and crimp J1.
