Rear load angle sensor

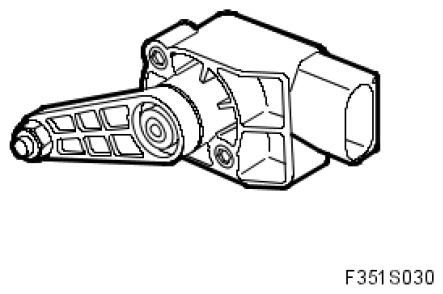

Fig 1: Identifying Rear Load Angle Sensor
G05055432Courtesy of SAAB-SCANIA OF AMERICA, INC.
REAR LOAD ANGLE SENSOR SPECIFICATION

Location Rear right on the subframe and lower transverse link
Make Hella
Number of pins 4
