Crimp J40, engine harness, Trionic: Notes

Location:  Approximately 190 mm from crankshaft position sensor branching point towards the engine control module

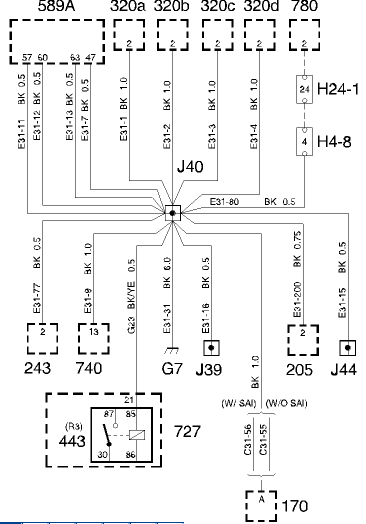

Fig 1: Crimp J40, Engine Harness, Trionic - Schematic
G06230118Courtesy of SAAB-SCANIA OF AMERICA, INC.
