Crimp J26, engine harness, Trionic: Notes

Location:  Approx. 170 mm from branching connector H24-2 towards the engine control module

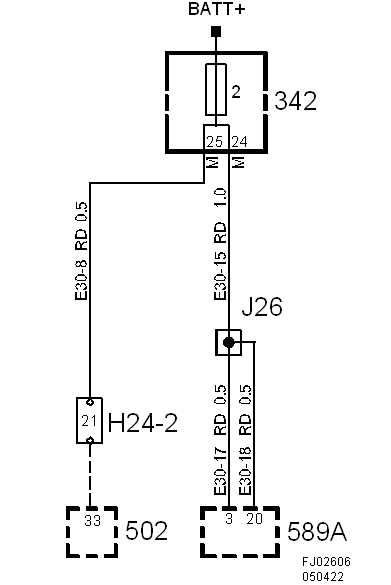

Fig 1: Crimp J26, Engine Harness, Trionic - Circuit Diagram
G06230731Courtesy of SAAB-SCANIA OF AMERICA, INC.
