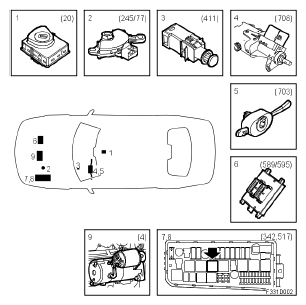

Starting system (SCL), main components
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Unit, ignition switch, ISM (20)
- Transmission range switch/immobilizer switch, automatic (245/77)
- Switch, coupling, immobilizer (411)
- Unit, steering column lock (SCL) (708)
- Column Integration Module, CIM (703a)
- Engine Control Module (ECM)
- Relay, +50 (517)
- Underhood Electrical center, UEC (342)
- Starter motor (4)
