To fit

  1. Fit the sensor with a new O-ring sparingly lubricated with Vaseline.

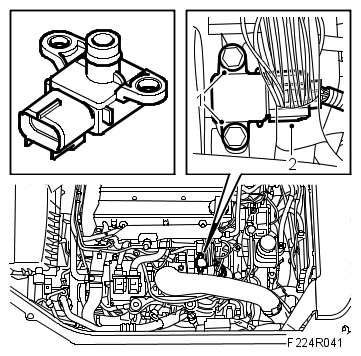

    Fig 1: Illustration For Steps 1-2
    G06230287Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Plug in the connector.
  3. Replace the upper engine cover.

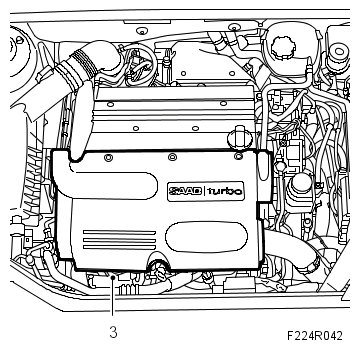

    Fig 2: Identifying Upper Engine Cover
    G06230288Courtesy of SAAB-SCANIA OF AMERICA, INC.
