Section 35 (Audio System With Navigation)
>>
Component Locator
>>
Unit, steering column assembly, (CIM) (703)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Unit, steering column assembly, (CIM) (703)
WARNING:
This page is about a different car, the 2009 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Location:
on the steering column below the steering wheel

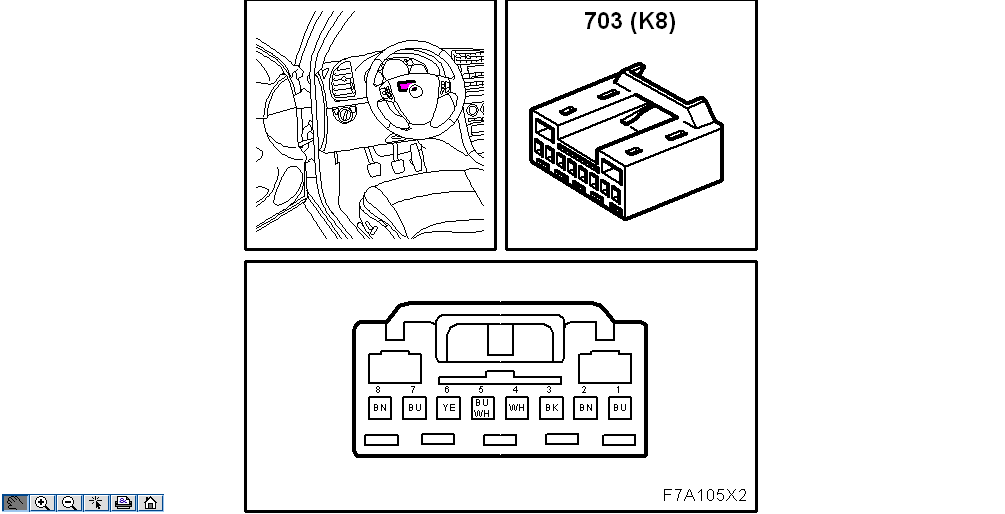

K8
Fig 1: Identifying Unit, Steering Column Assembly And Connector (703) - K8
Courtesy of SAAB-SCANIA OF AMERICA, INC.

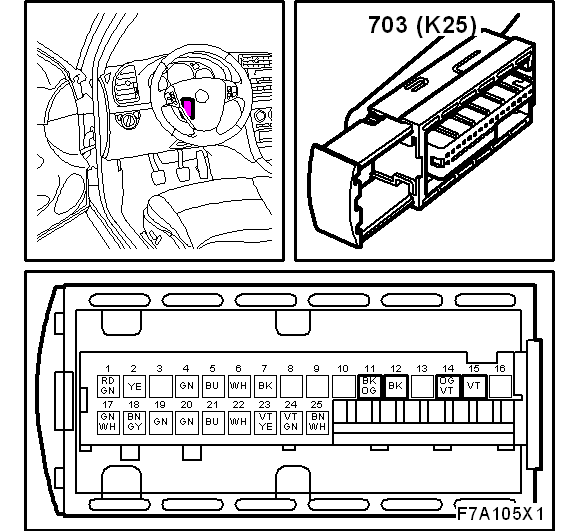

K25
Fig 2: Identifying Unit, Steering Column Assembly And Connector (703) - K25
Courtesy of SAAB-SCANIA OF AMERICA, INC.
