Primary Timing Chain Guide Installation - Upper

Primary Timing Chain Guide Installation - Upper

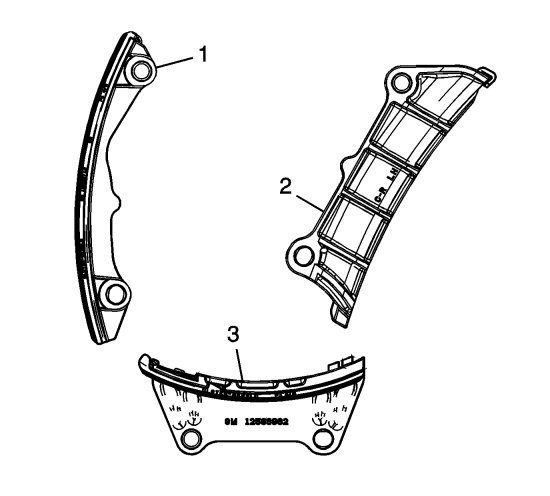

1. Ensure the upper primary camshaft drive chain guide (3) is being installed.





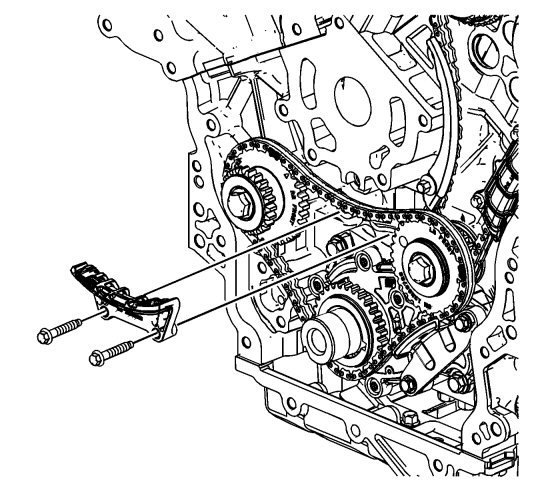

2. Install the upper primary camshaft drive chain guides.





3. Refer to Fastener Caution.

Install the upper primary camshaft drive chain guide bolts and tighten to 25 Nm (18 lb ft).
