Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

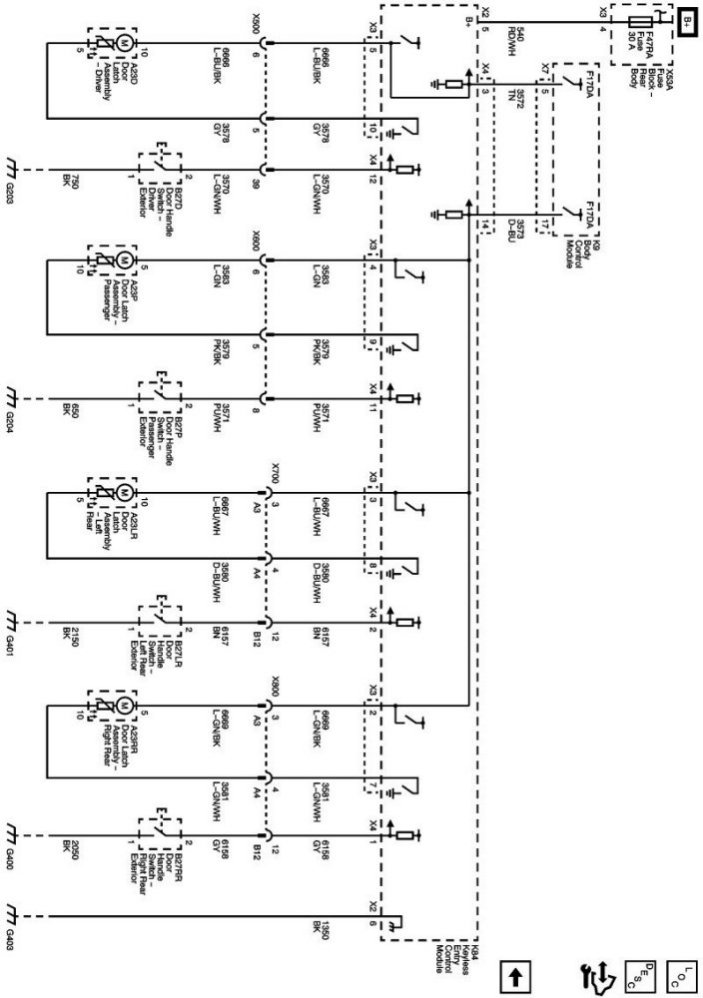

Door Ajar and Lock Status Control

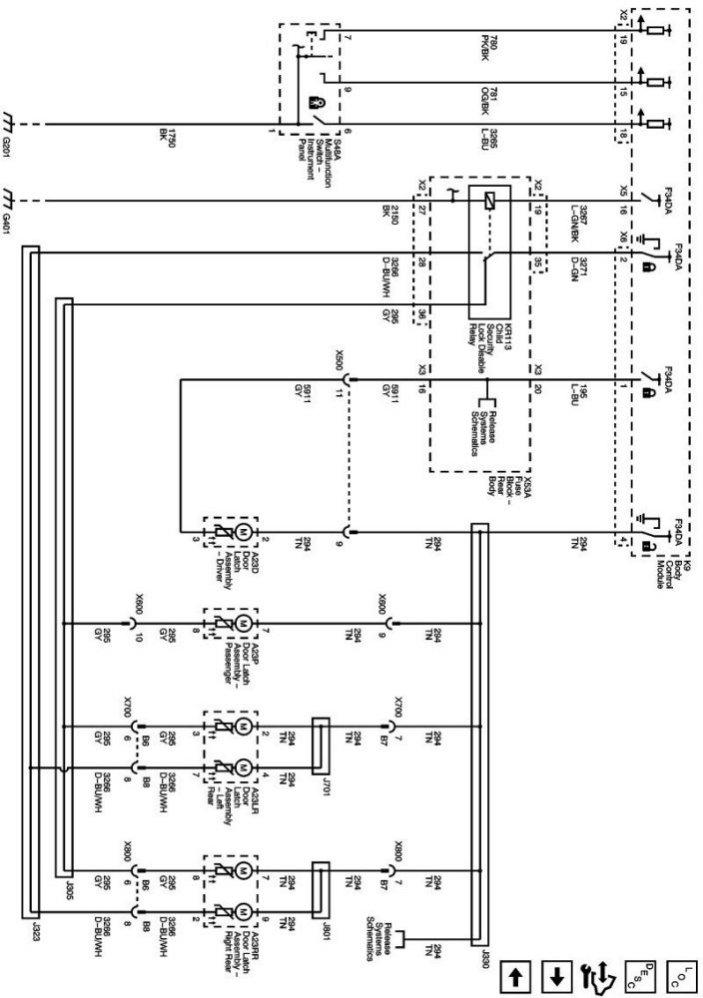

Door Locks (Except ATH)

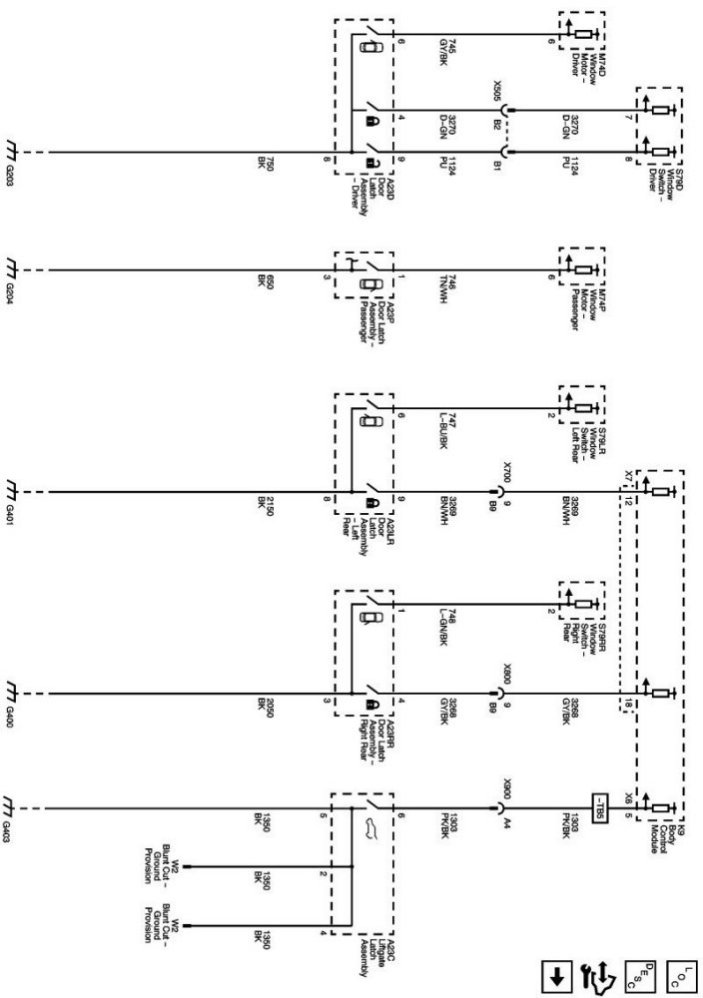

Door Locks (ATH)
