Remote Function Schematics



Remote Function Schematics

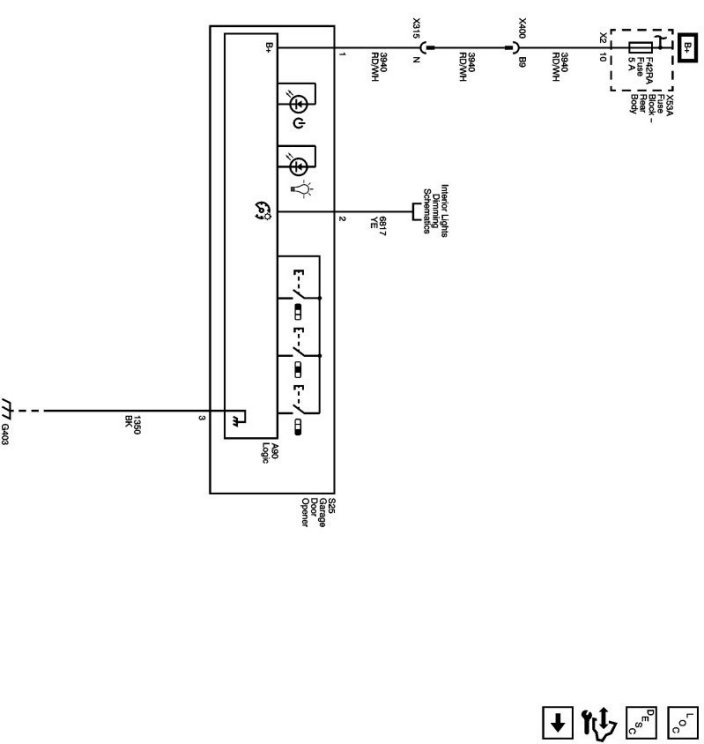

Garage Door Opener (UG1)

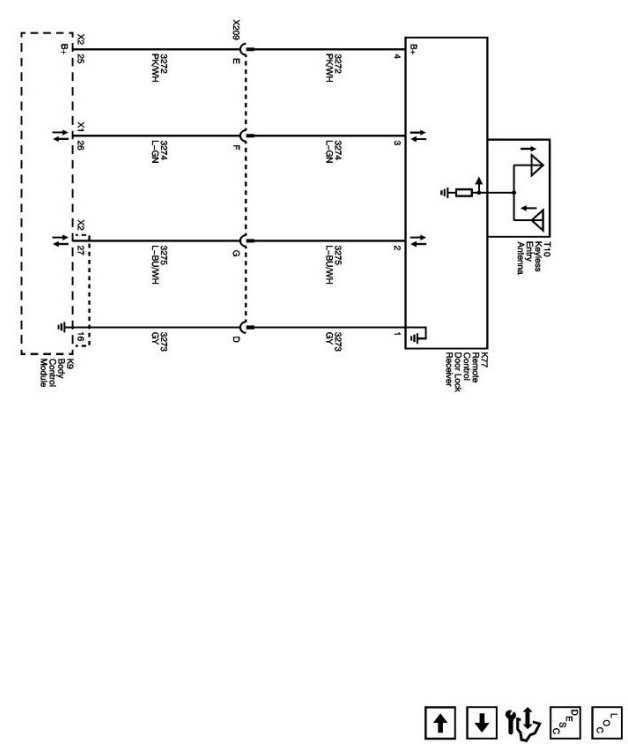

Remote Keyless Entry

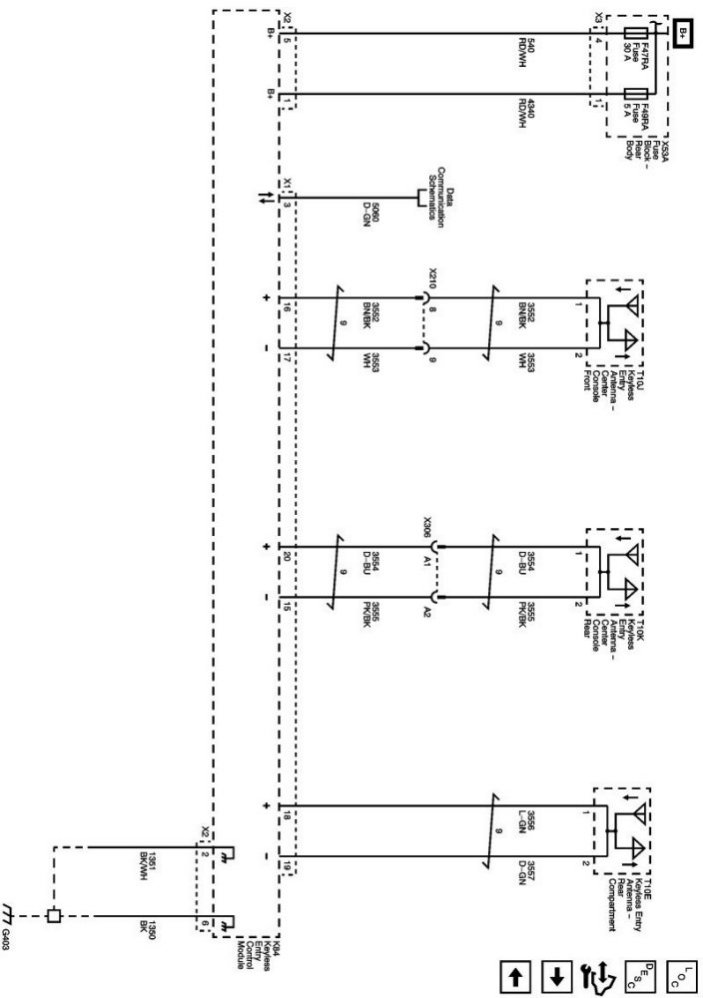

Passive Start

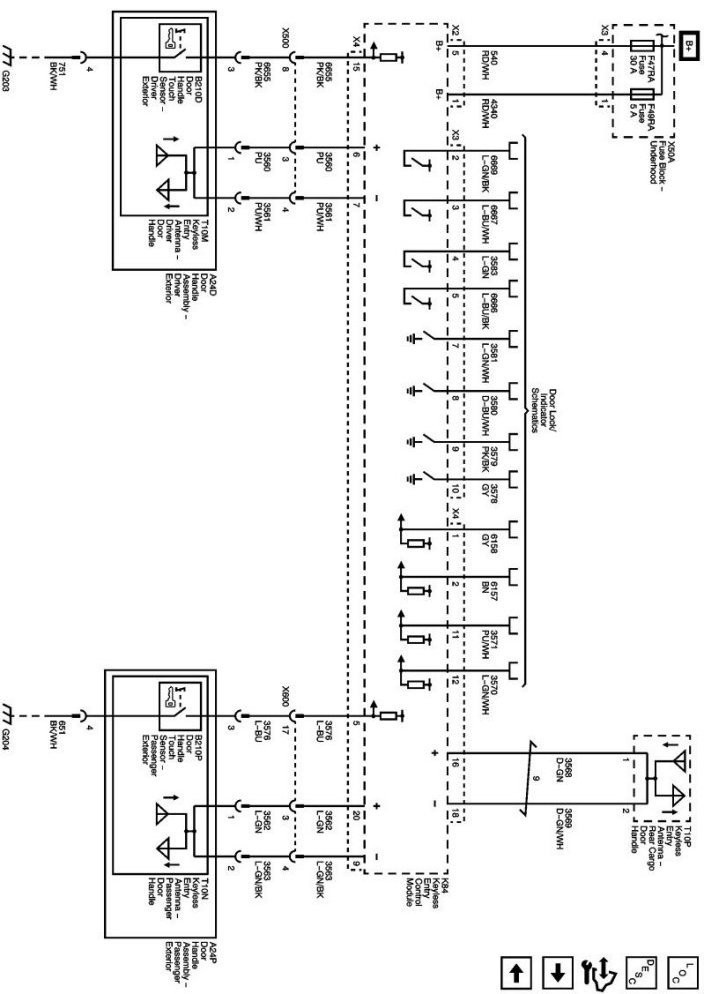

Passive Entry (ATH)
